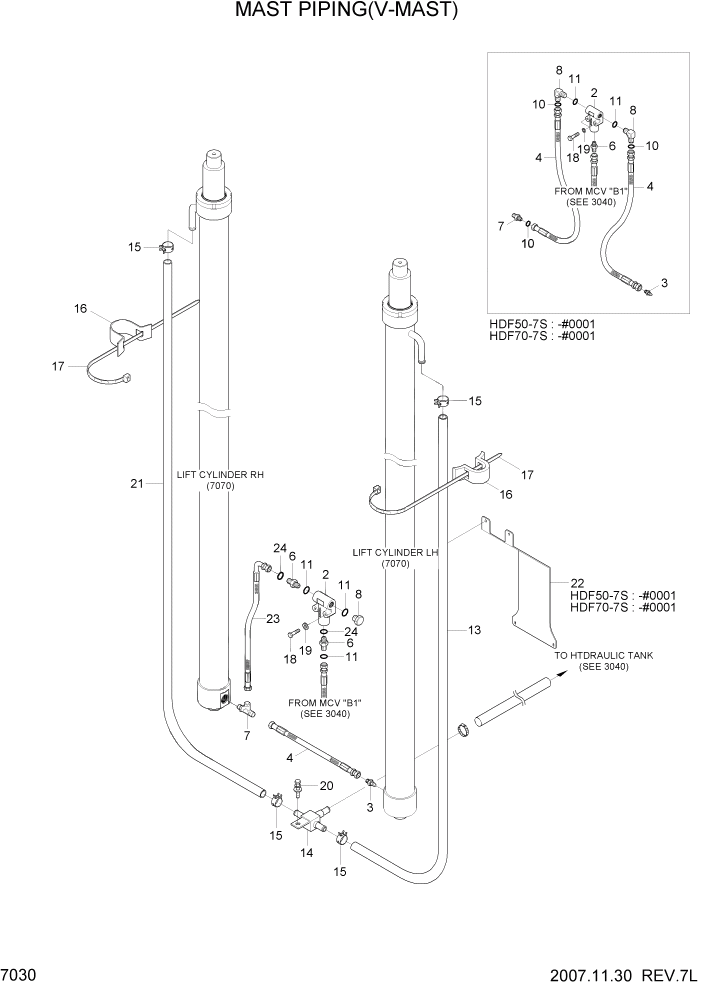

Запчасти Hyundai HDF50/HDF70-7S PAGE 7030 MAST HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

2

@

DOWN CONTROL VALVE

NOT

1шт.

3

31FQ-05200

DOWN SAFETY V/V

1шт.

4

P910-124014

HOSE ASSY-ORFS 0X0

HDF50-7S #0001

2шт.

4

P910-124013

HOSE ASSY-ORFS 0X0

HDF50-7S #0002

1шт.

4

P910-124014

HOSE ASSY-ORFS 0X0

HDF70-7S #0001

2шт.

4

P910-124013

HOSE ASSY-ORFS 0X0

HDF70-7S #0002

1шт.

6

X500-310005

CONNECTOR-ORFS

1шт.

7

X500-110004

CONNECTOR-ORFS

HDF50-7S #0001

1шт.

7

31FQ-80170

TEE

HDF50-7S #0002

1шт.

7

X500-110004

CONNECTOR-ORFS

HDF70-7S #0001

1шт.

7

31FQ-80170

TEE

HDF70-7S #0002

1шт.

8

31LF-30080

ELBOW-90

HDF50-7S #0001

2шт.

8

P220-310107

PLUG-HEX

HDF50-7S #0002

1шт.

8

31LF-30080

ELBOW-90

HDF70-7S #0001

2шт.

8

P220-310107

PLUG-HEX

HDF70-7S #0002

1шт.

10

S621-018001

O-RING(SEAL LOCK TYPE)

HDF50-7S #0001

3шт.

10

S621-018001

O-RING(SEAL LOCK TYPE)

HDF70-7S #0001

3шт.

11

S611-030001

O-RING

HDF50-7S #0001

1шт.

11

S611-030001

O-RING

HDF50-7S #0002

3шт.

11

S611-030001

O-RING

HDF70-7S #0001

1шт.

11

S611-030001

O-RING

HDF70-7S #0002

3шт.

12

S631-024004

O-RING

HDF50-7S #0001

1шт.

12

S631-024004

O-RING

HDF70-7S #0001

1шт.

13

31FF-81100

HOSE-RUBBER

V270

1шт.

13

31FF-81130

HOSE-RUBBER

V300

1шт.

13

31FF-81160

HOSE-RUBBER

V330

1шт.

13

31FF-81180

HOSE-RUBBER

V350

1шт.

13

31FF-81200

HOSE-RUBBER

V370

1шт.

13

31FF-81230

HOSE-RUBBER

V400

1шт.

13

31FF-81280

HOSE-RUBBER

V450

1шт.

13

31FF-81330

HOSE-RUBBER

V500

1шт.

13

31FF-81380

HOSE-RUBBER

V550

1шт.

13

31FF-81430

HOSE-RUBBER

V600

1шт.

14

31FQ-80010

TEE-RETURN

1шт.

15

S520-027000

CLAMP-HOSE

HDF50-7S #0058

4шт.

15

33HA-83400

HOSE-CLIP

HDF50-7S #0059

4шт.

15

S520-027000

CLAMP-HOSE

HDF70-7S #0313

4шт.

15

33HA-83400

HOSE-CLIP

HDF70-7S #0314

4шт.

16

31FB-80080

CLAMP-HOSE

6шт.

17

S552-102370

CLAMP-BAND

8шт.

18

S017-120756

BOLT-HEX

2шт.

19

S441-120006

WASHER-HARDENED

2шт.

20

S037-102526

BOLT W/WASHER-HEX

HDF50-7S #0001

1шт.

20

S037-102026

BOLT-W/WASHER

HDF50-7S #0002

1шт.

20

S037-102526

BOLT W/WASHER-HEX

HDF70-7S #0001

1шт.

20

S037-102026

BOLT-W/WASHER

HDF70-7S #0002

1шт.

21

31FF-81190

HOSE-RUBBER

V270

1шт.

21

31FF-81220

HOSE-RUBBER

V300

1шт.

21

31FF-81250

HOSE-RUBBER

V330

1шт.

21

31FF-81270

HOSE-RUBBER

V350

1шт.

21

31FF-81290

HOSE-RUBBER

V370

1шт.

21

31FF-81320

HOSE-RUBBER

V400

1шт.

21

31FF-81370

HOSE-RUBBER

V450

1шт.

21

31FF-81420

HOSE-RUBBER

V500

1шт.

21

31FF-81470

HOSE-RUBBER

V550

1шт.

21

31FF-81530

HOSE-RUBBER

V600

1шт.

22

33FQ-80081

COVER

HDF50-7S #0001

1шт.

22

33FQ-80081

COVER

HDF70-7S #0001

1шт.

23

31FQ-80160

HOSE ASSY-ORFS

HDF50-7S #0002

1шт.

23

31FQ-80160

HOSE ASSY-ORFS

HDF70-7S #0002

1шт.

24

S621-021001

O-RING

HDF50-7S #0002

2шт.

24

S621-021001

O-RING

HDF70-7S #0002

2шт.

25

31FQ-80180

CONNECTOR

HDF50-7S #0002

1шт.

25

31FQ-80180

CONNECTOR

HDF70-7S #0002

1шт.
