Запчасти Hyundai HDF50/HDF70-7S PAGE 6120 CABIN SUB MOUNTING(NEW) СТРУКТУРА

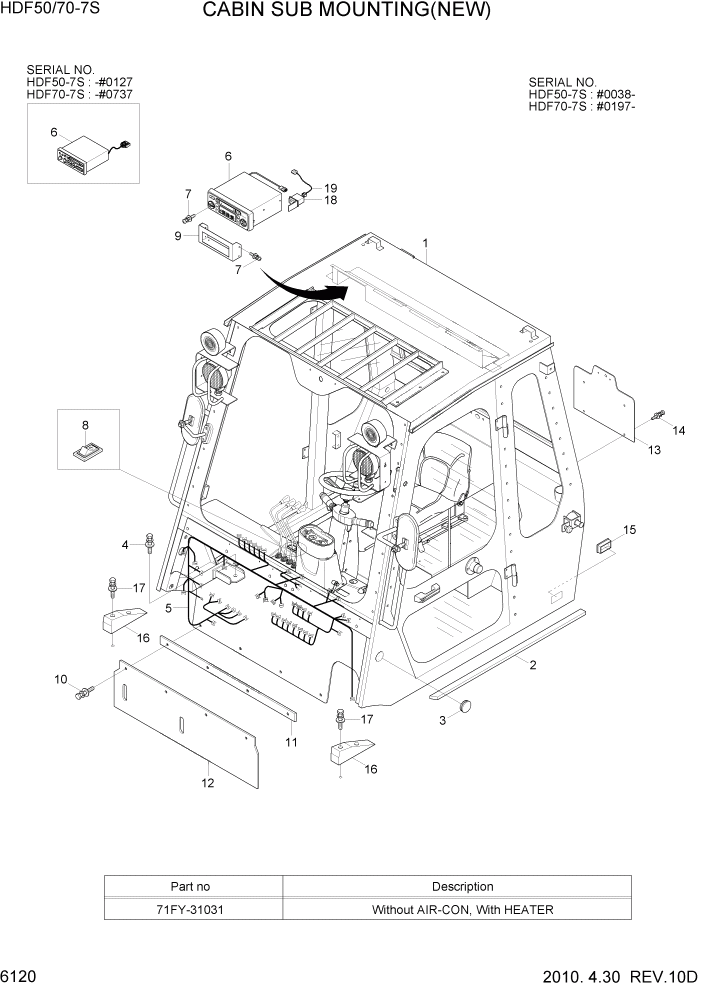

Схема запчастей Hyundai HDF50/HDF70-7S - PAGE 6120 CABIN SUB MOUNTING(NEW) СТРУКТУРА

Артикул

Название

Примечание

Количество

*

@

CABIN SUB MTG

NOT #0038

1шт.

*

@

CABIN SUB MTG

NOT #0197

1шт.

1

77FQ-35061

CABIN TOTAL SUB ASSY

5.0,WET,SINWHA

1шт.

1

77FQ-35061

CABIN TOTAL SUB ASSY

7.0,WET,SINWHA

1шт.

1

77FQ-35071

CABIN TOTAL SUB ASSY

5.0,DRY,SINWHA

1шт.

1

77FQ-35071

CABIN TOTAL SUB ASSY

7.0,DRY,SINWHA

1шт.

1

77FQ-55030

CABIN TOTAL SUB ASSY

HDF50-7S,WET #0060

1шт.

1

77FQ-35061

CABIN TOTAL SUB ASSY

HDF70-7S,WET #0315

1шт.

1

77FQ-55030

CABIN TOTAL SUB ASSY

HDF70-7S,WET #0316

1шт.

1

77FQ-55031

CABIN TOTAL SUB ASSY

5.0,WET,SAMWOO #0060

1шт.

1

77FQ-55031

CABIN TOTAL SUB ASSY

7.0,WET,SAMWOO #0331

1шт.

1

77FQ-35071

CABIN TOTAL SUB ASSY

HDF50-7S,DRY #0059

1шт.

1

77FQ-55041

CABIN TOTAL SUB ASSY

5.0,DRY,SAMWOO #0060

1шт.

1

77FQ-35071

CABIN TOTAL SUB ASSY

HDF70-7S,DRY #0315

1шт.

1

77FQ-55041

CABIN TOTAL SUB ASSY

7.0,DRY,SAMWOO #0331

1шт.

2

F14130110

SEAL-RUBBER

2шт.

3

FHC0904100

RUBBER-STAY

4шт.

4

S037-122526

BOLT-W/WASHER

4шт.

5

21FQ-10912

HARNESS-DASHBOARD

1шт.

6

21N8-50020

CASSETTE RADIO ASSY

HDF50-7S #0126

1шт.

6

21N8-50060

CASSETTE RADIO ASSY

HDF50-7S #0127 - #0127

1шт.

6

21N8-51000

RADIO/USB PLAYER ASSY

HDF50-7S #0128

1шт.

6

21N8-50020

CASSETTE RADIO ASSY

HDF70-7S #0704

1шт.

6

21N8-50060

CASSETTE RADIO ASSY

HDF70-7S #0705 - #0737

1шт.

6

21N8-51000

RADIO/USB PLAYER ASSY

HDF70-7S #0738

1шт.

7

S131-051046

SCREW-W/WASHER

8шт.

8

21L7-03080

SWITCH-WIPER WASHER

1шт.

9

71FQ-50440

COVER-RADIO

1шт.

10

S035-082026

BOLT-W/WASHER

4шт.

11

77FQ-30920

RUBBER-PLATE

1шт.

12

77FQ-30930

PLATE

1шт.

13

71FQ-10810

LICENSE PLATE

HDF50-7S #0060

1шт.

13

71FQ-10810

LICENSE PLATE

HDF70-7S #0331

1шт.

14

S035-081526

BOLT-W/WASHER

HDF50-7S #0060

2шт.

14

S035-081526

BOLT-W/WASHER

HDF70-7S #0331

2шт.

15

71FY-31031

CAP-RUBBER

50,SEE ILLUST #0082

1шт.

15

71FY-31031

CAP-RUBBER

70,SEE ILLUST #0510

1шт.

16

77FQ-30891

CUSHION-RUBBER

HDF50-7S #0117

2шт.

16

77FQ-30891

CUSHION-RUBBER

HDF70-7S #0673

2шт.

17

S035-082026

BOLT-W/WASHER

HDF50-7S #0117

4шт.

17

S035-082026

BOLT-W/WASHER

HDF70-7S #0673

4шт.

17

S035-082026

BOLT-W/WASHER

HDF70-7S #0673

4шт.

18

21LM-31200

USB & SOCKET ASSY

HDF50-7S #0128

1шт.

18

21LM-31200

USB & SOCKET ASSY

HDF70-7S #0738

1шт.

19

21FV-36910

HARNESS-USB SOCKET

HDF50-7S #0128

1шт.

19

21FV-36910

HARNESS-USB SOCKET

HDF70-7S #0738

1шт.

Выбрано товаров: 46
