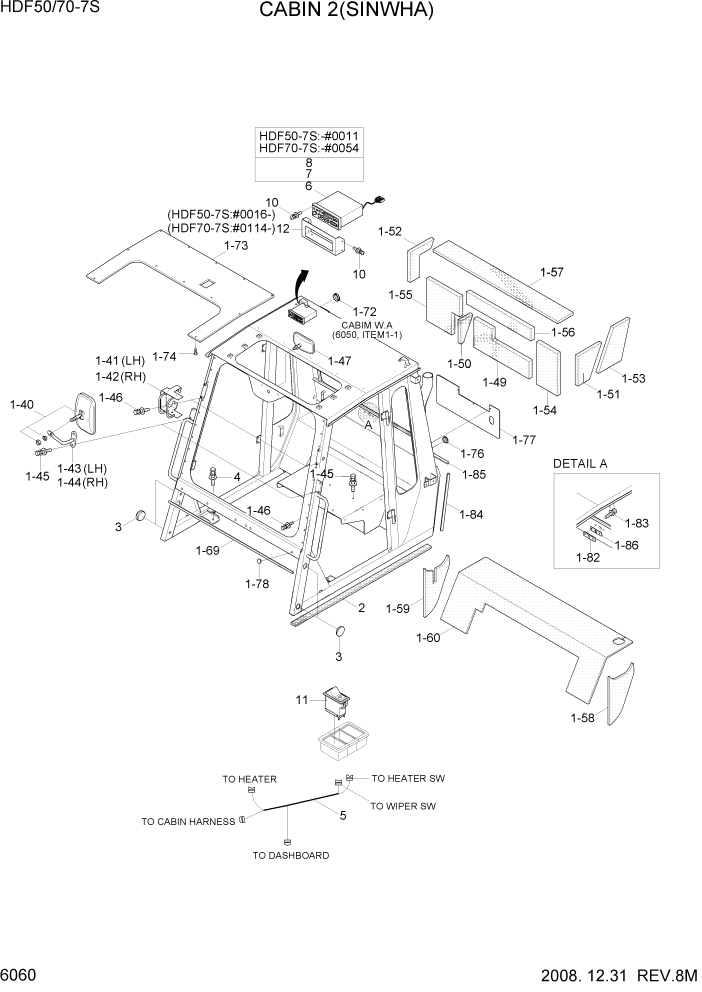

Запчасти Hyundai HDF50/HDF70-7S PAGE 6060 CABIN 2(SINWHA) СТРУКТУРА

*

@

CABIN ASSY

NOT

1шт.

*

@

CABIN ASSY

NOT

1шт.

1

@

CABIN ASSY

NOT

1шт.

1-4

71N8-46000

MIRROR

2шт.

1-41

71FF-30470

PROTECTOR-LH

1шт.

1-42

71FF-30460

PROTECTOR-RH

1шт.

1-43

71FF-30091

STAY-MIRROR,LH

HDF50-7S #0015

1шт.

1-43

71FQ-52010

STAY-MIRROR(LH)

HDF50-7S #0016

1шт.

1-43

71FF-30091

STAY-MIRROR,LH

HDF70-7S #0113

1шт.

1-43

71FQ-52010

STAY-MIRROR(LH)

HDF70-7S #0114

1шт.

1-44

71FF-30101

STAY-MIRROR,RH

1шт.

1-45

S035-082022

BOLT-W/WASHER

HDF50-7S #0001

4шт.

1-45

S035-082026

BOLT-W/WASHER

HDF50-7S #0002

11шт.

1-45

S035-082022

BOLT-W/WASHER

HDF70-7S #0001

4шт.

1-45

S035-082026

BOLT-W/WASHER

HDF70-7S #0002

11шт.

1-46

S035-081522

BOLT-W/WASHER

HDF50-7S #0001

4шт.

1-46

S035-081522

BOLT-W/WASHER

HDF50-7S #0002

10шт.

1-46

S035-081522

BOLT-W/WASHER

HDF70-7S #0001

4шт.

1-46

S035-081522

BOLT-W/WASHER

HDF70-7S #0002

10шт.

1-47

71L1-3377

MIRROR-ROOM

1шт.

1-49

71FQ-30300

SPONGE

1шт.

1-5

71FQ-30310

SPONGE

1шт.

1-51

71FQ-30320

SPONGE(LH)

1шт.

1-52

71FQ-30330

SPONGE(RH)

1шт.

1-53

71FQ-30340

SPONGE

1шт.

1-54

71FQ-30350

SPONGE

1шт.

1-55

71FQ-30360

SPONGE

1шт.

1-56

71FQ-30370

SPONGE

HDF50-7S #0001

1шт.

1-56

71FQ-30370

SPONGE

HDF70-7S #0001

1шт.

1-57

71FQ-30380

SPONGE

1шт.

1-58

71FQ-51190

INSULATION FORM

1шт.

1-59

71FQ-51200

INSULATION FORM

1шт.

1-6

71FQ-51210

INSULATION FORM

1шт.

1-69

S771-013500

WEATHER STRIP

1шт.

1-72

ED03020000

GROMMET

1шт.

1-73

71FQ-51230

ROOF-LINING

1шт.

1-74

71FE-51220

SCREW

12шт.

1-76

71EM-51580

CAP-STUD BOLT

15шт.

1-77

71FQ-10530

PLATE

1шт.

1-78

71FQ-51240

CAP-RUBBER

6шт.

1-82

71FQ-30410

PLATE

HDF50-7S #0012 - #0116

1шт.

1-82

71FQ-30411

PLATE

HDF50-7S #0117

1шт.

1-82

71FQ-30410

PLATE

HDF70-7S #0055 - #0672

1шт.

1-82

71FQ-30411

PLATE

HDF70-7S #0673

1шт.

1-83

S035-062546

BOLT-W/WASHER

HDF50-7S #0012

2шт.

1-83

S035-062546

BOLT-W/WASHER

HDF70-7S #0055

2шт.

1-84

S771-009800

WEATHER STRIP

HDF50-7S #0012 - #0116

2шт.

1-84

S771-013300

WEATHER STRIP

HDF50-7S #0117

1шт.

1-84

S771-009800

WEATHER STRIP

HDF70-7S #0055 - #0672

2шт.

1-84

S771-013300

WEATHER STRIP

HDF70-7S #0673

1шт.

1-85

S771-003500

WEATHER STRIP

HDF50-7S #0012 - #0116

1шт.

1-85

77FQ-30200

RUBBER

HDF50-7S #0117

1шт.

1-85

S771-003500

WEATHER STRIP

HDF70-7S #0055 - #0672

1шт.

1-85

77FQ-30200

RUBBER

HDF70-7S #0673

1шт.

2

F14130110

SEAL-RUBBER

2шт.

3

FHC0904100

RUBBER-STAY

4шт.

4

S037-122522

BOLT-W/WASHER

4шт.

5

21FQ-10910

HARNESS-DASHBOARD

HDF50-7S #0011

1шт.

5

21FQ-10912

HARNESS-DASHBOARD

HDF50-7S #0012

1шт.

5

21FQ-10910

HARNESS-DASHBOARD

HDF70-7S #0054

1шт.

5

21FQ-10912

HARNESS-DASHBOARD

HDF70-7S #0055

1шт.

6

21E9-20310

CASSETTE RADIO

USA,HDF50-7S #0011

1шт.

6

21N8-50020

CASSETTE RADIO ASSY

HDF50-7S #0012 - #0126

1шт.

6

21N8-50060

CASSETTE RADIO ASSY

HDF50-7S #0127 - #0127

1шт.

6

21N8-51000

RADIO/USB PLAYER ASSY

HDF50-7S #0128

1шт.

6

21E9-20310

CASSETTE RADIO

USA,HDF70-7S #0054

1шт.

6

21N8-50020

CASSETTE RADIO ASSY

HDF70-7S #0055 - #0704

1шт.

6

21N8-50060

CASSETTE RADIO ASSY

HDF70-7S #0705 - #0737

1шт.

6

21N8-51000

RADIO/USB PLAYER ASSY

HDF70-7S #0738

1шт.

7

21E9-20320

CASSETTE RADIO

EU,HDF50-7S #0011

1шт.

7

21E9-20320

CASSETTE RADIO

EU,HDF70-7S #0054

1шт.

8

21E9-20330

CASSETTE RADIO

GENERAL,HDF50-7 #0011

1шт.

8

21E9-20330

CASSETTE RADIO

GENERAL,HDF70-7 #0054

1шт.

10

S131-051046

SCREW-W/WASHER

HDF50-7S #0015

4шт.

10

S131-051046

SCREW-W/WASHER

HDF50-7S #0016

8шт.

10

S131-051046

SCREW-W/WASHER

HDF70-7S #0113

4шт.

10

S131-051046

SCREW-W/WASHER

HDF70-7S #0114

8шт.

11

21L7-03080

SWITCH-WIPER WASHER

1шт.

12

71FQ-50440

COVER-RADIO

HDF50-7S #0016

1шт.

12

71FQ-50440

COVER-RADIO

HDF70-7S #0114

1шт.
