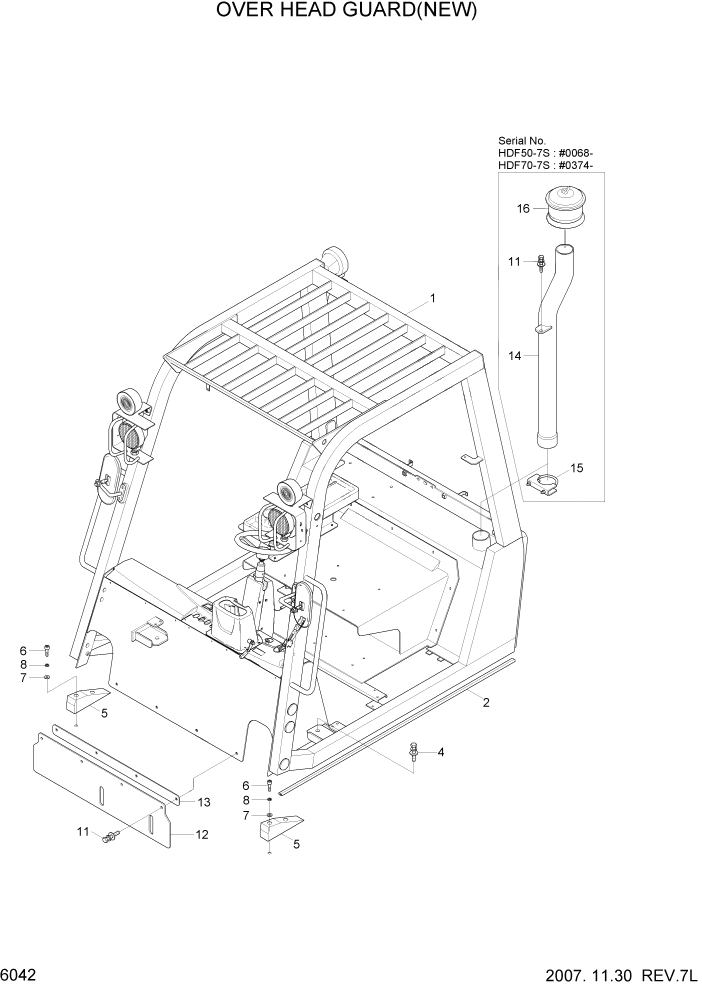

Запчасти Hyundai HDF50/HDF70-7S PAGE 6042 OVER HEAD GUARD(NEW) СТРУКТУРА

*

@

OVER HEAD GUARD

NOT #0038

1шт.

*

@

OVER HEAD GUARD

NOT #0197

1шт.

1

77FQ-35020

HEAD GUARD TOTAL SUB

WET,5.0,SEE6043 #0038 - #0041

1шт.

1

77FQ-35021

HEAD GUARD TOTAL SUB

WET,5.0,SEE6043 #0042 - #0067

1шт.

1

77FQ-35022

HEAD GUARD TOTAL SUB

WET,5.0,SEE6043 #0068

1шт.

1

77FQ-35020

HEAD GUARD TOTAL SUB

WET,7.0,SEE6043 #0197 - #0206

1шт.

1

77FQ-35021

HEAD GUARD TOTAL SUB

WET,7.0,SEE6043 #0207 - #0373

1шт.

1

77FQ-35022

HEAD GUARD TOTAL SUB

WET,7.0,SEE6043 #0374

1шт.

1

77FQ-35030

HEAD GUARD TOTAL SUB

DRY,5.0,SEE6043 #0038 - #0041

1шт.

1

77FQ-35031

HEAD GUARD TOTAL SUB

DRY,5.0,SEE6043 #0042 - #0067

1шт.

1

77FQ-35032

HEAD GUARD TOTAL SUB

DRY,5.0,SEE6043 #0068

1шт.

1

77FQ-35030

HEAD GUARD TOTAL SUB

DRY,7.0,SEE6043 #0197 - #0206

1шт.

1

77FQ-35031

HEAD GUARD TOTAL SUB

DRY,7.0,SEE6043 #0207 - #0373

1шт.

1

77FQ-35032

HEAD GUARD TOTAL SUB

DRY,7.0,SEE6043 #0374

1шт.

2

77FQ-30950

SEAL-RUBBER

2шт.

4

S037-122526

BOLT-W/WASHER

4шт.

5

77FQ-30891

CUSHION-RUBBER

2шт.

6

S035-082026

BOLT-W/WASHER

4шт.

7

S403-08200B

WASHER-PLAIN

4шт.

8

S411-080006

WASHER-SPRING

4шт.

11

S035-082026

BOLT-W/WASHER

HDF50-7S #0067

4шт.

11

S035-082026

BOLT-W/WASHER

HDF50-7S #0068

5шт.

11

S035-082026

BOLT-W/WASHER

HDF70-7S #0373

4шт.

11

S035-082026

BOLT-W/WASHER

HDF70-7S #0374

5шт.

12

77FQ-30920

RUBBER-PLATE

1шт.

13

77FQ-30930

PLATE

1шт.

14

11FQ-20081

PIPE WA

HDF50-7S #0068

1шт.

14

11FQ-20081

PIPE WA

HDF70-7S #0374

1шт.

15

S170-760006

U-BOLT

HDF50-7S #0068

1шт.

15

S170-760006

U-BOLT

HDF70-7S #0374

1шт.

16

11FF-20030

PRECLEANER

HDF50-7S #0068

1шт.

16

11FF-20030

PRECLEANER

HDF70-7S #0374

1шт.
