Запчасти Hyundai HDF50/HDF70-7S PAGE 6030 OUTER PANEL 2(OLD) СТРУКТУРА

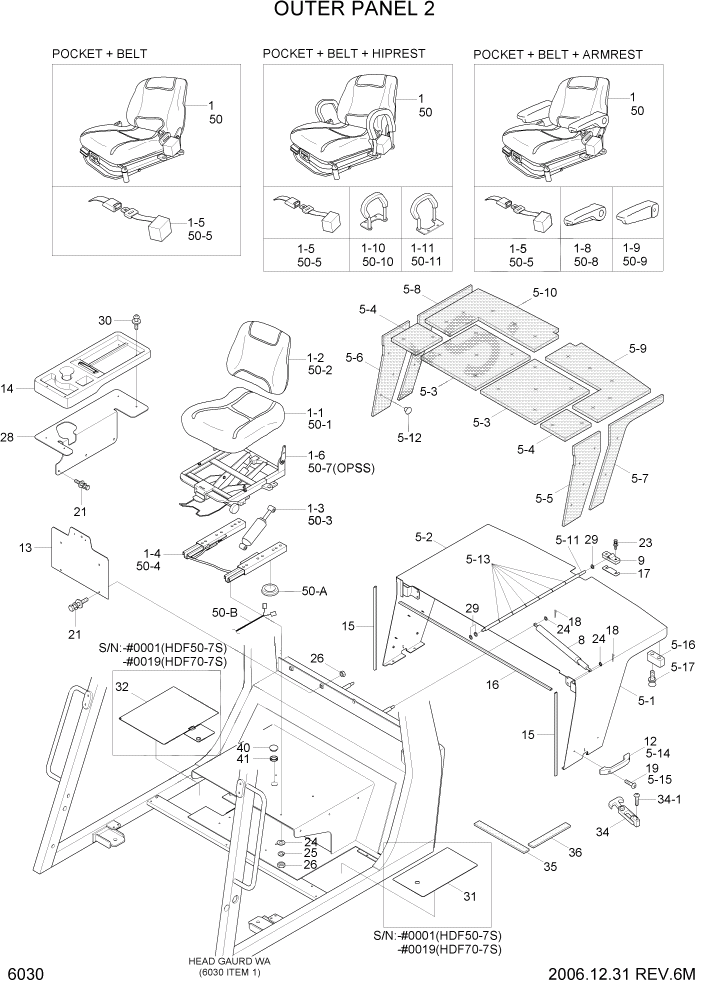

Схема запчастей Hyundai HDF50/HDF70-7S - PAGE 6030 OUTER PANEL 2(OLD) СТРУКТУРА

Артикул

Название

Примечание

Количество

*

@

BODY

NOT #0037

1шт.

*

@

BODY

NOT #0196

1шт.

1

71FG-10520

SEAT ASSY(PKT)

PKT

1шт.

1

71FG-10530

SEAT ASSY(PKT+BT)

PKT+BT

1шт.

1

71FG-10540

SEAT ASSY(PKT+BT+AR)

PKT+BT+AR

1шт.

1

71FG-10550

SEAT ASSY(PKT+BT+HR)

PKT+BT+HR

1шт.

1

71FG-10550

SEAT ASSY(PKT+BT+HR)

PKT+BT+HR

1шт.

1-1

H31013-100

CUSION ASSY

#0001

1шт.

1-2

H31013-200

BACK ASSY

#0001

1шт.

1-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

1-4

H31013-600

SIDE TRACK ASSY

#0001

1шт.

1-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

1-6

H31023-300

SUSPENSION ASSY

#0001

1шт.

1-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

1-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

1-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0001

1шт.

1-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0001

1шт.

5

71FQ-10701

RADIATOR COVER SUB

HDF50-7S #0001

1шт.

5

71FQ-10702

RADIATOR COVER SUB

HDF50-7S #0002

1шт.

5

71FQ-10701

RADIATOR COVER SUB

HDF70-7S #0001

1шт.

5

71FQ-10702

RADIATOR COVER SUB

HDF70-7S #0002

1шт.

5-1

71FQ-10172

COVER-RADIATOR(LH)

HDF50-7S #0001

1шт.

5-1

71FQ-10173

COVER-RADIATOR(LH)

HDF50-7S #0002

1шт.

5-1

71FQ-10172

COVER-RADIATOR(LH)

HDF70-7S #0001

1шт.

5-1

71FQ-10173

COVER-RADIATOR(LH)

HDF70-7S #0002

1шт.

5-2

71FQ-10182

COVER-RADIATOR(RH)

HDF50-7S #0001

1шт.

5-2

71FQ-10183

COVER-RADIATOR(RH)

HDF50-7S #0002

1шт.

5-2

71FQ-10182

COVER-RADIATOR(RH)

HDF70-7S #0001

1шт.

5-2

71FQ-10183

COVER-RADIATOR(RH)

HDF70-7S #0002

1шт.

5-3

71FQ-10711

SPONGE

2шт.

5-4

71FQ-10721

SPONGE

2шт.

5-5

71FQ-10731

SPONGE

HDF50-7S #0001

1шт.

5-5

71FQ-10732

SPONGE

HDF50-7S #0002

1шт.

5-5

71FQ-10731

SPONGE

HDF70-7S #0001

1шт.

5-5

71FQ-10732

SPONGE

HDF70-7S #0002

1шт.

5-6

71FQ-10741

SPONGE

HDF50-7S #0001

1шт.

5-6

71FQ-10742

SPONGE

HDF50-7S #0002

1шт.

5-6

71FQ-10741

SPONGE

HDF70-7S #0001

1шт.

5-6

71FQ-10742

SPONGE

HDF70-7S #0002

1шт.

5-7

71FQ-10751

SPONGE

HDF50-7S #0001

1шт.

5-7

71FQ-10752

SPONGE

HDF50-7S #0002

1шт.

5-7

71FQ-10751

SPONGE

HDF70-7S #0001

1шт.

5-7

71FQ-10752

SPONGE

HDF70-7S #0002

1шт.

5-8

71FQ-10761

SPONGE

HDF50-7S #0001

1шт.

5-8

71FQ-10762

SPONGE

HDF50-7S #0002

1шт.

5-8

71FQ-10761

SPONGE

HDF70-7S #0001

1шт.

5-8

71FQ-10762

SPONGE

HDF70-7S #0002

1шт.

5-9

71FQ-10771

SPONGE

HDF50-7S #0001

1шт.

5-9

71FQ-10772

SPONGE

HDF50-7S #0002

1шт.

5-9

71FQ-10771

SPONGE

HDF70-7S #0001

1шт.

5-9

71FQ-10772

SPONGE

HDF70-7S #0002

1шт.

5-1

71FQ-10781

SPONGE

HDF50-7S #0001

1шт.

5-1

71FQ-10782

SPONGE

HDF50-7S #0002

1шт.

5-1

71FQ-10781

SPONGE

HDF70-7S #0001

1шт.

5-1

71FQ-10782

SPONGE

HDF70-7S #0002

1шт.

5-11

71FQ-10581

ROD

1шт.

5-12

71EM-51580

CAP-STUD BOLT

36шт.

5-13

P392-120000

WASHER-COPPER

6шт.

5-14

E171-1147

HANDLE

HDF50-7S #0002

2шт.

5-14

E171-1147

HANDLE

HDF70-7S #0002

2шт.

5-15

S161-050166

SCREW-RD HD

HDF50-7S #0002

2шт.

5-15

S161-050166

SCREW-RD HD

HDF70-7S #0002

2шт.

5-16

F12100190

CUSHION

HDF50-7S #0002

2шт.

5-16

F12100190

CUSHION

HDF70-7S #0002

2шт.

5-17

S132-051526

SCREW-W/WASHER C/RD

HDF50-7S #0002

4шт.

5-17

S132-051526

SCREW-W/WASHER C/RD

HDF70-7S #0002

4шт.

8

71FQ-10221

GAS SPRING

2шт.

9

71FQ-10641

CLAMP

1шт.

12

E171-1147

HANDLE

HDF50-7S #0001

2шт.

12

E171-1147

HANDLE

HDF70-7S #0001

2шт.

14

71FQ-10321

TRAY ASSY

HDF50-7S #0022

1шт.

14

71FQ-10322

TRAY ASSY

HDF50-7S #0023

1шт.

14

71FQ-10321

TRAY ASSY

HDF70-7S #0155

1шт.

14

71FQ-10322

TRAY ASSY

HDF70-7S #0156

1шт.

15

S771-002500

WEATHER STRIP

2шт.

16

S771-003300

WEATHER STRIP

1шт.

17

71FQ-10241

SHIM(1.6T)

1шт.

17

71FQ-10251

SHIM(3.2T)

1шт.

18

S501-110002

PIN-SELF LOCKING

4шт.

19

S161-050166

SCREW-RD HD

HDF50-7S #0001

4шт.

19

S161-050166

SCREW-RD HD

HDF70-7S #0001

4шт.

21

S035-081526

BOLT-W/WASHER

3шт.

23

S037-122526

BOLT-W/WASHER

2шт.

24

S403-082006

WASHER-PLAIN

8шт.

25

S411-080006

WASHER-SPRING

4шт.

26

S205-081006

NUT-HEX

4шт.

28

71FQ-10361

BRACKET-TRAY

1шт.

29

S403-122006

WASHER-PLAIN

3шт.

30

S141-060156

SCREW-CROSS R/FLAT

4шт.

31

71FQ-10501

PLATE(LH)

HDF50-7S #0001

1шт.

31

71FQ-10500

PLATE(LH)

HDF70-7S #0001

1шт.

31

71FQ-10501

PLATE(LH)

HDF70-7S #0002 - #0019

1шт.

32

71FQ-10511

PLATE(RH)

HDF50-7S #0001

1шт.

32

71FQ-10510

PLATE(RH)

HDF70-7S #0001

1шт.

32

71FQ-10511

PLATE(RH)

HDF70-7S #0002 - #0019

1шт.

34

71FK-10150

LATCH

HDF50-7S #0002

2шт.

34

71FK-10150

LATCH

HDF70-7S #0002

2шт.

34-1

S131-052066

SCREW-W/WASHER

HDF50-7S #0002

2шт.

34-1

S131-052066

SCREW-W/WASHER

HDF70-7S #0002

2шт.

35

41FQ-00460

SEAL-RUBBER

HDF50-7S #0002 - #0013

2шт.

35

41FQ-00461

SEAL-RUBBER

HDF50-7S #0014

2шт.

35

41FQ-00460

SEAL-RUBBER

HDF70-7S #0020 - #0079

2шт.

35

41FQ-00461

SEAL-RUBBER

HDF70-7S #0080

2шт.

36

41FQ-00470

SEAL-RUBBER

HDF50-7S #0002 - #0013

2шт.

36

41FQ-00471

SEAL-RUBBER

HDF50-7S #0014

2шт.

36

41FQ-00470

SEAL-RUBBER

HDF70-7S #0020 - #0079

2шт.

36

41FQ-00471

SEAL-RUBBER

HDF70-7S #0080

2шт.

40

FHC0904100

RUBBER-STAY

HDF50-7S,OPSS #0012

1шт.

40

FHC0904100

RUBBER-STAY

HDF70-7S,OPSS #0052

1шт.

41

S681-230800

GROMMET

HDF50-7S,OPSS #0012

1шт.

41

S681-230800

GROMMET

HDF70-7S,OPSS #0052

1шт.

50

71FH-10510

SEAT ASSY(PKT)

HDF50-7S,OPSS #0012

1шт.

50

71FH-10510

SEAT ASSY(PKT)

HDF70-7S,OPSS #0052

1шт.

50

71FH-10520

SEAT ASSY(PKT+BT)

HDF50-7S,OPSS #0012

1шт.

50

71FH-10520

SEAT ASSY(PKT+BT)

HDF70-7S,OPSS #0052

1шт.

50

71FH-10530

SEAT ASSY(PKT+BT+HR)

HDF50-7S,OPSS #0012

1шт.

50

71FH-10530

SEAT ASSY(PKT+BT+HR)

HDF70-7S,OPSS #0052

1шт.

50

71FH-10540

SEAT ASSY(PKT+BT+AR)

HDF50-7S,OPSS #0012

1шт.

50

71FH-10540

SEAT ASSY(PKT+BT+AR)

HDF70-7S,OPSS #0052

1шт.

50-A

310006540

SWITCH-SEAT

HDF50-7S,OPSS #0012

1шт.

50-A

310006540

SWITCH-SEAT

HDF70-7S,OPSS #0052

1шт.

50-B

B51800050

HARNESS-SEAT

HDF50-7S,OPSS #0012

1шт.

50-B

B51800050

HARNESS-SEAT

HDF70-7S,OPSS #0052

1шт.

50-1

H31013-100

CUSION ASSY

HDF50-7S #0012

1шт.

50-1

H31013-100

CUSION ASSY

HDF70-7S #0052

1шт.

50-2

H31013-200

BACK ASSY

HDF50-7S #0012

1шт.

50-2

H31013-200

BACK ASSY

HDF70-7S #0052

1шт.

50-3

H31013-360

SHOCK ABSORBER ASSY

HDF50-7S #0012

1шт.

50-3

H31013-360

SHOCK ABSORBER ASSY

HDF70-7S #0052

1шт.

50-4

H31013-600

SIDE TRACK ASSY

HDF50-7S #0012

1шт.

50-4

H31013-600

SIDE TRACK ASSY

HDF70-7S #0052

1шт.

50-5

89890-8A610

BELT-SEAT

HDF50-7S, BT #0012

1шт.

50-5

89890-8A610

BELT-SEAT

HDF70-7S, BT #0052

1шт.

50-7

H31023-301

SUSPENSION

HDF50-7S #0012

1шт.

50-7

H31023-301

SUSPENSION

HDF70-7S #0052

1шт.

50-8

H31010-500

ARM RESTRAINT-LH

HDF50-7S, AR #0012

1шт.

50-8

H31010-500

ARM RESTRAINT-LH

HDF70-7S, AR #0052

1шт.

50-9

H31015-500

ARM RESTRAINT-RH

HDF50-7S, AR #0012

1шт.

50-9

H31015-500

ARM RESTRAINT-RH

HDF70-7S, AR #0052

1шт.

50-1

H31010-700

HIP RESTRAINT-LH

HDF50-7S, HR #0012

1шт.

50-1

H31010-700

HIP RESTRAINT-LH

HDF70-7S, HR #0052

1шт.

50-11

H31015-700

HIP RESTRAINT-RH

HDF50-7S, HR #0012

1шт.

50-11

H31015-700

HIP RESTRAINT-RH

HDF70-7S, HR #0052

1шт.

Выбрано товаров: 143
