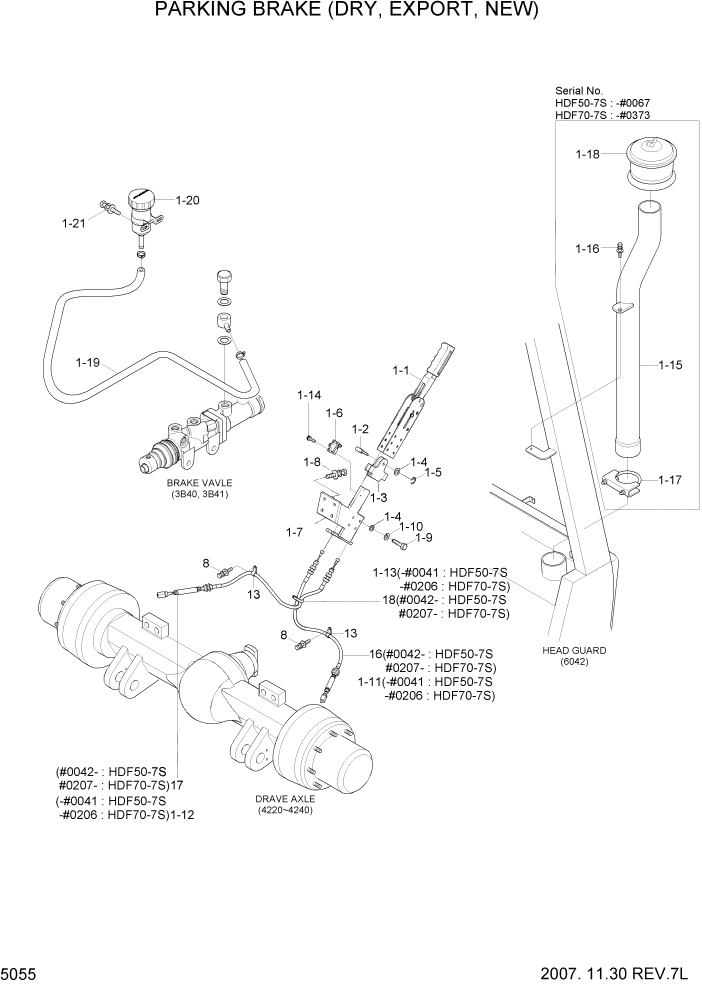

Запчасти Hyundai HDF50/HDF70-7S PAGE 5055 PARKING BRAKE(DRY, EXPORT, NEW) СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
1
@
PARKING SUB ASSY
NOT #0038 - #0041
1шт.
1
@
PARKING SUB ASSY
NOT #0042 - #0067
1шт.
1
@
PARKING SUB ASSY
NOT #0068
1шт.
1
@
PARKING SUB ASSY
NOT #0197 - #0206
1шт.
1
@
PARKING SUB ASSY
NOT #0207 - #0373
1шт.
1
@
PARKING SUB ASSY
NOT #0374
1шт.
1-1
81FQ-70010
PARKING LEVER ASSY
HDF50-7S #0065
1шт.
1-1
81FQ-70011
PARKING LEVER ASSY
HDF50-7S #0066
1шт.
1-1
81FQ-70010
PARKING LEVER ASSY
HDF70-7S #0363
1шт.
1-1
81FQ-70011
PARKING LEVER ASSY
HDF70-7S #0364
1шт.
1-2
81FQ-70051
PIN
1шт.
1-3
81FQ-70061
CONNECTOR
1шт.
1-4
S403-08200B
WASHER-PLAIN
5шт.
1-5
P560-070006
RETAINING RING-E TYPE
1шт.
1-6
21FV-10250
PARKING SWITCH ASSY
1шт.
1-7
81FQ-70041
BRACKET
1шт.
1-9
S015-080456
BOLT-HEX
4шт.
1-1
S411-080006
WASHER-SPRING
4шт.
1-11
81FQ-70311
CABLE-PARKING LH
HDF50-7S #0041
1шт.
1-11
81FQ-70311
CABLE-PARKING LH
HDF70-7S #0206
1шт.
1-12
81FQ-70321
CABLE-PARKING RH
HDF50-7S #0041
1шт.
1-12
81FQ-70321
CABLE-PARKING RH
HDF70-7S #0206
1шт.
1-13
S543-240002
CLAMP-TUBE
HDF50-7S #0041
1шт.
1-13
S543-240002
CLAMP-TUBE
HDF70-7S #0206
1шт.
1-14
S131-043046
SCREW-W/WASHER
2шт.
1-15
11FQ-20081
PIPE WA
5.0TON,SEE 6042 #0067
1шт.
1-15
11FQ-20081
PIPE WA
7.0TON,SEE 6042 #0373
1шт.
1-17
S170-760006
U-BOLT
5.0TON,SEE 6042 #0067
1шт.
1-17
S170-760006
U-BOLT
7.0TON,SEE 6042 #0373
1шт.
1-18
11FF-20030
PRECLEANER
5.0TON,SEE 6042 #0067
1шт.
1-18
11FF-20030
PRECLEANER
7.0TON,SEE 6042 #0373
1шт.
1-19
81FF-40130
BULK HOSE
1шт.
1-2
81FQ-40220
RESERVOIR TANK ASSY
1шт.
13
S543-120002
CLAMP-TUBE
2шт.
16
81FQ-70311
CABLE-PARKING LH
#0042
1шт.
16
81FQ-70311
CABLE-PARKING LH
#0207
1шт.
17
81FQ-70321
CABLE-PARKING RH
#0042
1шт.
17
81FQ-70321
CABLE-PARKING RH
#0207
1шт.
18
S543-240002
CLAMP-TUBE
#0042
1шт.
18
S543-240002
CLAMP-TUBE
#0207
1шт.
Выбрано товаров: 45
