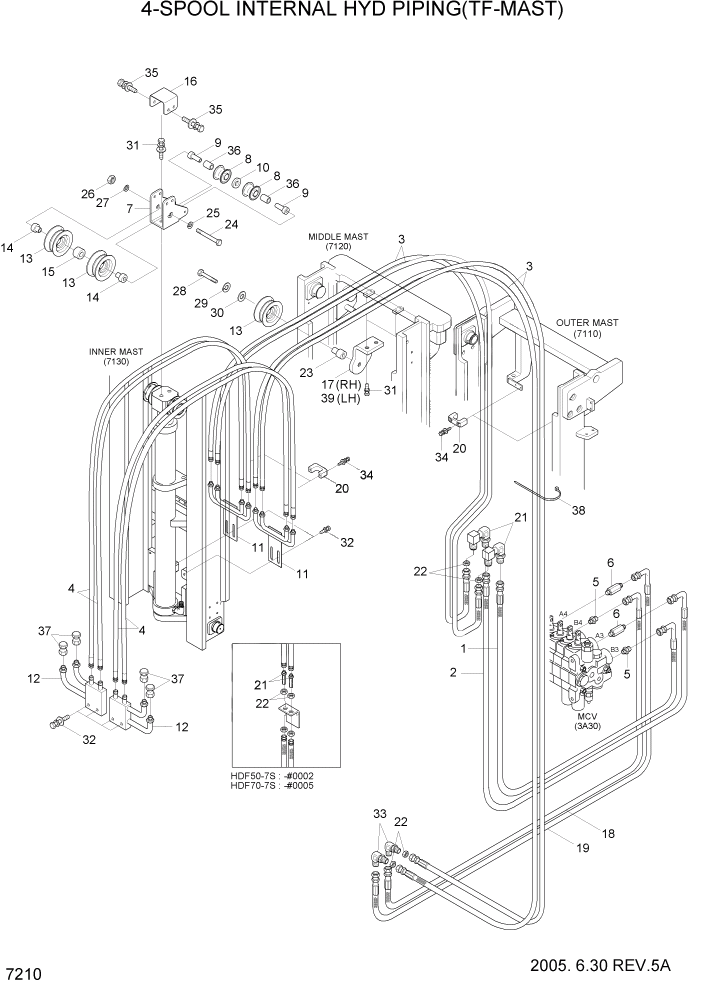

Запчасти Hyundai HDF50/HDF70-7 PAGE 7210 4-SPOOL INTERNAL HYD PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-064017

HOSE ASSY-ORFS 0X90

HDF50-7 #0002

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

HDF50-7 #0003

1шт.

1

P933-064017

HOSE ASSY-ORFS 0X90

HDF70-7 #0005

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

HDF70-7 #0006

1шт.

2

P933-064022

HOSE ASSY-ORFS 0X90

HDF50-7 #0002

2шт.

2

P933-064029

HOSE ASSY-ORFS 0X90

HDF50-7 #0003

1шт.

2

P933-064022

HOSE ASSY-ORFS 0X90

HDF70-7 #0005

2шт.

2

P933-064029

HOSE ASSY-ORFS 0X90

HDF70-7 #0006

1шт.

3

P910-064076

HOSE ASSY-ORFS 0X0

TF450,HDF50-7 #0002

4шт.

3

P910-064073

HOSE ASSY-ORFS 0X0

TF450,HDF50-7 #0003

4шт.

3

P910-064076

HOSE ASSY-ORFS 0X0

TF450,HDF70-7 #0005

4шт.

3

P910-064073

HOSE ASSY-ORFS 0X0

TF450,HDF70-7 #0006

4шт.

3

P910-064088

HOSE ASSY-ORFS 0X0

TF500,HDF50-7 #0002

4шт.

3

P910-064081

HOSE ASSY-ORFS 0X0

TF500,HDF50-7 #0003

4шт.

3

P910-064088

HOSE ASSY-ORFS 0X0

TF500,HDF70-7 #0005

4шт.

3

P910-064081

HOSE ASSY-ORFS 0X0

TF500,HDF70-7 #0006

4шт.

3

P910-064100

HOSE ASSY-ORFS 0X0

TF560,HDF50-7 #0002

4шт.

3

P910-064088

HOSE ASSY-ORFS 0X0

TF560,HDF50-7 #0003

4шт.

3

P910-064100

HOSE ASSY-ORFS 0X0

TF560,HDF70-7 #0005

4шт.

3

P910-064088

HOSE ASSY-ORFS 0X0

TF560,HDF70-7 #0006

4шт.

3

P910-064111

HOSE ASSY-ORFS 0X0

TF600,HDF50-7 #0002

4шт.

3

P910-064096

HOSE ASSY-ORFS 0X0

TF600,HDF50-7 #0003

4шт.

3

P910-064111

HOSE ASSY-ORFS 0X0

TF600,HDF70-7 #0005

4шт.

3

P910-064096

HOSE ASSY-ORFS 0X0

TF600,HDF70-7 #0006

4шт.

4

P910-064045

HOSE ASSY-ORFS 0X0

TF450

4шт.

4

P910-064048

HOSE ASSY-ORFS 0X0

TF500,HDF50-7 #0002

4шт.

4

P910-064049

HOSE ASSY-ORFS 0X0

TF500,HDF50-7 #0003

4шт.

4

P910-064048

HOSE ASSY-ORFS 0X0

TF500,HDF70-7 #0005

4шт.

4

P910-064049

HOSE ASSY-ORFS 0X0

TF500,HDF50-7 #0006

4шт.

4

P910-064052

HOSE ASSY-ORFS 0X0

TF560

4шт.

4

P910-064056

HOSE ASSY-ORFS 0X0

TF600

4шт.

5

31FQ-80130

CONNECTOR

2шт.

6

31FQ-80140

CONNECTOR-LONG

2шт.

7

33FQ-90020

BRACKET WA

1шт.

8

33FQ-90030

PULLEY-HOSE

2шт.

9

33FQ-90040

PIN-H/PULLEY

2шт.

10

33FQ-90050

SPACER

1шт.

11

33FQ-90060

PIPE-WA

2шт.

12

34FG-90400

BLOCK WA

2шт.

13

34FG-90200

PULLEY-HOSE

4шт.

14

34FG-90250

PIN-HOSE PULLEY

2шт.

15

34FG-90290

SPACER

1шт.

16

34FG-90270

COVER

1шт.

17

31FF-90010

PLATE

1шт.

18

P933-064028

HOSE ASSY-ORFS 0X90

HDF50-7 #0003

1шт.

18

P933-064028

HOSE ASSY-ORFS 0X90

HDF70-7 #0006

1шт.

19

P933-064030

HOSE ASSY-ORFS 0X90

HDF50-7 #0003

1шт.

19

P933-064030

HOSE ASSY-ORFS 0X90

HDF70-7 #0006

1шт.

20

34FG-90260

CLAMP-HOSE

4шт.

21

31FG-80210

CONNECTOR

HDF50-7 #0002

4шт.

21

31FS-90500

ELBOW WA

HDF50-7 #0003

2шт.

21

31FG-80210

CONNECTOR

HDF70-7 #0005

4шт.

21

31FS-90500

ELBOW WA

HDF70-7 #0006

2шт.

22

31FG-80430

NUT-HEX

4шт.

23

31FV-90130

PIN-H/PULLER

2шт.

24

S017-101356

BOLT-HEX

2шт.

25

S411-100006

WASHER-SPRING

2шт.

26

S275-100002

NUT-SELF LOCKING

2шт.

27

S403-102006

WASHER-PLAIN

2шт.

28

S017-120606

BOLT-HEX

2шт.

29

S411-120006

WASHER-SPRING

2шт.

30

S441-120006

WASHER-HARDENED

2шт.

31

S037-123026

BOLT-W/WASHER

4шт.

32

S037-102526

BOLT-W/WASHER

8шт.

33

31FV-90120

ELBOW

HDF50-7 #0003

2шт.

33

31FV-90120

ELBOW

HDF70-7 #0006

2шт.

34

S035-063526

BOLT-W/WASHER

4шт.

35

S035-081526

BOLT-W/WASHER

HDF50-7 #0002

4шт.

35

S035-081526

BOLT-W/WASHER

HDF50-7 #0003

2шт.

35

S035-081526

BOLT-W/WASHER

HDF70-7 #0005

4шт.

35

S035-081526

BOLT-W/WASHER

HDF70-7 #0006

2шт.

36

S731-020015

BUSHING-DU

2шт.

37

X710-100103

CAP-ORFS

4шт.

38

S552-050203

CLAMP-BAND

10шт.

39

33FF-90030

PLATE

1шт.
