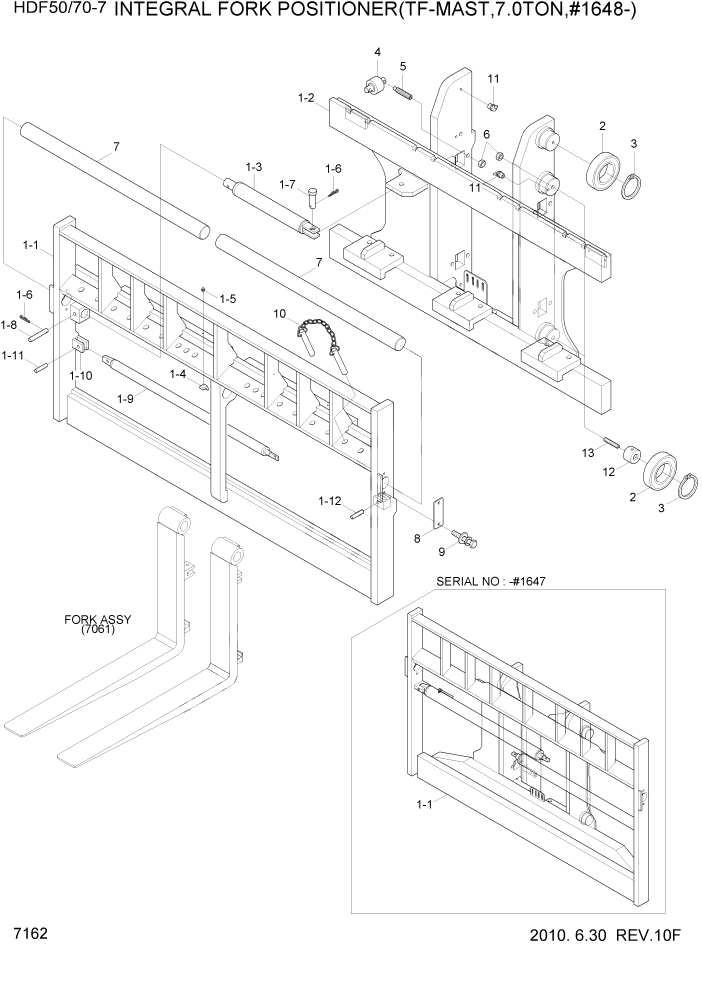

Запчасти Hyundai HDF50/HDF70-7 PAGE 7162 INTEGRAL FORK POSITIONER(TF-MAST,7.0TON) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

68FQ-26010

INTEGRAL F/POSI ASSY

WIDTH:2156 #1448 - #1197

1шт.

*

69FQ-10010

INTEGRAL S/S WITH CARR & BACK

HDF50-7 #1198

1шт.

*

68FQ-26010

INTEGRAL F/POSI ASSY

WIDTH:2156 #1448 - #1647

1шт.

*

69FQ-10010

INTEGRAL S/S WITH CARR & BACK

WIDTH:2156 #1648

1шт.

*

68FQ-26020

INTEGRAL F/POSI ASSY

WIDTH:2030 #1448 - #1197

1шт.

*

69FQ-10020

INTEGRAL S/S WITH CARR & BACK

HDF50-7 #1198

1шт.

*

68FQ-26020

INTEGRAL F/POSI ASSY

WIDTH:2030 #1448 - #1647

1шт.

*

69FQ-10020

INTEGRAL S/S WITH CARR & BACK

WIDTH:2030 #1648

1шт.

1

68FQ-10110

INTEGRAL F/POSITIONER

WIDTH:2156 #1197

1шт.

1

69FQ-10110

INTEGRAL SIDE SHIFT ASSY

HDF50-7 #1198

1шт.

1

68FQ-10110

INTEGRAL F/POSITIONER

WIDTH:2156 #1647

1шт.

1

69FQ-10110

INTEGRAL SIDE SHIFT ASSY

WIDTH:2156 #1648

1шт.

1

68FQ-10120

INTEGRAL F/POSITIONER

WIDTH:2030 #1197

1шт.

1

69FQ-10120

INTEGRAL SIDE SHIFT ASSY

HDF50-7 #1198

1шт.

1

68FQ-10120

INTEGRAL F/POSITIONER

WIDTH:2030 #1647

1шт.

1

69FQ-10120

INTEGRAL SIDE SHIFT ASSY

WIDTH:2030 #1648

1шт.

1-1

68FQ-10200

CARRIAGE WA

WIDTH:2156

1шт.

1-1

68FQ-10210

CARRIAGE WA

WIDTH:2030

1шт.

1-4

66FQ-10300

CYLINDER

WIDTH:2156

2шт.

1-4

66FQ-10310

CYLINDER

WIDTH:2030

2шт.

1-14

66FQ-00450

FITTING

4шт.

2

61FF-18600

LOAD R/BRG ASSY(164.5)

STD

6шт.

2

61FF-18610

LOAD R/BRG ASSY(164.0)

UNDERSIZE #1635

6шт.

2

61FF-18620

LOAD R/BRG ASSY(165.0)

OVERSIZE #1635

6шт.

3

S601-075004

RING-RETAINING

6шт.

4

63FF-18301

SIDE ROLLER ASSY

#1197

4шт.

4

63FF-18300

SIDE ROLLER ASSY

HDF50-7 #1198

4шт.

4

63FF-18301

SIDE ROLLER ASSY

#1648

4шт.

4

63FF-18300

SIDE ROLLER ASSY

#1648

4шт.

5

61FF-18810-DAC

ADJUSTABLE SCREW

8шт.

6

S205-201006

NUT-HEX

12шт.

7

61FF-18010

HANGER BAR(1076MM)

WIDTH:2156

2шт.

7

61FF-18010

HANGER BAR(1076MM)

WIDTH:2156 #2017

2шт.

7

61FF-18011

HANGER BAR-FORK

WIDTH:2156 #2018

2шт.

7

61FQ-18120

HANGER BAR(1013MM)

WIDTH:2030

2шт.

7

61FQ-18120

HANGER BAR(1013MM)

WIDTH:2030 #2017

2шт.

7

61FQ-18121

HANGER BAR-FORK

WIDTH:2030 #2018

2шт.

8

61FQ-25100

COVER

2шт.

9

S037-123526

BOLT-W/WASHER

4шт.

10

61FC-28051

FORK RETAINING ASSY

HDF50-7 #1198

2шт.

10

61FC-28051

FORK RETAINING ASSY

#1648

2шт.

11

S652-810008

NIPPLE-GREASE

6шт.

12

63FF-18100

PLUG-WEAR

#1725

4шт.

12

63FQ-18100

PLUG-WEAR

#1726

4шт.

13

63FF-18220

SCREW-SET

4шт.
