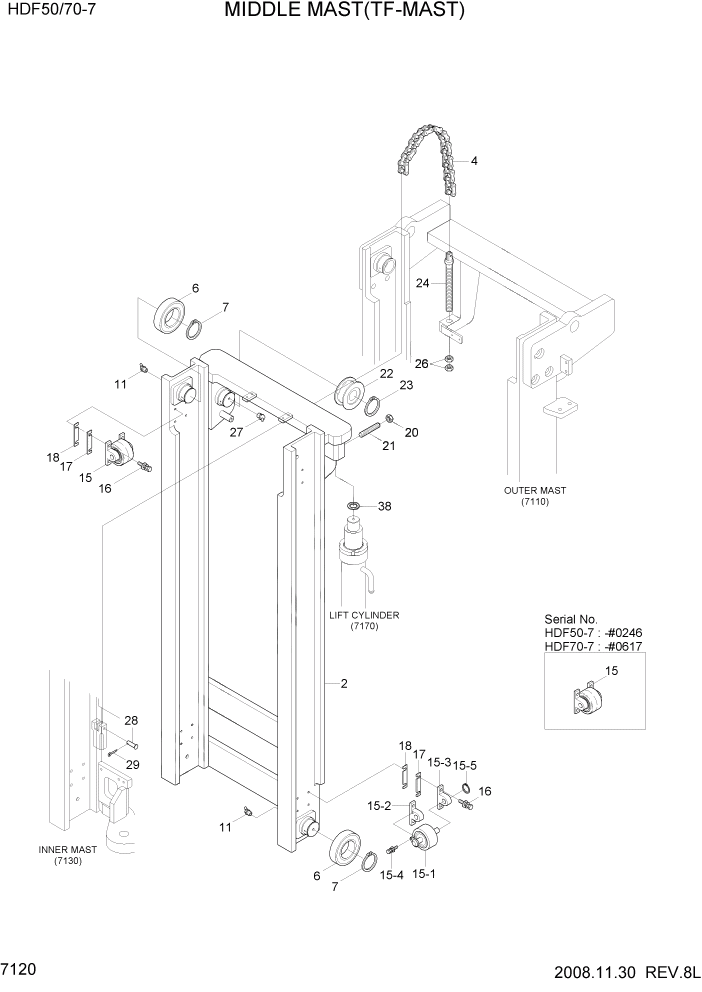

Запчасти Hyundai HDF50/HDF70-7 PAGE 7120 MIDDLE MAST(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

2

63FQ-13011

MIDDLE MAST WA

TF450

1шт.

2

63FQ-13021

MIDDLE MAST WA

TF500

1шт.

2

63FQ-13031

MIDDLE MAST WA

TF560

1шт.

2

63FQ-13041

MIDDLE MAST WA

TF600

1шт.

4

61FF-30210

CHAIN ASSY/BL1034

TF450

2шт.

4

61FF-30220

CHAIN ASSY/BL1034

TF500

2шт.

4

61FF-30230

CHAIN ASSY/BL1034

TF560

2шт.

4

61FF-30240

CHAIN ASSY/BL1034

TF600

2шт.

6

61FF-18600

LOAD R/BRG ASSY(164.5)

STD

4шт.

6

61FF-18610

LOAD R/BRG ASSY(164.0)

50-7,UNDERSIZE #1192

4шт.

6

61FF-18620

LOAD R/BRG ASSY(165.0)

50-7,OVERSIZE #1192

4шт.

6

61FF-18600

LOAD R/BRG ASSY

4шт.

6

61FF-18610

LOAD R/BRG ASSY(164.0)

70-7,UNDERSIZE #1635

4шт.

6

61FF-18620

LOAD R/BRG ASSY(165.0)

70-7,OVERSIZE #1635

4шт.

7

S601-075004

RING-RETAINING

4шт.

11

S651-060008

NIPPLE-GREASE

4шт.

15

63FF-18400

BEARING-SIDE ROLLER

HDF50-7 #0246

4шт.

15

63FF-18401

SIDE ROLLER ASSY

HDF50-7 #0247

4шт.

15-1

63FF-18411

SIDE ROLLER BEARING

HDF50-7 #0247

1шт.

15-2

63FF-18420

SUPPORT

HDF50-7 #0247

1шт.

15-3

63FF-18430

SUPPORT

HDF50-7 #0247

1шт.

15-4

S035-082022

BOLT-W/WASHER

HDF50-7 #0247

1шт.

15-5

S601-025004

RING-RETAINING

HDF50-7 #0247

1шт.

15

63FF-18400

BEARING-SIDE ROLLER

HDF70-7 #0617

4шт.

15

63FF-18401

SIDE ROLLER ASSY

HDF70-7 #0618

4шт.

15-1

63FF-18411

SIDE ROLLER BEARING

HDF70-7 #0618

1шт.

15-2

63FF-18420

SUPPORT

HDF70-7 #0618

1шт.

15-3

63FF-18430

SUPPORT

HDF70-7 #0618

1шт.

15-4

S035-082022

BOLT-W/WASHER

HDF70-7 #0618

1шт.

15-5

S601-025004

RING-RETAINING

HDF70-7 #0618

1шт.

16

S037-123526

BOLT-W/WASHER

16шт.

17

63FF-18500

SHIM(1.0T)

8шт.

18

63FF-18510

SHIM(0.5T)

8шт.

20

S205-121006

NUT-HEX

2шт.

21

S111-120354

SCREW-SET HEX SOCKET

2шт.

22

61F8-18300

CHAIN SHEAVE BEARING

2шт.

23

S601-060004

RING-RETAINING

2шт.

24

61FF-18900

BOLT-ANCHOR

2шт.

26

S206-241006

NUT-HEX

4шт.

27

S653-810008

NIPPLE-GREASE

2шт.

28

61F8-18110

PIN-CHAIN

2шт.

29

S461-250202

PIN-SPLIT

2шт.

38

6600188000

SHIM(1.0T)

2шт.
