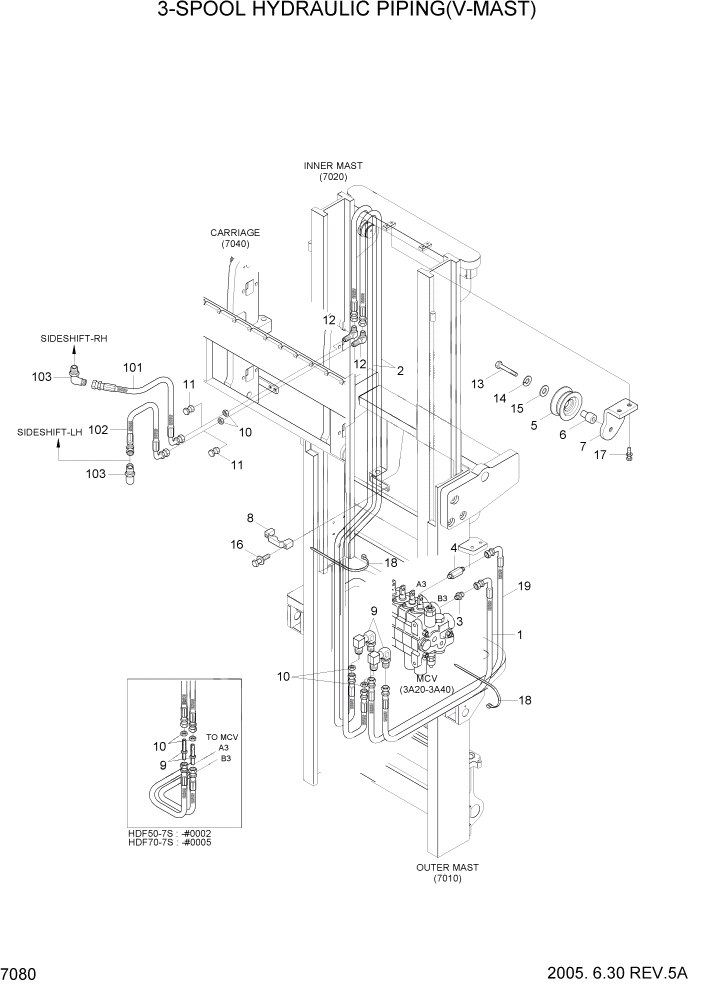

Запчасти Hyundai HDF50/HDF70-7 PAGE 7080 3-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-064017

HOSE ASSY-ORFS 0X90

HDF50-7 #0002

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

HDF50-7 #0003

1шт.

1

P933-064017

HOSE ASSY-ORFS 0X90

HDF70-7 #0005

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

HDF70-7 #0006

1шт.

2

P910-064069

HOSE ASSY-ORFS 0X0

V270,HDF50-7 #0002

2шт.

2

P910-064068

HOSE ASSY-ORFS 0X0

V270,HDF50-7 #0003

2шт.

2

P910-064069

HOSE ASSY-ORFS 0X0

V270,HDF70-7 #0005

2шт.

2

P910-064068

HOSE ASSY-ORFS 0X0

V270,HDF70-7 #0006

2шт.

2

P910-064078

HOSE ASSY-ORFS 0X0

V300,HDF50-7 #0002

2шт.

2

P910-064074

HOSE ASSY-ORFS 0X0

V300,HDF50-7 #0003

2шт.

2

P910-064078

HOSE ASSY-ORFS 0X0

V300,HDF70-7 #0005

2шт.

2

P910-064074

HOSE ASSY-ORFS 0X0

V300,HDF70-7 #0006

2шт.

2

P910-064087

HOSE ASSY-ORFS 0X0

V330,HDF50-7 #0002

2шт.

2

P910-064080

HOSE ASSY-ORFS 0X0

V330,HDF50-7 #0003

2шт.

2

P910-064087

HOSE ASSY-ORFS 0X0

V330,HDF70-7 #0005

2шт.

2

P910-064080

HOSE ASSY-ORFS 0X0

V330,HDF70-7 #0006

2шт.

2

P910-064093

HOSE ASSY-ORFS 0X0

V350,HDF50-7 #0002

2шт.

2

P910-064084

HOSE ASSY-ORFS 0X0

V350,HDF50-7 #0003

2шт.

2

P910-064093

HOSE ASSY-ORFS 0X0

V350,HDF70-7 #0005

2шт.

2

P910-064084

HOSE ASSY-ORFS 0X0

V350,HDF70-7 #0006

2шт.

2

P910-064099

HOSE ASSY-ORFS 0X0

V370,HDF50-7 #0002

2шт.

2

P910-064088

HOSE ASSY-ORFS 0X0

V370,HDF50-7 #0003

2шт.

2

P910-064099

HOSE ASSY-ORFS 0X0

V370,HDF70-7 #0005

2шт.

2

P910-064088

HOSE ASSY-ORFS 0X0

V370,HDF70-7 #0006

2шт.

2

P910-064107

HOSE ASSY-ORFS 0X0

V400,HDF50-7 #0002

2шт.

2

P910-064094

HOSE ASSY-ORFS 0X0

V400,HDF50-7 #0003

2шт.

2

P910-064107

HOSE ASSY-ORFS 0X0

V400,HDF70-7 #0005

2шт.

2

P910-064094

HOSE ASSY-ORFS 0X0

V400,HDF70-7 #0006

2шт.

2

P910-064125

HOSE ASSY-ORFS 0X0

V450,HDF50-7 #0002

2шт.

2

P910-064106

HOSE ASSY-ORFS 0X0

V450,HDF50-7 #0003

2шт.

2

P910-064125

HOSE ASSY-ORFS 0X0

V450,HDF70-7 #0005

2шт.

2

P910-064106

HOSE ASSY-ORFS 0X0

V450,HDF70-7 #0006

2шт.

2

P910-064140

HOSE ASSY-ORFS 0X0

V500,HDF50-7 #0002

2шт.

2

P910-064116

HOSE ASSY-ORFS 0X0

V500,HDF50-7 #0003

2шт.

2

P910-064140

HOSE ASSY-ORFS 0X0

V450,HDF70-7 #0005

2шт.

2

P910-064116

HOSE ASSY-ORFS 0X0

V500,HDF70-7 #0006

2шт.

2

P910-064154

HOSE ASSY-ORFS 0X0

V550,HDF50-7 #0002

2шт.

2

P910-064126

HOSE ASSY-ORFS 0X0

V550,HDF50-7 #0003

2шт.

2

P910-064154

HOSE ASSY-ORFS 0X0

V550,HDF70-7 #0005

2шт.

2

P910-064126

HOSE ASSY-ORFS 0X0

V550,HDF70-7 #0006

2шт.

2

P910-064169

HOSE ASSY-ORFS 0X0

V600,HDF50-7 #0002

2шт.

2

P910-064136

HOSE ASSY-ORFS 0X0

V600,HDF50-7 #0003

2шт.

2

P910-064169

HOSE ASSY-ORFS 0X0

V600,HDF70-7 #0005

2шт.

2

P910-064136

HOSE ASSY-ORFS 0X0

V600,HDF70-7 #0006

2шт.

3

31FQ-80130

CONNECTOR

1шт.

4

31FQ-80140

CONNECTOR-LONG

1шт.

5

34FG-90200

PULLEY-HOSE

1шт.

6

31FV-90130

PIN-H/PULLER

1шт.

7

31FF-90010

PLATE

1шт.

8

34FG-90260

CLAMP-HOSE

1шт.

9

31FG-80210

CONNECTOR

HDF50-7 #0002

2шт.

9

31FS-90500

ELBOW WA

HDF50-7 #0003

2шт.

9

31FG-80210

CONNECTOR

HDF70-7 #0005

2шт.

9

31FS-90500

ELBOW WA

HDF70-7 #0006

2шт.

10

31FG-80430

NUT-HEX

4шт.

11

X710-100103

CAP-ORFS

2шт.

12

31FV-90120

ELBOW

2шт.

13

S017-120606

BOLT-HEX

1шт.

14

S411-120006

WASHER-SPRING

1шт.

15

S441-120006

WASHER-HARDENED

1шт.

16

S035-063526

BOLT-W/WASHER

2шт.

17

S037-123056

BOLT-W/WASHER

2шт.

18

S552-050203

CLAMP-BAND

6шт.

19

P933-064029

HOSE ASSY-ORFS 0X90

HDF50-7 #0003

1шт.

19

P933-064029

HOSE ASSY-ORFS 0X90

HDF70-7 #0006

1шт.

101

P933-064014

HOSE ASSY-ORFS 0X90

1шт.

102

P933-064015

HOSE ASSY-ORFS 0X90

1шт.

103

31FG-80400

ELBOW-90

2шт.
