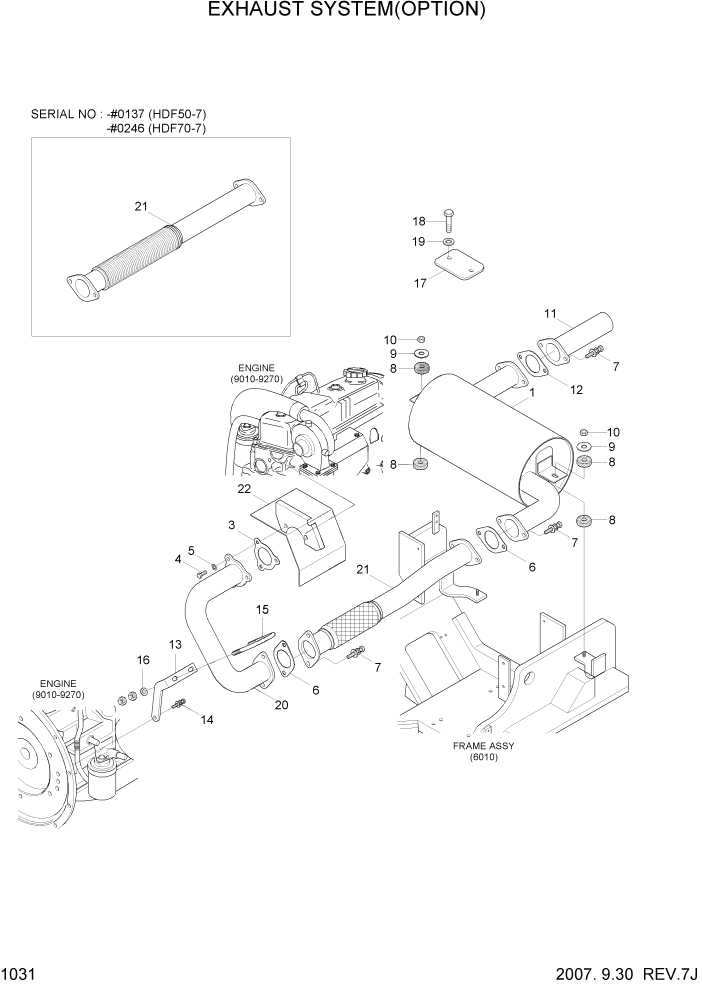

Запчасти Hyundai HDF50/HDF70-7 PAGE 1031 EXHAUST SYSTEM(OPTION) СИСТЕМА ДВИГАТЕЛЯ

*

@

EXHAUST SYSTEM

NOT #0001

1шт.

1

11FQ-40100

MUFFLER WA

1шт.

3

11F2-5012

GASKET

1шт.

4

11F6-20080

BOLT-HEX

3шт.

5

S421-100002

WASHER-EXT/TOOTH

3шт.

6

11FE-40070

GASKET

#0001

2шт.

7

S035-082526

BOLT-W/WASHER

#0001

6шт.

8

FAD0100140

RUBBER-CUSHION

HDF50-7 #0022

2шт.

8

11L7-30042

RUBBER-CUSHION

HDF50-7 #0023

2шт.

8

FAD0100140

RUBBER-CUSHION

HDF70-7 #0148

2шт.

8

11L7-30042

RUBBER-CUSHION

HDF70-7 #0149

2шт.

9

FAC0100150

WASHER

HDF50-7 #0022

2шт.

9

11S5-00150

WASHER-SPECIAL

HDF50-7 #0023

2шт.

9

FAC0100150

WASHER

HDF70-7 #0148

2шт.

9

11S5-00150

WASHER-SPECIAL

HDF70-7 #0149

2шт.

10

S275-100002

NUT-SELF LOCKING

2шт.

11

11FQ-40110

TAIL PIPE WA

HDF50-7

1шт.

11

11FQ-40120

TAIL PIPE WA

HDF70-7

1шт.

12

11F7-20210

GASKET

1шт.

13

11FQ-40090

BRACKET W.A

ILLUST CHANGE #0001

1шт.

14

S037-102526

BOLT-W/WASHER

2шт.

15

11FF-40120

U-BOLT

1шт.

16

S441-100006

WASHER-HARDENED

2шт.

17

11FQ-40130

COVER

1шт.

18

S017-120356

BOLT-HEX

2шт.

19

S441-120006

WASHER-HARDENED

2шт.

20

11FQ-40140

EXHAUST PIPE

HDF50-7 #0001 - #1053

1шт.

20

11FQ-40141

EXHAUST PIPE

HDF50-7 #1054

1шт.

20

11FQ-40140

EXHAUST PIPE

HDF70-7 #0001 - #1171

1шт.

20

11FQ-40141

EXHAUST PIPE

HDF70-7 #1172

1шт.

21

11FQ-40150

EXHAUST PIPE

HDF50-7 #0001 - #0137

1шт.

21

11FQ-40151

EXHAUST PIPE

HDF50-7 #0138

1шт.

21

11FQ-40150

EXHAUST PIPE

HDF70-7 #0001 - #0246

1шт.

21

11FQ-40151

EXHAUST PIPE

HDF70-7 #0247

1шт.

22

11FQ-46160

SCREEN-T/CHARGER

HDF50-7 #0072

1шт.

22

11FQ-46160

SCREEN-T/CHARGER

HDF70-7 #0160

1шт.
