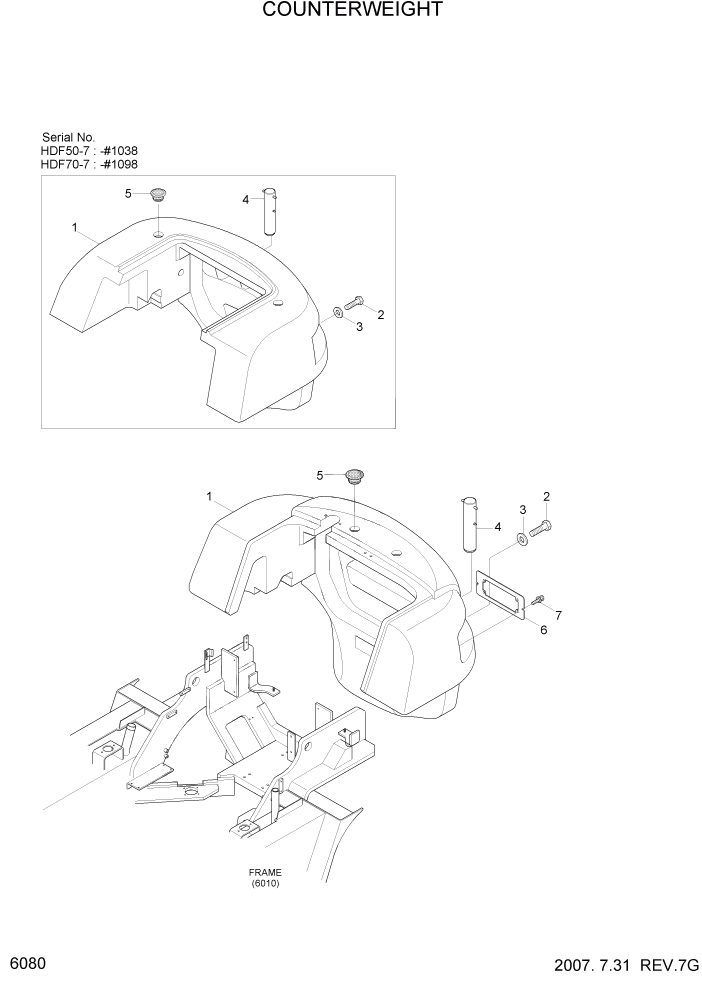

Запчасти Hyundai HDF50/HDF70-7 PAGE 6080 COUNTERWEIGHT СТРУКТУРА

1

51FQ-10011

COUNTERWEIGHT-5.0TON

HDF50-7 #0146

1шт.

1

51FQ-10012

COUNTERWEIGHT-5.0TON

HDF50-7 #0147 - #1038

1шт.

1

51FQ-10013

COUNTERWEIGHT-5.0TON

HDF50-7 #1039

1шт.

1

51FQ-30011

COUNTERWEIGHT-7.0TON

HDF70-7 #0271

1шт.

1

51FQ-30012

COUNTERWEIGHT-7.0TON

HDF70-7 #0272 - #1098

1шт.

1

51FQ-30013

COUNTERWEIGHT-7.0TON

HDF70-7 #1099

1шт.

2

S017-301802

BOLT-HEX

HDF50-7

2шт.

2

S017-302202

BOLT-HEX

HDF70-7

2шт.

3

FAD0700580

WASHER-PLAIN

HDF50-7 #1038

2шт.

3

FAD0700580B

WASHER-PLAIN

HDF50-7 #1039

2шт.

3

FAD0700580

WASHER-PLAIN

HDF70-7 #1098

2шт.

3

FAD0700580B

WASHER-PLAIN

HDF70-7 #1099

2шт.

4

51FQ-00031

PIN ASSY

1шт.

5

41FE-00060

CAP

2шт.

6

51FQ-11030

PLATE ASSY

HDF50-7 #1039

2шт.

6

51FQ-11030

PLATE ASSY

HDF70-7 #1099

2шт.

7

S035-082546

BOLT-W/WASHER

HDF50-7 #1039

4шт.

7

S035-082546

BOLT-W/WASHER

HDF70-7 #1099

4шт.
