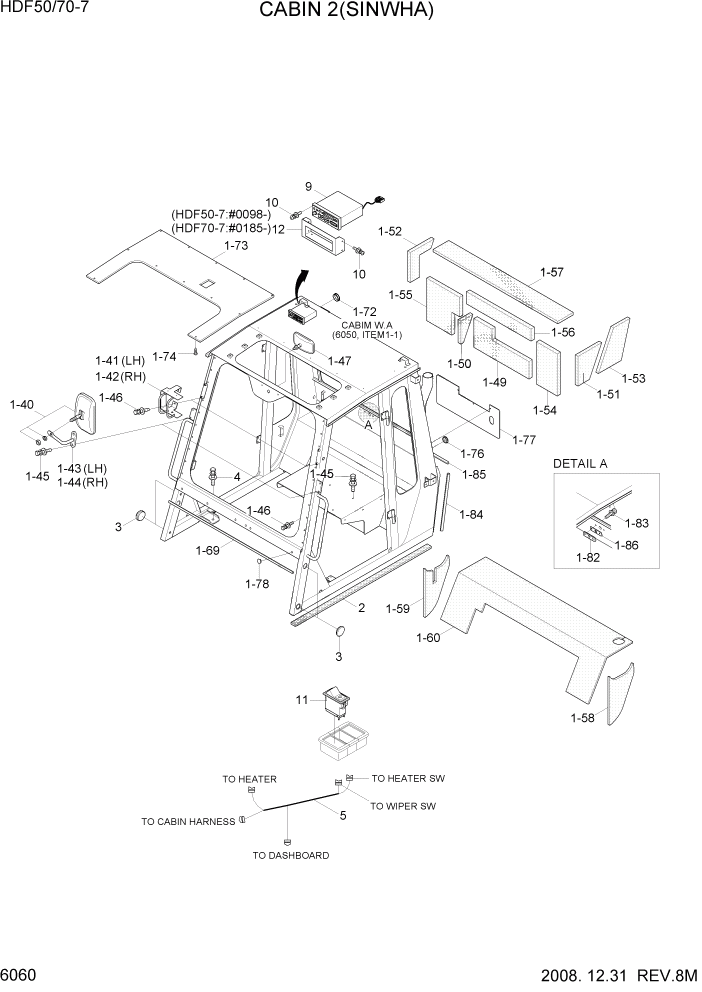

Запчасти Hyundai HDF50/HDF70-7 PAGE 6060 CABIN 2(SINWHA) СТРУКТУРА

*

@

CABIN ASSY

NOT

1шт.

*

@

CABIN ASSY

NOT

1шт.

1

@

CABIN ASSY

NOT

1шт.

1-4

71N8-46000

MIRROR

2шт.

1-41

71FF-30470

PROTECTOR-LH

1шт.

1-42

71FF-30460

PROTECTOR-RH

1шт.

1-43

71FF-30091

STAY-MIRROR,LH

HDF50-7 #0097

1шт.

1-43

71FQ-52010

STAY-MIRROR(LH)

HDF50-7 #0098

1шт.

1-43

71FF-30091

STAY-MIRROR,LH

HDF70-7 #0184

1шт.

1-43

71FQ-52010

STAY-MIRROR(LH)

HDF70-7 #0185

1шт.

1-44

71FF-30101

STAY-MIRROR,RH

1шт.

1-45

S035-082026

BOLT-W/WASHER

HDF50-7

11шт.

1-45

S035-082022

BOLT-W/WASHER

HDF70-7 #0004

4шт.

1-45

S035-082026

BOLT-W/WASHER

HDF70-7 #0005

11шт.

1-46

S035-081522

BOLT-W/WASHER

HDF50-7

10шт.

1-46

S035-081522

BOLT-W/WASHER

HDF70-7 #0004

4шт.

1-46

S035-081522

BOLT-W/WASHER

HDF70-7 #0005

10шт.

1-47

71L1-3377

MIRROR-ROOM

1шт.

1-49

71FQ-30300

SPONGE

1шт.

1-5

71FQ-30310

SPONGE

1шт.

1-51

71FQ-30320

SPONGE(LH)

1шт.

1-52

71FQ-30330

SPONGE(RH)

1шт.

1-53

71FQ-30340

SPONGE

1шт.

1-54

71FQ-30350

SPONGE

1шт.

1-55

71FQ-30360

SPONGE

1шт.

1-56

71FQ-30370

SPONGE

HDF70-7 #0004

1шт.

1-57

71FQ-30380

SPONGE

1шт.

1-58

71FQ-51190

INSULATION FORM

1шт.

1-59

71FQ-51200

INSULATION FORM

1шт.

1-6

71FQ-51210

INSULATION FORM

1шт.

1-69

S771-013500

WEATHER STRIP

1шт.

1-72

ED03020000

GROMMET

1шт.

1-73

71FQ-51230

ROOF-LINING

1шт.

1-74

71FE-51220

SCREW

12шт.

1-76

71EM-51580

CAP-STUD BOLT

15шт.

1-77

71FQ-10530

PLATE

1шт.

1-78

71FQ-51240

CAP-RUBBER

6шт.

1-82

71FQ-30410

PLATE

HDF50-7 #0051 - #1197

1шт.

1-82

71FQ-30411

PLATE

HDF50-7 #1198

1шт.

1-82

71FQ-30410

PLATE

HDF70-7 #0114 - #1681

1шт.

1-82

71FQ-30411

PLATE

HDF70-7 #1682

1шт.

1-83

S035-062546

BOLT-W/WASHER

HDF50-7 #0051

2шт.

1-83

S035-062546

BOLT-W/WASHER

HDF70-7 #0114

2шт.

1-84

S771-009800

WEATHER STRIP

HDF50-7 #0051 - #1197

2шт.

1-84

S771-013300

WEATHER STRIP

HDF50-7 #1198

1шт.

1-84

S771-009800

WEATHER STRIP

HDF70-7 #0114 - #1681

2шт.

1-84

S771-013300

WEATHER STRIP

HDF70-7 #1682

1шт.

1-85

S771-003500

WEATHER STRIP

HDF50-7 #0051 - #1197

1шт.

1-85

77FQ-30200

RUBBER

HDF50-7 #1198

1шт.

1-85

S771-003500

WEATHER STRIP

HDF70-7 #0114 - #1681

1шт.

1-85

77FQ-30200

RUBBER

HDF70-7 #1682

1шт.

2

F14130110

SEAL-RUBBER

2шт.

3

FHC0904100

RUBBER-STAY

4шт.

4

S037-122522

BOLT-W/WASHER

4шт.

5

21FQ-10910

HARNESS-DASHBOARD

HDF50-7 #0050

1шт.

5

21FQ-10912

HARNESS-DASHBOARD

HDF50-7 #0051

1шт.

5

21FQ-10910

HARNESS-DASHBOARD

HDF70-7 #0113

1шт.

5

21FQ-10912

HARNESS-DASHBOARD

HDF70-7 #0114

1шт.

9

21E9-20340

CASSETTE RADIO

HDF50-7 #0050

1шт.

9

21N8-50060

CASSETTE RADIO ASSY

HDF50-7 #0051

1шт.

9

21E9-20340

CASSETTE RADIO

HDF70-7 #0113

1шт.

9

21N8-50060

CASSETTE RADIO ASSY

HDF70-7 #0114

1шт.

10

S131-051046

SCREW-W/WASHER

HDF50-7 #0097

4шт.

10

S131-051046

SCREW-W/WASHER

HDF50-7 #0098

8шт.

10

S131-051046

SCREW-W/WASHER

HDF70-7 #0184

4шт.

10

S131-051046

SCREW-W/WASHER

HDF70-7 #0185

8шт.

11

21L7-03080

SWITCH-WIPER WASHER

1шт.

12

71FQ-50440

COVER-RADIO

HDF50-7 #0098

1шт.

12

71FQ-50440

COVER-RADIO

HDF70-7 #0185

1шт.
