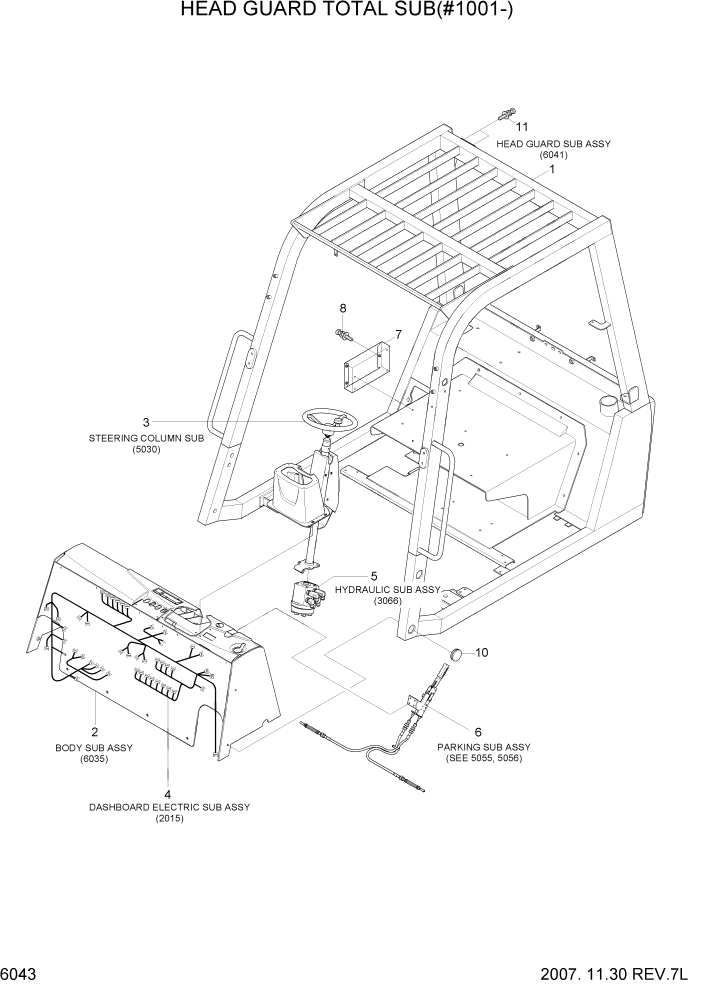

Запчасти Hyundai HDF50/HDF70-7 PAGE 6043 HEAD GUARD TOTAL SUB(#1001-) СТРУКТУРА
№
Артикул
Название
Примечание
Количество
*
77FQ-35000
HEAD GUARD TOTAL SUB
HDF50-7, WET #1001 - #1004
1шт.
*
77FQ-35001
HEAD GUARD TOTAL SUB
HDF50-7, WET #1005 - #1061
1шт.
*
77FQ-35002
HEAD GUARD TOTAL SUB
HDF50-7, WET #1062
1шт.
*
77FQ-35000
HEAD GUARD TOTAL SUB
HDF70-7, WET #1001 - #1013
1шт.
*
77FQ-35001
HEAD GUARD TOTAL SUB
HDF70-7, WET #1014 - #1202
1шт.
*
77FQ-35002
HEAD GUARD TOTAL SUB
HDF70-7, WET #1203
1шт.
*
77FQ-35010
HEAD GUARD TOTAL SUB
HDF50-7, DRY #1001 - #1004
1шт.
*
77FQ-35011
HEAD GUARD TOTAL SUB
HDF50-7, DRY #1005 - #1061
1шт.
*
77FQ-35012
HEAD GUARD TOTAL SUB
HDF50-7, DRY #1062
1шт.
*
77FQ-35010
HEAD GUARD TOTAL SUB
HDF70-7, DRY #1001 - #1013
1шт.
*
77FQ-35011
HEAD GUARD TOTAL SUB
HDF70-7, DRY #1014 - #1202
1шт.
*
77FQ-35012
HEAD GUARD TOTAL SUB
HDF70-7, DRY #1203
1шт.
1
77FQ-30001
HEAD GUARD SUB ASSY
6041, HDF50-7 #1004
1шт.
1
77FQ-30002
HEAD GUARD SUB ASSY
6041, HDF50-7 #1005 - #1061
1шт.
1
77FQ-30003
HEAD GUARD SUB ASSY
6041, HDF50-7 #1062
1шт.
1
77FQ-30001
HEAD GUARD SUB ASSY
6041, HDF70-7 #1013
1шт.
1
77FQ-30002
HEAD GUARD SUB ASSY
6041, HDF70-7 #1014 - #1202
1шт.
1
77FQ-30003
HEAD GUARD SUB ASSY
6041, HDF70-7 #1203
1шт.
2
77FQ-15010
BODY SUB ASSY
SEE 6035
1шт.
3
70FQ-20102
STEERING COLUMN
SEE 5030
1шт.
4
20FQ-07020
DASHBOARD ELEC SUB
SEE 2015
1шт.
5
37FQ-10100
HYD STEER SUB ASSY
SEE 3066
1шт.
6
@
PARKING SUB ASSY
NOT #1004
1шт.
6
@
PARKING SUB ASSY
NOT #1005 - #1061
1шт.
6
@
PARKING SUB ASSY
NOT #1062
1шт.
6
@
PARKING SUB ASSY
NOT #1013
1шт.
6
@
PARKING SUB ASSY
NOT #1014 - #1202
1шт.
6
@
PARKING SUB ASSY
NOT #1203
1шт.
6
@
PARKING SUB ASSY
NOT #1004
1шт.
6
@
PARKING SUB ASSY
NOT #1005 - #1061
1шт.
6
@
PARKING SUB ASSY
NOT #1062
1шт.
6
@
PARKING SUB ASSY
NOT #1013
1шт.
6
@
PARKING SUB ASSY
NOT #1014 - #1202
1шт.
6
@
PARKING SUB ASSY
NOT #1203
1шт.
7
77FQ-30910
BRACKET-ECU
1шт.
10
FHC0904100
RUBBER-STAY
6шт.
Выбрано товаров: 39
