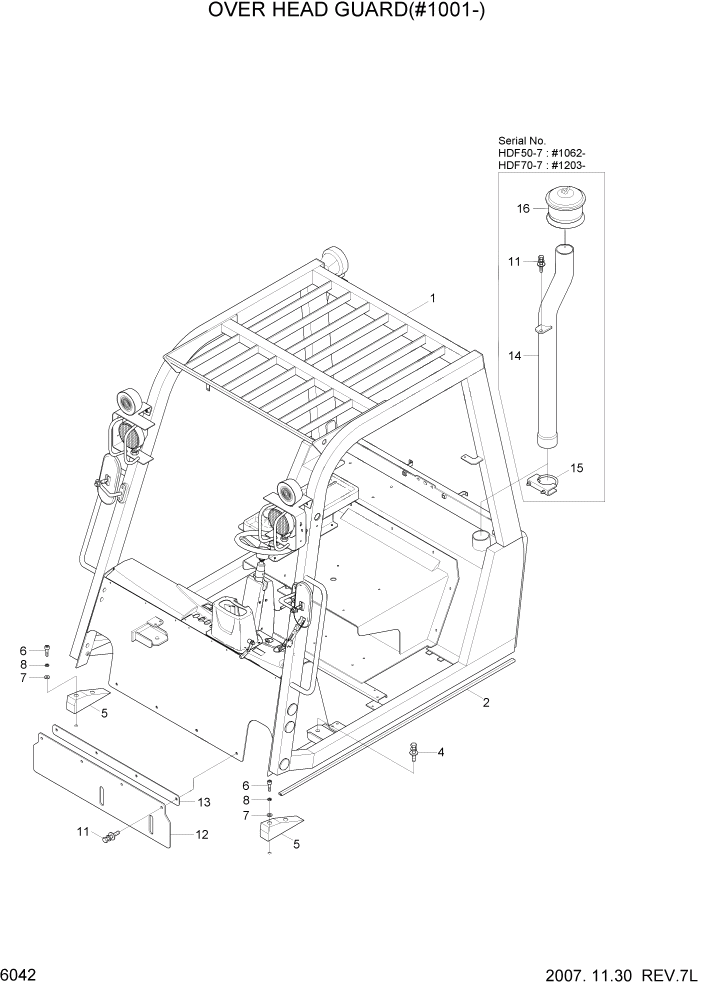

Запчасти Hyundai HDF50/HDF70-7 PAGE 6042 OVER HEAD GUARD(#1001-) СТРУКТУРА

Схема запчастей Hyundai HDF50/HDF70-7 - PAGE 6042 OVER HEAD GUARD(#1001-) СТРУКТУРА

Артикул

Название

Примечание

Количество

*

@

OVER HEAD GUARD

NOT

1шт.

1

77FQ-35000

HEAD GUARD TOTAL SUB

WET,5.0,SEE6043 #1001 - #1004

1шт.

1

77FQ-35001

HEAD GUARD TOTAL SUB

WET,5.0,SEE6043 #1005 - #1061

1шт.

1

77FQ-35002

HEAD GUARD TOTAL SUB

WET,5.0,SEE6043 #1062

1шт.

1

77FQ-35000

HEAD GUARD TOTAL SUB

WET,7.0,SEE6043 #1001 - #1013

1шт.

1

77FQ-35001

HEAD GUARD TOTAL SUB

WET,7.0,SEE6043 #1014 - #1202

1шт.

1

77FQ-35002

HEAD GUARD TOTAL SUB

WET,7.0,SEE6043 #1203

1шт.

1

77FQ-35010

HEAD GUARD TOTAL SUB

DRY,5.0,SEE6043 #1001 - #1004

1шт.

1

77FQ-35011

HEAD GUARD TOTAL SUB

DRY,5.0,SEE6043 #1005 - #1061

1шт.

1

77FQ-35012

HEAD GUARD TOTAL SUB

DRY,5.0,SEE6043 #1062

1шт.

1

77FQ-35010

HEAD GUARD TOTAL SUB

DRY,7.0,SEE6043 #1001 - #1013

1шт.

1

77FQ-35011

HEAD GUARD TOTAL SUB

DRY,7.0,SEE6043 #1014 - #1202

1шт.

1

77FQ-35012

HEAD GUARD TOTAL SUB

DRY,7.0,SEE6043 #1203

1шт.

2

77FQ-30950

SEAL-RUBBER

2шт.

4

S037-122526

BOLT-W/WASHER

4шт.

5

77FQ-30891

CUSHION-RUBBER

2шт.

6

S035-082026

BOLT-W/WASHER

4шт.

7

S403-08200B

WASHER-PLAIN

4шт.

8

S411-080006

WASHER-SPRING

4шт.

11

S035-082026

BOLT-W/WASHER

HDF50-7 #1061

4шт.

11

S035-082026

BOLT-W/WASHER

HDF50-7 #1062

5шт.

11

S035-082026

BOLT-W/WASHER

HDF70-7 #1202

4шт.

11

S035-082026

BOLT-W/WASHER

HDF70-7 #1203

5шт.

12

77FQ-30920

RUBBER-PLATE

1шт.

13

77FQ-30930

PLATE

1шт.

14

11FQ-20081

PIPE WA

HDF50-7 #1062

1шт.

14

11FQ-20081

PIPE WA

HDF70-7 #1203

1шт.

15

S170-760006

U-BOLT

HDF50-7 #1062

1шт.

15

S170-760006

U-BOLT

HDF70-7 #1203

1шт.

16

11FF-20030

PRECLEANER

HDF50-7 #1062

1шт.

16

11FF-20030

PRECLEANER

HDF70-7 #1203

1шт.

Выбрано товаров: 31
