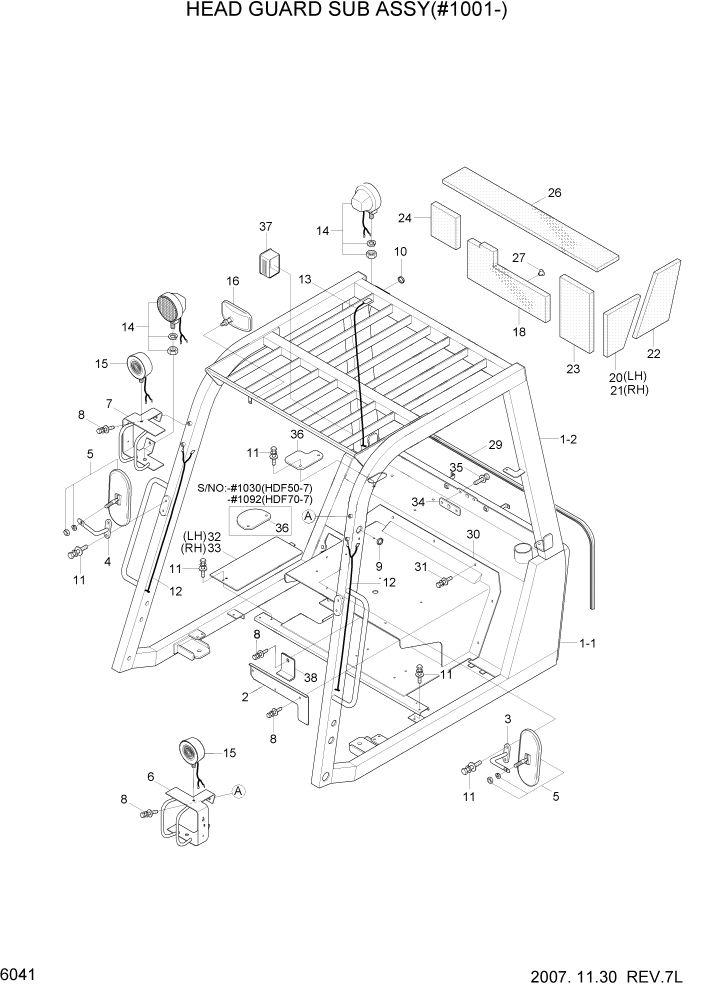

Запчасти Hyundai HDF50/HDF70-7 PAGE 6041 HEAD GUARD SUB ASSY(#1001-) СТРУКТУРА

*

77FQ-30001

HEAD GUARD SUB ASSY

HDF50-7 #1001 - #1004

1шт.

*

77FQ-30002

HEAD GUARD SUB ASSY

HDF50-7 #1005 - #1061

1шт.

*

77FQ-30003

HEAD GUARD SUB ASSY

HDF50-7 #1062

1шт.

*

77FQ-30001

HEAD GUARD SUB ASSY

HDF70-7 #1001 - #1013

1шт.

*

77FQ-30002

HEAD GUARD SUB ASSY

HDF70-7 #1014 - #1202

1шт.

*

77FQ-30003

HEAD GUARD SUB ASSY

HDF70-7 #1203

1шт.

1

77FQ-30011

HEAD GUARD ASSY

HDF50-7 #1061

1шт.

1

77FQ-30012

HEAD GUARD ASSY

HDF50-7 #1062

1шт.

1

77FQ-30011

HEAD GUARD ASSY

HDF70-7 #1202

1шт.

1

77FQ-30012

HEAD GUARD ASSY

HDF70-7 #1203

1шт.

1-1

77FQ-30031

OHG WA-BOTTOM

HDF50-7 #1061

1шт.

1-1

77FQ-30032

OHG WA-BOTTOM

HDF50-7 #1062

1шт.

1-1

77FQ-30031

OHG WA-BOTTOM

HDF70-7 #1202

1шт.

1-1

77FQ-30032

OHG WA-BOTTOM

HDF70-7 #1203

1шт.

1-2

75FQ-30020

OHG WA-TOP

HDF50-7 #1061

1шт.

1-2

75FQ-30021

OHG WA-TOP

HDF50-7 #1062

1шт.

1-2

75FQ-30020

OHG WA-TOP

HDF70-7 #1202

1шт.

1-2

75FQ-30021

OHG WA-TOP

HDF70-7 #1203

1шт.

1-3

S037-123526

BOLT-W/WASHER

HDF50-7 #1061

2шт.

1-3

S037-123526

BOLT-W/WASHER

HDF70-7 #1202

2шт.

1-4

S037-123026

BOLT-W/WASHER

HDF50-7 #1061

2шт.

1-4

S037-123026

BOLT-W/WASHER

HDF70-7 #1202

2шт.

2

71FQ-10531

PLATE

1шт.

3

71FF-30091

STAY-MIRROR,LH

1шт.

4

71FF-30101

STAY-MIRROR,RH

1шт.

5

71N8-46000

MIRROR

2шт.

6

71FF-30470

PROTECTOR-LH

1шт.

7

71FF-30460

PROTECTOR-RH

1шт.

8

S035-081526

BOLT-W/WASHER

9шт.

9

S681-190400

GROMMET

5шт.

10

ED03020000

GROMMET

1шт.

11

S035-082026

BOLT-W/WASHER

7шт.

12

F14800050

HARNESS-SUPPORT,LH

2шт.

13

21FJ-10080

HARNESS-REAR SUPPORT

1шт.

14

21FV-10510

LAMP-WORK

3шт.

15

21FF-10120

LAMP-FLASHER

2шт.

15-1

265134251

BULB

NOT SHOWN

1шт.

16

71L1-3377

MIRROR-ROOM

1шт.

18

77FQ-30300

SPONGE(1)

1шт.

20

77FQ-30310

SPONGE(3)

1шт.

21

77FQ-30330

SPONGE(4)

1шт.

22

71FQ-30340

SPONGE

1шт.

23

71FQ-30350

SPONGE

1шт.

24

77FQ-30360

SPONGE(7)

1шт.

26

71FQ-30380

SPONGE

1шт.

27

71EM-51580

CAP-STUD BOLT

15шт.

29

S771-023000

WEATHER STRIP

1шт.

30

77FQ-30161

PLATE-SEAT WA

HDF50-7 #1004

1шт.

30

77FQ-30162

PLATE-SEAT WA

HDF50-7 #1005

1шт.

30

77FQ-30161

PLATE-SEAT WA

HDF70-7 #1013

1шт.

30

77FQ-30162

PLATE-SEAT WA

HDF70-7 #1014

1шт.

31

S035-082026

BOLT-W/WASHER

6шт.

32

77FQ-10500

PLATE(LH)

1шт.

33

77FQ-10511

PLATE(RH)

1шт.

34

71FQ-30410

PLATE

1шт.

35

S035-062546

BOLT-W/WASHER

2шт.

36

77FQ-10550

COVER PLATE

HDF50-7 #1030

1шт.

36

77FQ-10551

COVER PLATE

HDF50-7 #1031

1шт.

36

77FQ-10550

COVER PLATE

HDF70-7 #1092

1шт.

36

77FQ-10551

COVER PLATE

HDF70-7 #1093

1шт.

37

71FH-30030

CAP

HDF50-7 #1030

2шт.

37

71FH-30030

CAP

HDF50-7 #1031

1шт.

37

71FH-30030

CAP

HDF70-7 #1092

2шт.

37

71FH-30030

CAP

HDF70-7 #1093

1шт.

38

77FQ-10560

COVER-SENSOR

HDF50-7 #1005

1шт.

38

77FQ-10560

COVER-SENSOR

HDF70-7 #1014

1шт.
