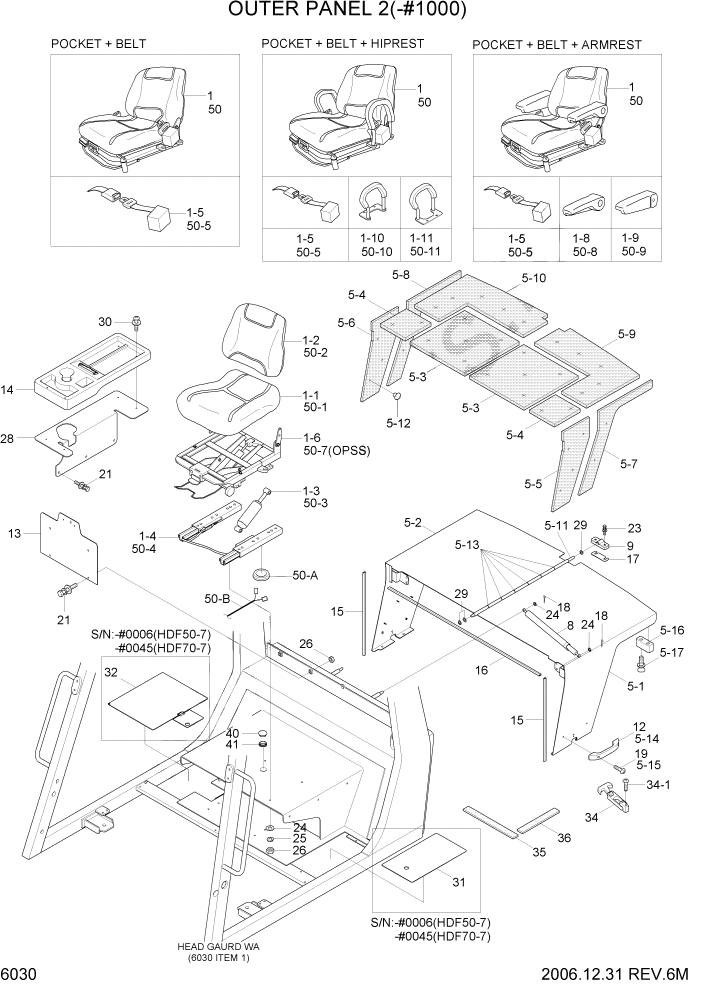

Запчасти Hyundai HDF50/HDF70-7 PAGE 6030 OUTER PANEL 2(-#1000) СТРУКТУРА
№
Артикул
Название
Примечание
Количество
1
71FG-10520
SEAT ASSY(PKT)
PKT
1шт.
1
71FG-10530
SEAT ASSY(PKT+BT)
PKT+BT
1шт.
1
71FG-10540
SEAT ASSY(PKT+BT+AR)
PKT+BT+AR
1шт.
1
71FG-10550
SEAT ASSY(PKT+BT+HR)
PKT+BT+HR
1шт.
1-1
H31013-100
CUSION ASSY
#0001
1шт.
1-2
H31013-200
BACK ASSY
#0001
1шт.
1-3
H31013-360
SHOCK ABSORBER ASSY
#0001
1шт.
1-4
H31013-600
SIDE TRACK ASSY
#0001
1шт.
1-5
89890-8A610
BELT-SEAT
WITH BELT #0001
1шт.
1-6
H31023-300
SUSPENSION ASSY
#0001
1шт.
1-8
H31010-500
ARM RESTRAINT-LH
WITH ARM-REST #0001
1шт.
1-9
H31015-500
ARM RESTRAINT-RH
WITH ARM-REST #0001
1шт.
1-1
H31010-700
HIP RESTRAINT-LH
WITH HIP-REST #0001
1шт.
1-11
H31015-700
HIP RESTRAINT-RH
WITH HIP-REST #0001
1шт.
5
71FQ-10702
RADIATOR COVER SUB
HDF50-7
1шт.
5
71FQ-10701
RADIATOR COVER SUB
HDF70-7 #0004
1шт.
5
71FQ-10702
RADIATOR COVER SUB
HDF70-7 #0005
1шт.
5-1
71FQ-10173
COVER-RADIATOR(LH)
HDF50-7
1шт.
5-1
71FQ-10172
COVER-RADIATOR(LH)
HDF70-7 #0004
1шт.
5-1
71FQ-10173
COVER-RADIATOR(LH)
HDF70-7 #0005
1шт.
5-2
71FQ-10183
COVER-RADIATOR(RH)
HDF50-7
1шт.
5-2
71FQ-10182
COVER-RADIATOR(RH)
HDF70-7 #0004
1шт.
5-2
71FQ-10183
COVER-RADIATOR(RH)
HDF70-7 #0005
1шт.
5-3
71FQ-10711
SPONGE
2шт.
5-4
71FQ-10721
SPONGE
2шт.
5-5
71FQ-10732
SPONGE
HDF50-7
1шт.
5-5
71FQ-10731
SPONGE
HDF70-7 #0004
1шт.
5-5
71FQ-10732
SPONGE
HDF70-7 #0005
1шт.
5-6
71FQ-10742
SPONGE
HDF50-7
1шт.
5-6
71FQ-10741
SPONGE
HDF70-7 #0004
1шт.
5-6
71FQ-10742
SPONGE
HDF70-7 #0005
1шт.
5-7
71FQ-10752
SPONGE
HDF50-7
1шт.
5-7
71FQ-10751
SPONGE
HDF70-7 #0004
1шт.
5-7
71FQ-10752
SPONGE
HDF70-7 #0005
1шт.
5-8
71FQ-10762
SPONGE
HDF50-7
1шт.
5-8
71FQ-10761
SPONGE
HDF70-7 #0004
1шт.
5-8
71FQ-10762
SPONGE
HDF70-7 #0005
1шт.
5-9
71FQ-10772
SPONGE
HDF50-7
1шт.
5-9
71FQ-10771
SPONGE
HDF70-7 #0004
1шт.
5-9
71FQ-10772
SPONGE
HDF70-7 #0005
1шт.
5-1
71FQ-10782
SPONGE
HDF50-7
1шт.
5-1
71FQ-10781
SPONGE
HDF70-7 #0004
1шт.
5-1
71FQ-10782
SPONGE
HDF70-7 #0005
1шт.
5-11
71FQ-10581
ROD
1шт.
5-14
E171-1147
HANDLE
HDF50-7
2шт.
5-14
E171-1147
HANDLE
HDF70-7 #0005
2шт.
5-16
F12100190
CUSHION
HDF50-7
2шт.
5-16
F12100190
CUSHION
HDF70-7 #0005
2шт.
5-17
S132-051526
SCREW-W/WASHER C/RD
HDF50-7
4шт.
5-17
S132-051526
SCREW-W/WASHER C/RD
HDF70-7 #0005
4шт.
8
71FQ-10221
GAS SPRING
2шт.
9
71FQ-10641
CLAMP
1шт.
12
E171-1147
HANDLE
HDF70-7 #0004
2шт.
13
71FQ-10310
LICENSE PLATE
KOREA
1шт.
13
71FQ-10810
LICENSE PLATE
CABIN
1шт.
14
71FQ-10321
TRAY ASSY
HDF50-7 #0139
1шт.
14
71FQ-10322
TRAY ASSY
HDF50-7 #0140
1шт.
14
71FQ-10321
TRAY ASSY
HDF70-7 #0263
1шт.
14
71FQ-10322
TRAY ASSY
HDF70-7 #0264
1шт.
15
S771-002500
WEATHER STRIP
2шт.
16
S771-003300
WEATHER STRIP
1шт.
17
71FQ-10241
SHIM(1.6T)
1.6T
1шт.
17
71FQ-10251
SHIM(3.2T)
3.2T
1шт.
18
S501-110002
PIN-SELF LOCKING
4шт.
24
S403-082006
WASHER-PLAIN
8шт.
25
S411-080006
WASHER-SPRING
4шт.
26
S205-081006
NUT-HEX
4шт.
28
71FQ-10361
BRACKET-TRAY
1шт.
30
S141-060156
SCREW-CROSS R/FLAT
4шт.
31
71FQ-10501
PLATE(LH)
HDF50-7 #0006
1шт.
31
71FQ-10500
PLATE(LH)
HDF70-7 #0004
1шт.
31
71FQ-10501
PLATE(LH)
HDF70-7 #0005 - #0045
1шт.
32
71FQ-10511
PLATE(RH)
HDF50-7 #0006
1шт.
32
71FQ-10510
PLATE(RH)
HDF70-7 #0004
1шт.
32
71FQ-10511
PLATE(RH)
HDF70-7 #0005 - #0045
1шт.
34
71FK-10150
LATCH
HDF50-7
2шт.
34
71FK-10150
LATCH
HDF70-7 #0005
2шт.
34-1
S131-052066
SCREW-W/WASHER
HDF50-7
2шт.
34-1
S131-052066
SCREW-W/WASHER
HDF70-7 #0005
2шт.
35
41FQ-00460
SEAL-RUBBER
HDF50-7 #0007 - #0067
2шт.
35
41FQ-00461
SEAL-RUBBER
HDF50-7 #0068
2шт.
35
41FQ-00460
SEAL-RUBBER
HDF70-7 #0046 - #0153
2шт.
35
41FQ-00461
SEAL-RUBBER
HDF70-7 #0154
2шт.
36
41FQ-00470
SEAL-RUBBER
HDF50-7 #0007 - #0067
2шт.
36
41FQ-00471
SEAL-RUBBER
HDF50-7 #0068
2шт.
36
41FQ-00470
SEAL-RUBBER
HDF70-7 #0046 - #0153
2шт.
36
41FQ-00471
SEAL-RUBBER
HDF70-7 #0154
2шт.
40
FHC0904100
RUBBER-STAY
HDF50-7,OPSS #0051
1шт.
40
FHC0904100
RUBBER-STAY
HDF70-7,OPSS #0112
1шт.
41
S681-230800
GROMMET
HDF50-7,OPSS #0051
1шт.
41
S681-230800
GROMMET
HDF70-7,OPSS #0112
1шт.
50
71FH-10510
SEAT ASSY(PKT)
HDF50-7,OPSS #0051
1шт.
50
71FH-10510
SEAT ASSY(PKT)
HDF70-7,OPSS #0112
1шт.
50
71FH-10520
SEAT ASSY(PKT+BT)
HDF50-7,OPSS #0051
1шт.
50
71FH-10520
SEAT ASSY(PKT+BT)
HDF70-7,OPSS #0112
1шт.
50
71FH-10530
SEAT ASSY(PKT+BT+HR)
HDF50-7,OPSS #0051
1шт.
50
71FH-10530
SEAT ASSY(PKT+BT+HR)
HDF70-7,OPSS #0112
1шт.
50
71FH-10540
SEAT ASSY(PKT+BT+AR)
HDF50-7,OPSS #0051
1шт.
50
71FH-10540
SEAT ASSY(PKT+BT+AR)
HDF70-7,OPSS #0112
1шт.
50-A
310006540
SWITCH-SEAT
HDF50-7,OPSS #0051
1шт.
50-A
310006540
SWITCH-SEAT
HDF70-7,OPSS #0112
1шт.
50-B
B51800050
HARNESS-SEAT
HDF50-7,OPSS #0051
1шт.
50-B
B51800050
HARNESS-SEAT
HDF70-7,OPSS #0112
1шт.
50-1
H31013-100
CUSION ASSY
HDF50-7 #0051
1шт.
50-1
H31013-100
CUSION ASSY
HDF70-7 #0112
1шт.
50-2
H31013-200
BACK ASSY
HDF50-7 #0051
1шт.
50-2
H31013-200
BACK ASSY
HDF70-7 #0112
1шт.
50-3
H31013-360
SHOCK ABSORBER ASSY
HDF50-7 #0051
1шт.
50-3
H31013-360
SHOCK ABSORBER ASSY
HDF70-7 #0112
1шт.
50-4
H31013-600
SIDE TRACK ASSY
HDF50-7 #0051
1шт.
50-4
H31013-600
SIDE TRACK ASSY
HDF70-7 #0112
1шт.
50-5
89890-8A610
BELT-SEAT
HDF50-7, BT #0051
1шт.
50-5
89890-8A610
BELT-SEAT
HDF70-7, BT #0112
1шт.
50-7
H31023-301
SUSPENSION
HDF50-7 #0051
1шт.
50-7
H31023-301
SUSPENSION
HDF70-7 #0112
1шт.
50-8
H31010-500
ARM RESTRAINT-LH
HDF50-7, AR #0051
1шт.
50-8
H31010-500
ARM RESTRAINT-LH
HDF70-7, AR #0112
1шт.
50-9
H31015-500
ARM RESTRAINT-RH
HDF50-7, AR #0051
1шт.
50-9
H31015-500
ARM RESTRAINT-RH
HDF70-7, AR #0112
1шт.
50-1
H31010-700
HIP RESTRAINT-LH
HDF50-7, HR #0051
1шт.
50-1
H31010-700
HIP RESTRAINT-LH
HDF70-7, HR #0112
1шт.
50-11
H31015-700
HIP RESTRAINT-RH
HDF50-7, HR #0051
1шт.
50-11
H31015-700
HIP RESTRAINT-RH
HDF70-7, HR #0112
1шт.
Выбрано товаров: 131
