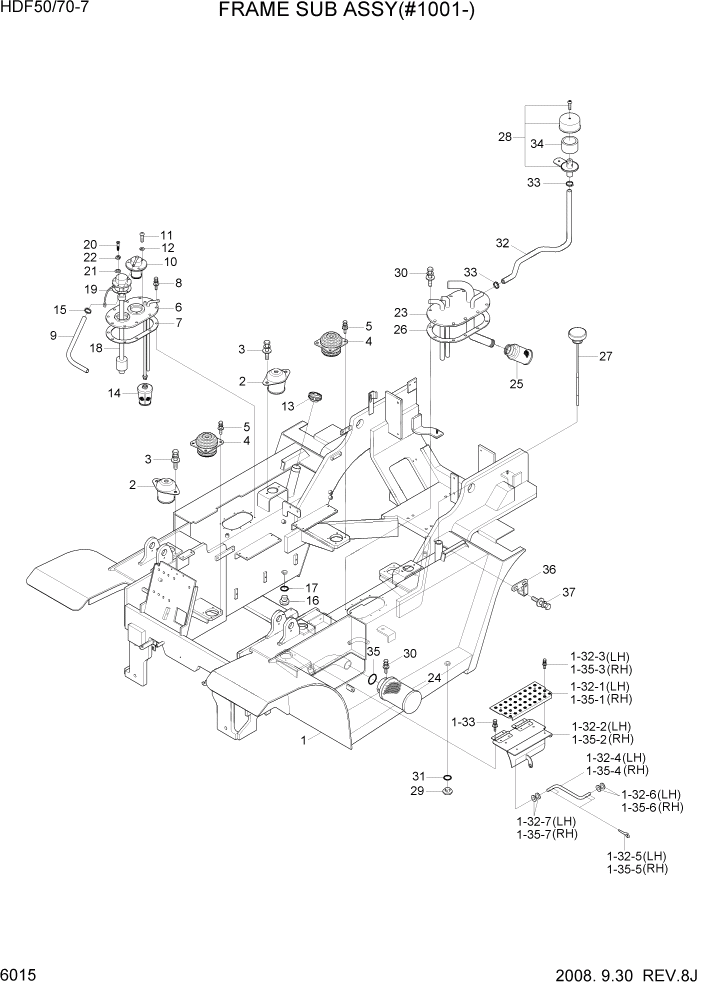

Запчасти Hyundai HDF50/HDF70-7 PAGE 6015 FRAME SUB ASSY(#1001-) СТРУКТУРА

*

41FQ-10200

FRAME SUB ASSY

HDF50-7 #1001 - #1182

1шт.

*

41FQ-10201

FRAME SUB ASSY

HDF50-7 #1183 - #1196

1шт.

*

41FQ-10202

FRAME SUB ASSY

HDF50-7 #1197

1шт.

*

41FQ-10200

FRAME SUB ASSY

HDF70-7 #1001 - #1541

1шт.

*

41FQ-10201

FRAME SUB ASSY

HDF70-7 #1542 - #1664

1шт.

*

41FQ-10202

FRAME SUB ASSY

HDF70-7 #1665

1шт.

1

45FQ-00013

FRAME WA

HDF50-7 #1196

1шт.

1

45FQ-00014

FRAME WA

HDF50-7 #1197

1шт.

1

45FQ-00013

FRAME WA

HDF70-7 #1664

1шт.

1

45FQ-00014

FRAME WA

HDF70-7 #1665

1шт.

1-32

41FQ-00212

STEP ASSY-SECOND(LH)

1шт.

1-32-1

41FQ-00220

COVER-STEP

1шт.

1-32-2

41FQ-00232

COVER-WA

1шт.

1-32-3

S035-081526

BOLT-W/WASHER

4шт.

1-32-4

41FQ-00212-4

ROUND-BAR

1шт.

1-32-5

S461-160162

PIN-SPLIT

1шт.

1-32-6

S403-065002

WASHER-PLAIN

2шт.

1-32-7

S403-062002

WASHER-PLAIN

2шт.

1-33

S035-081526

BOLT-W/WASHER

8шт.

1-35

41FQ-00431

STEP ASSY-SECOND(RH)

1шт.

1-35-1

41FQ-00431

STEP ASSY-SECOND(RH)

1шт.

1-35-2

41FQ-00441

COVER-WA

1шт.

1-35-3

S035-081526

BOLT-W/WASHER

4шт.

1-35-4

41FQ-00431-4

ROUND-BAR

1шт.

1-35-5

S461-160162

PIN-SPLIT

4шт.

1-35-6

S403-065002

WASHER-PLAIN

2шт.

1-35-7

S403-062002

WASHER-PLAIN

2шт.

2

71HA-30800

MOUNT-HEAD GUARD

4шт.

3

S037-102526

BOLT-W/WASHER

8шт.

4

F12200180

RUBBER-MOUNTING

4шт.

5

S035-082526

BOLT-W/WASHER

16шт.

6

11FQ-50010

COVER-FUEL

HDF50-7 #1182

1шт.

6

11FQ-50011

COVER-FUEL

HDF50-7 #1183

1шт.

6

11FQ-50010

COVER-FUEL

HDF70-7 #1541

1шт.

6

11FQ-50011

COVER-FUEL

HDF70-7 #1542

1шт.

7

11FQ-50020

GASKET

1шт.

8

S035-082026

BOLT-W/WASHER

10шт.

9

11FA-52080

HOSE ASSY

1шт.

10

11FA-50300

FUEL CUT VALVE

1шт.

11

S151-050156

SCREW-TAPPING

HDF50-7 #1182

3шт.

11

S151-050106

SCREW-TAPPING

HDF50-7 #1183

3шт.

11

S151-050156

SCREW-TAPPING

HDF70-7 #1541

3шт.

11

S151-050106

SCREW-TAPPING

HDF70-7 #1542

3шт.

12

S411-050006

WASHER-SPRING

3шт.

13

11S2-00180

CAP-FILLER

1шт.

14

11FA-50900

STRAINER

1шт.

15

S520-015000

CLAMP-HOSE

1шт.

16

31FA-30430

PLUG-MAGNETIC

1шт.

17

S631-014004

O-RING

1шт.

18

21FQ-10311

SENDER-FUEL

1шт.

19

E128-1053

GASKET

1шт.

20

S151-040156

SCREW-TAPPING

5шт.

21

S403-042006

WASHER-PLAIN

5шт.

22

S411-040006

WASHER-SPRING

5шт.

23

37FQ-30010

FLANGE WA-TANK

1шт.

24

F14650010

FILTER-SUCTION

1шт.

25

904738400

RETURN FILTER

1шт.

26

31FQ-30020

GASKET

1шт.

27

31FQ-30040

CAP-HYD OIL

1шт.

28

31FV-30031

CAP-AIR BREATHER

1шт.

29

31FA-30430

PLUG-MAGNETIC

1шт.

30

S035-082026

BOLT-W/WASHER

12шт.

31

S631-014004

O-RING

1шт.

32

31FF-81630

HOSE-RUBBER

1шт.

33

S520-027000

CLAMP-HOSE

2шт.

34

F23650200

FILTER-AIR BREATHER

1шт.

35

S632-055004

O-RING

1шт.

36

41FQ-00421

PLATE-TAPPED

HDF50-7 #1012

2шт.

36

41FQ-00421

PLATE-TAPPED

HDF70-7 #1023

2шт.

37

S035-062026

BOLT-W/WASHER

HDF50-7 #1012

4шт.

37

S035-062026

BOLT-W/WASHER

HDF70-7 #1023

4шт.
