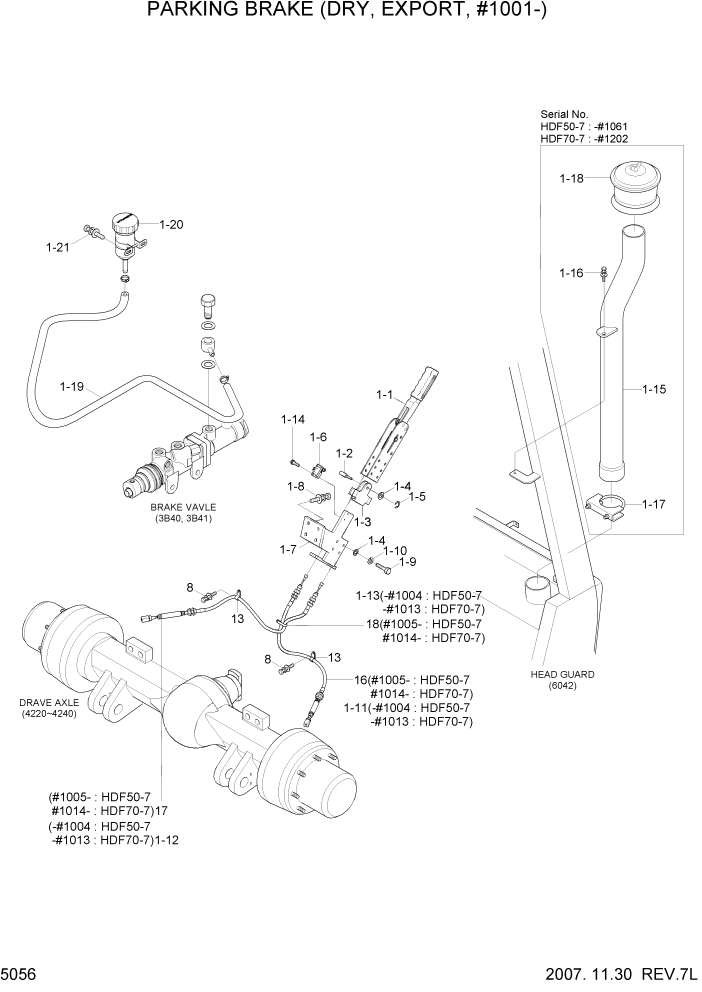

Запчасти Hyundai HDF50/HDF70-7 PAGE 5056 PARKING BRAKE(DRY,EXPORT,#1001-) СИСТЕМА УПРАВЛЕНИЯ

1

@

PARKING SUB ASSY

NOT #1001 - #1004

1шт.

1

@

PARKING SUB ASSY

NOT #1005 - #1061

1шт.

1

@

PARKING SUB ASSY

NOT #1062

1шт.

1

@

PARKING SUB ASSY

NOT #1001 - #1013

1шт.

1

@

PARKING SUB ASSY

NOT #1014 - #1202

1шт.

1

@

PARKING SUB ASSY

NOT #1203

1шт.

1-1

81FQ-70010

PARKING LEVER ASSY

HDF50-7 #1057

1шт.

1-1

81FQ-70011

PARKING LEVER ASSY

HDF50-7 #1058

1шт.

1-1

81FQ-70010

PARKING LEVER ASSY

HDF70-7 #1185

1шт.

1-1

81FQ-70011

PARKING LEVER ASSY

HDF70-7 #1186

1шт.

1-2

81FQ-70051

PIN

1шт.

1-3

81FQ-70061

CONNECTOR

1шт.

1-4

S403-08200B

WASHER-PLAIN

5шт.

1-5

P560-070006

RETAINING RING-E TYPE

1шт.

1-6

21FV-10250

PARKING SWITCH ASSY

1шт.

1-7

81FQ-70041

BRACKET

1шт.

1-8

S035-082526

BOLT-W/WASHER

4шт.

1-9

S015-080456

BOLT-HEX

4шт.

1-1

S411-080006

WASHER-SPRING

4шт.

1-11

81FQ-70311

CABLE-PARKING LH

HDF50-7 #1004

1шт.

1-11

81FQ-70311

CABLE-PARKING LH

HDF70-7 #1013

1шт.

1-12

81FQ-70321

CABLE-PARKING RH

HDF50-7 #1004

1шт.

1-12

81FQ-70321

CABLE-PARKING RH

HDF70-7 #1013

1шт.

1-13

S543-240002

CLAMP-TUBE

HDF50-7 #1004

1шт.

1-13

S543-240002

CLAMP-TUBE

HDF70-7 #1013

1шт.

1-14

S131-043046

SCREW-W/WASHER

2шт.

1-15

11FQ-20081

PIPE WA

HDF50-7,SEE6042 #1061

1шт.

1-15

11FQ-20081

PIPE WA

HDF70-7,SEE6042 #1202

1шт.

1-16

S035-082026

BOLT-W/WASHER

HDF50-7,SEE6042 #1061

1шт.

1-16

S035-082026

BOLT-W/WASHER

HDF70-7,SEE6042 #1202

1шт.

1-17

S170-760006

U-BOLT

HDF50-7,SEE6042 #1061

1шт.

1-17

S170-760006

U-BOLT

HDF70-7,SEE6042 #1202

1шт.

1-18

11FF-20030

PRECLEANER

HDF50-7,SEE6042 #1061

1шт.

1-18

11FF-20030

PRECLEANER

HDF70-7,SEE6042 #1202

1шт.

1-19

81FF-40130

BULK HOSE

1шт.

1-2

81FQ-40220

RESERVOIR TANK ASSY

1шт.

1-21

S035-061526

BOLT-W/WASHER

2шт.

8

S035-082526

BOLT-W/WASHER

2шт.

13

S543-120002

CLAMP-TUBE

2шт.

16

81FQ-70311

CABLE-PARKING LH

HDF50-7 #1005

1шт.

16

81FQ-70311

CABLE-PARKING LH

HDF70-7 #1014

1шт.

17

81FQ-70321

CABLE-PARKING RH

HDF50-7 #1005

1шт.

17

81FQ-70321

CABLE-PARKING RH

HDF70-7 #1014

1шт.

18

S543-240002

CLAMP-TUBE

HDF50-7 #1005

1шт.

18

S543-240002

CLAMP-TUBE

HDF70-7 #1014

1шт.
