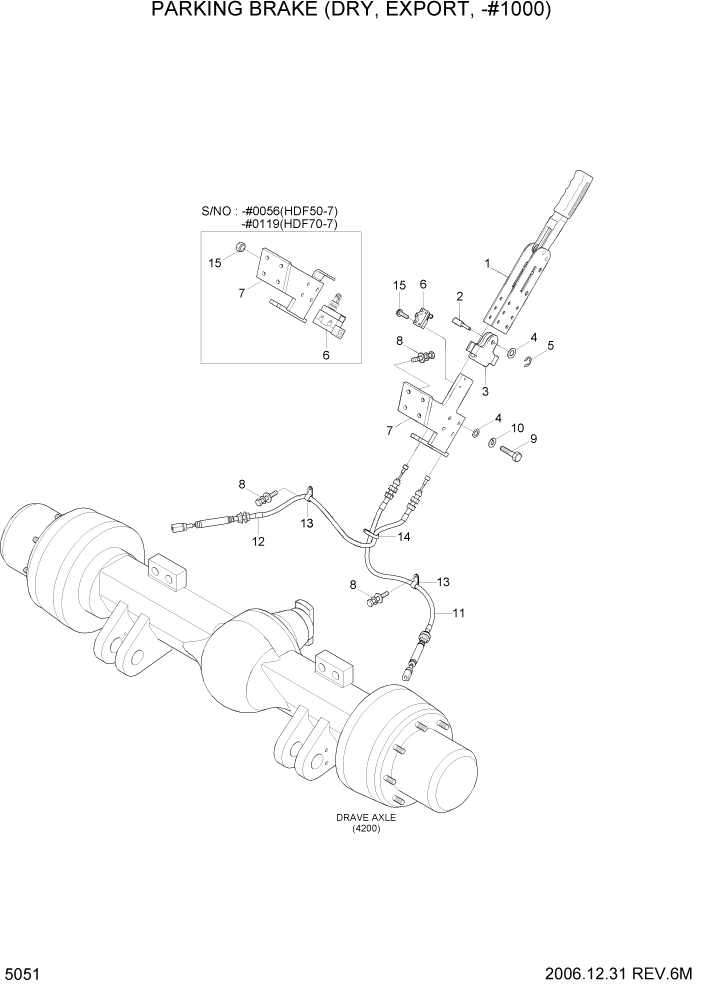

Запчасти Hyundai HDF50/HDF70-7 PAGE 5051 PARKING BRAKE(DRY,EXPORT,-#1000) СИСТЕМА УПРАВЛЕНИЯ

1

81FQ-70010

PARKING LEVER ASSY

1шт.

2

81FQ-70050

PIN

HDF50-7 #0139

1шт.

2

81FQ-70051

PIN

HDF50-7 #0140

1шт.

2

81FQ-70050

PIN

HDF70-7 #0261

1шт.

2

81FQ-70051

PIN

HDF70-7 #0262

1шт.

3

81FQ-70061

CONNECTOR

#0001

1шт.

4

S403-082006

WASHER-PLAIN

5шт.

5

P560-070006

RETAINING RING-E TYPE

1шт.

6

21FQ-10401

PARKING SWITCH ASSY

HDF50-7 #0056

1шт.

6

21FV-10250

PARKING SWITCH ASSY

HDF50-7 #0057

1шт.

6

21FQ-10401

PARKING SWITCH ASSY

HDF70-7 #0119

1шт.

6

21FV-10250

PARKING SWITCH ASSY

HDF70-7 #0120

1шт.

7

81FQ-70040

BRACKET

HDF50-7 #0056

1шт.

7

81FQ-70041

BRACKET

HDF50-7 #0057

1шт.

7

81FQ-70040

BRACKET

HDF70-7 #0119

1шт.

7

81FQ-70041

BRACKET

HDF70-7 #0120

1шт.

8

S035-082526

BOLT-W/WASHER

6шт.

9

S015-080456

BOLT-HEX

4шт.

10

S411-080006

WASHER-SPRING

4шт.

11

81FQ-70311

CABLE-PARKING LH

1шт.

12

81FQ-70321

CABLE-PARKING RH

1шт.

13

S543-120002

CLAMP-TUBE

2шт.

14

S543-240002

CLAMP-TUBE

1шт.

15

6600067800

NUT-HEX

HDF50-7 #0056

2шт.

15

S131-043046

SCREW-W/WASHER

HDF50-7 #0057

2шт.

15

6600067800

NUT-HEX

HDF70-7 #0119

2шт.

15

S131-043046

SCREW-W/WASHER

HDF70-7 #0120

2шт.
