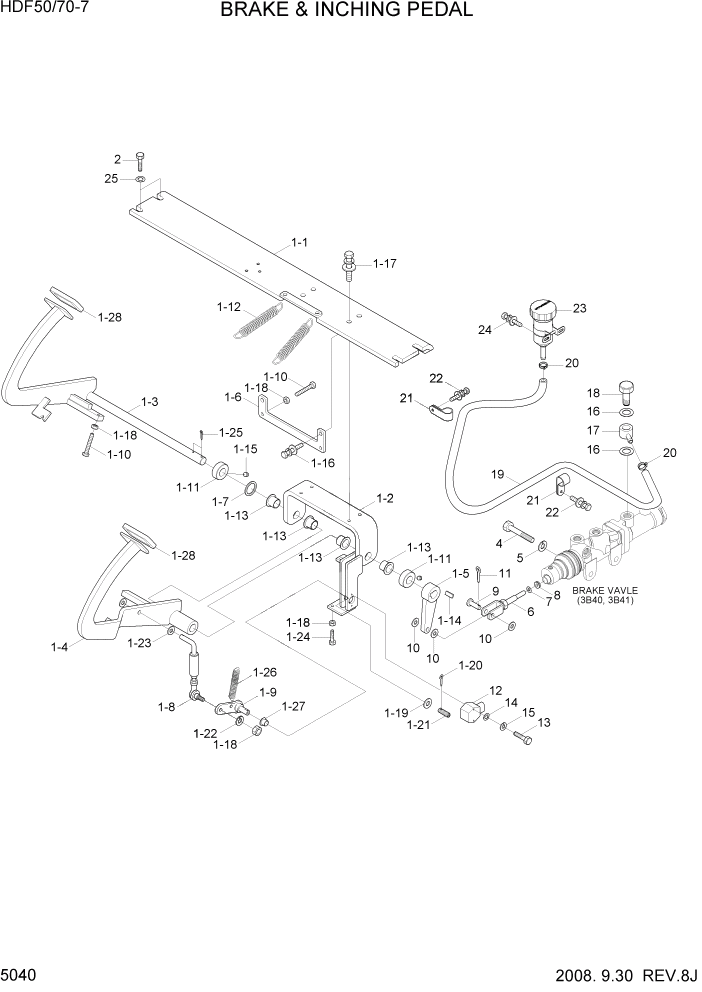

Запчасти Hyundai HDF50/HDF70-7 PAGE 5040 BRAKE & INCHING PEDAL СИСТЕМА УПРАВЛЕНИЯ

1

81FQ-40300

BRACKET & PEDAL ASSY

HDF50-7 #0103

1шт.

1

81FQ-40301

BRACKET & PEDAL ASSY

HDF50-7 #0104 - #1196

1шт.

1

81FQ-45110

BRACKET & PEDAL ASSY

HDF50-7 #1197

1шт.

1

81FQ-40300

BRACKET & PEDAL ASSY

HDF70-7 #0200

1шт.

1

81FQ-40301

BRACKET & PEDAL ASSY

HDF70-7 #0201 - #1664

1шт.

1

81FQ-45110

BRACKET & PEDAL ASSY

HDF70-7 #1665

1шт.

1-1

81FQ-40021

BRACKET-CROSS

HDF50-7 #1196

1шт.

1-1

81FQ-45170

BRACKET-CROSS

HDF50-7 #1197

1шт.

1-1

81FQ-40021

BRACKET-CROSS

HDF70-7 #1664

1шт.

1-1

81FQ-45170

BRACKET-CROSS

HDF70-7 #1665

1шт.

1-2

81FQ-40310

BRACKET WA

1шт.

1-3

81FQ-40060

BRAKE PEDAL WA

HDF50-7 #0103

1шт.

1-3

81FQ-40061

BRAKE PEDAL WA

HDF50-7 #0104 - #1196

1шт.

1-3

81FQ-45120

BRAKE PEDAL WA

HDF50-7 #1197

1шт.

1-3

81FQ-40060

BRAKE PEDAL WA

HDF70-7 #0200

1шт.

1-3

81FQ-40061

BRAKE PEDAL WA

HDF70-7 #0201 - #1664

1шт.

1-3

81FQ-45120

BRAKE PEDAL WA

HDF70-7 #1665

1шт.

1-4

81FQ-40320

INCHING PEDAL WA

HDF50-7 #1196

1шт.

1-4

81FQ-45130

INCHING PEDAL WA

HDF50-7 #1197

1шт.

1-4

81FQ-40320

INCHING PEDAL WA

HDF70-7 #1664

1шт.

1-4

81FQ-45130

INCHING PEDAL WA

HDF70-7 #1665

1шт.

1-5

81FQ-40130

LEVER WA

1шт.

1-6

81FQ-40140

PLATE

1шт.

1-7

P560-190002

RETAINING RING-E TYPE

HDF50-7 #1197

1шт.

1-7

P560-190002

RETAINING RING-E TYPE

HDF70-7 #1665

1шт.

1-8

81FQ-40330

LINK ASSY

1шт.

1-9

81FQ-40340

LEVER WA

1шт.

1-1

81FC-40300

SPECIAL-BOLT

3шт.

1-11

81FB-40070

RING

2шт.

1-12

FAC0600390-01

SPRING

2шт.

1-13

S741-201031

DU BUSINGH-FLANGE

4шт.

1-14

S671-080716

KEY-SUNK

1шт.

1-15

S112-080104

SCREW-SET HEX SOCKET

3шт.

1-16

S035-082526

BOLT-W/WASHER

2шт.

1-17

S037-103026

BOLT-W/WASHER

4шт.

1-18

S203-081006

NUT-HEX

5шт.

1-19

S403-121006

WASHER-PLAIN

1шт.

1-2

S461-200152

PIN-SPLIT

2шт.

1-21

S112-030044

SCREW-SET HEX SOCKET

1шт.

1-22

S411-080006

WASHER-SPRING

1шт.

1-23

S403-101006

WASHER-PLAIN

1шт.

1-24

S015-080256

BOLT-HEX

1шт.

1-25

S461-320402

PIN-SPLIT

HDF50-7 #0103

1шт.

1-25

S461-320402

PIN-SPLIT

HDF50-7 #0104

2шт.

1-25

S461-320402

PIN-SPLIT

HDF70-7 #0200

1шт.

1-25

S461-320402

PIN-SPLIT

HDF70-7 #0201

2шт.

1-26

81FQ-40350

SPRING

1шт.

1-27

S741-121020

DU BUSINGH-FLANGE

1шт.

1-28

81FA-40230

RUBBER-PEDAL

2шт.

2

S017-100306

BOLT-HEX

4шт.

4

S017-120756

BOLT-HEX

2шт.

5

S411-120006

WASHER-SPRING

2шт.

6

81FF-40240

ROD ASSY

1шт.

7

81FF-40310

RING

1шт.

8

S602-015004

RING-RETAINING

1шт.

9

S491-100352

PIN-CLEVIS

1шт.

10

S403-101006

WASHER-PLAIN

3шт.

11

S461-250202

PIN-SPLIT

1шт.

12

ZGAQ-01665

SENSOR-ROT ANGLE

#0001

1шт.

13

S015-040356

BOLT-HEX

2шт.

14

S403-041006

WASHER-PLAIN

2шт.

15

S411-040006

WASHER-SPRING

2шт.

16

P392-180000

WASHER-COPPER

WET

2шт.

16

907512100

GASKET

DRY

2шт.

17

81FQ-40180

FITTING

WET

1шт.

17

81FF-40250

FITTING

DRY

1шт.

18

81FQ-40190

BOLT-CONNECTION

WET

1шт.

18

905179300

BOLT CONNECTION

DRY

1шт.

19

P760-013135

HOSE-RUBBER

#1000

1шт.

20

S520-015000

CLAMP-HOSE

2шт.

21

S543-160002

CLAMP-TUBE

2шт.

22

S035-081526

BOLT-W/WASHER

2шт.

23

F11333031

RESERVOIR TANK ASSY

HDF50-7 #0078

1шт.

23

81FQ-40220

RESERVOIR TANK ASSY

HDF50-7 #0079 - #1000

1шт.

23

F11333031

RESERVOIR TANK ASSY

HDF70-7 #0168

1шт.

23

81FQ-40220

RESERVOIR TANK ASSY

HDF70-7 #0169 - #1000

1шт.

24

S035-061526

BOLT-W/WASHER

2шт.

25

FAC0100150

WASHER

4шт.
