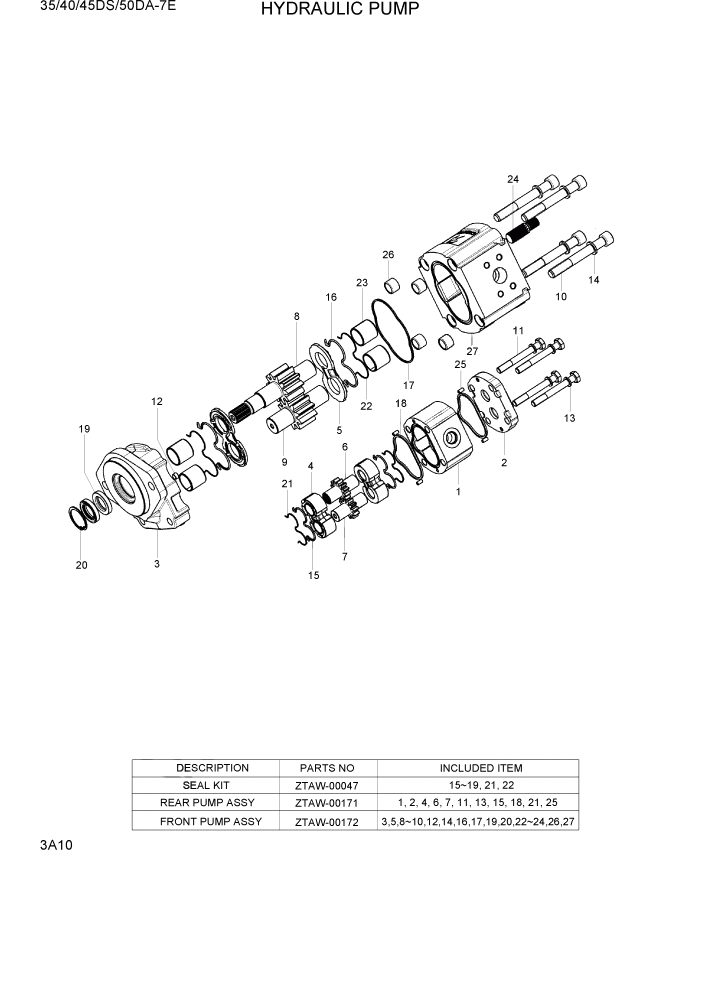

Запчасти Hyundai 35DS/40DS/45DS/50DA-7E PAGE 3A10 HYDRAULIC PUMP ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31HL-01100

HYD PUMP

1шт.

R1

@

BODY

NOT

1шт.

R2

@

COVER-REAR

NOT

1шт.

F3

@

COVER-FRONT

NOT

1шт.

R4

@

PLATE-THRUST

NOT

2шт.

F5

@

PLATE-THRUST

NOT

2шт.

R6

@

GEAR-DRIVE

NOT

1шт.

R7

@

GEAR-DRIVEN

NOT

1шт.

F8

@

SHAFT-DRIVE

NOT

1шт.

F9

@

GEAR-DRIVEN

NOT

1шт.

F10

@

SCREW

NOT

4шт.

R11

ZTAW-00012

SCREW

4шт.

F12

@

SCREW-GRUB

NOT

1шт.

R13

ZTAW-00014

WASHER

4шт.

F14

@

WASHER

NOT

4шт.

K15

@

SEAL

NOT

2шт.

K16

@

SEAL

NOT

2шт.

K17

@

STANDARD SEAL

NOT

1шт.

K18

@

SEAL

NOT

2шт.

K19

@

SEAL-SHAFT

NOT

2шт.

F20

@

RING

NOT

1шт.

K21

@

RING-BACK UP

NOT

2шт.

K22

@

ANTIEXTRUSION

NOT

2шт.

F23

@

BEARING-SLEEVE

NOT

4шт.

F24

@

HUB

NOT

1шт.

R25

@

PIN-DOWEL

NOT

4шт.

F26

@

BUSHING-STEEL

NOT

4шт.

F27

@

BODY

NOT

1шт.

K

ZTAW-00047

SEAL KIT

SEE ILLUST

1шт.

R

ZTAW-00171

REAR PUMP ASSY

SEE ILLUST

1шт.

F

ZTAW-00172

FRONT PUMP ASSY

SEE ILLUST

1шт.
