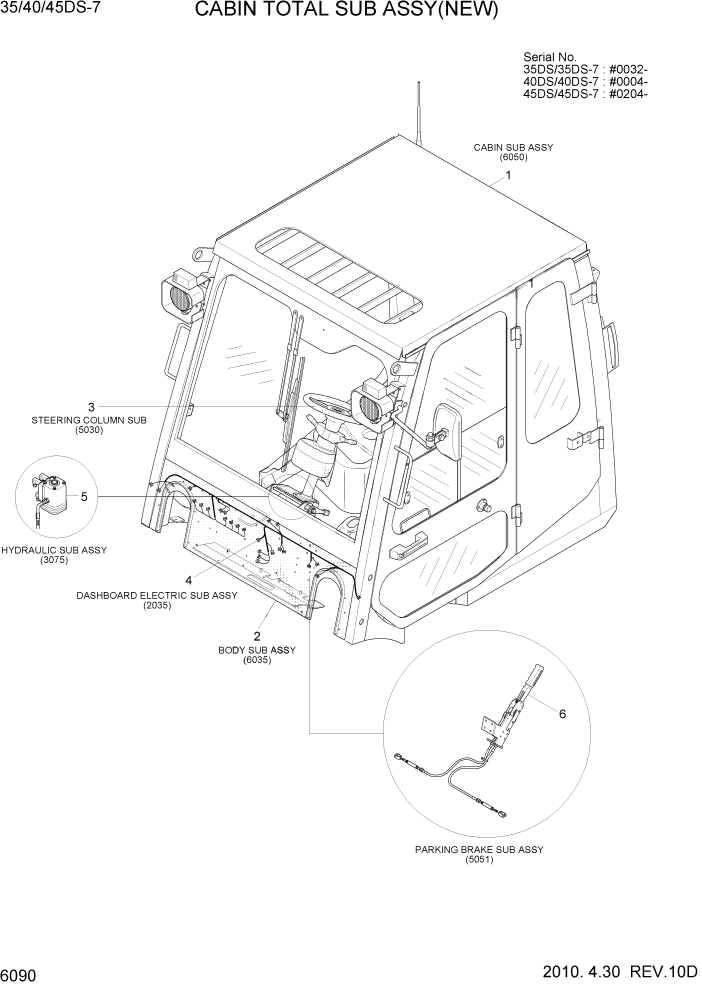

Запчасти Hyundai 35/40/45DS-7 PAGE 6090 CABIN TOTAL SUB ASSY(NEW) СТРУКТУРА

*

77FV-38001

CABIN TOTAL SUB ASSY

3.5TON #0032 - #0042

1шт.

*

77FV-38002

CABIN TOTAL SUB ASSY

3.5TON #0043 - #0086

1шт.

*

77FV-38003

CABIN TOTAL SUB ASSY

3.5TON #0087

1шт.

*

77FV-38001

CABIN TOTAL SUB ASSY

4.0TON #0004 - #0006

1шт.

*

77FV-38002

CABIN TOTAL SUB ASSY

4.0TON #0007 - #0031

1шт.

*

77FV-38003

CABIN TOTAL SUB ASSY

4.0TON #0032

1шт.

*

77FV-38001

CABIN TOTAL SUB ASSY

4.5TON #0204 - #0272

1шт.

*

77FV-38002

CABIN TOTAL SUB ASSY

4.5TON #0273 - #0613

1шт.

*

77FV-38003

CABIN TOTAL SUB ASSY

4.5TON #0614

1шт.

1

71FV-50011

CABIN ASSY

1шт.

2

77FV-11010

BODY SUB ASSY

SEE 6035,3.5TON #0042

1шт.

2

77FV-11011

BODY SUB ASSY

SEE 6035,3.5TON #0043 - #0086

1шт.

2

77FV-11012

BODY

SEE 6035,3.5TON #0087

1шт.

2

77FV-11010

BODY SUB ASSY

SEE 6035,4.0TON #0006

1шт.

2

77FV-11011

BODY SUB ASSY

SEE 6035,4.0TON #0007 - #0031

1шт.

2

77FV-11012

BODY

SEE 6035,4.0TON #0032

1шт.

2

77FV-11010

BODY SUB ASSY

SEE 6035,4.5TON #0272

1шт.

2

77FV-11011

BODY SUB ASSY

SEE 6035,4.5TON #0273 - #0613

1шт.

2

77FV-11012

BODY

SEE 6035,4.5TON #0614

1шт.

3

70FV-20001

STEERING COLUMN ASSY

SEE 5030,3.5TON #0042

1шт.

3

70FV-20002

STEERING COLUMN ASSY

SEE 5030,3.5TON #0043 - #0086

1шт.

3

70FV-20003

STEERING COLUMN GROUP

SEE 5030,3.5TON #0087

1шт.

3

70FV-20001

STEERING COLUMN ASSY

SEE 5030,4.0TON #0006

1шт.

3

70FV-20002

STEERING COLUMN ASSY

SEE 5030,4.0TON #0007 - #0034

1шт.

3

70FV-20003

STEERING COLUMN GROUP

SEE 5030,4.0TON #0035

1шт.

3

70FV-20001

STEERING COLUMN ASSY

SEE 5030,4.5TON #0272

1шт.

3

70FV-20002

STEERING COLUMN ASSY

SEE 5030,4.5TON #0273 - #0626

1шт.

3

70FV-20003

STEERING COLUMN GROUP

SEE 5030,4.5TON #0627

1шт.

4

20FV-10120

ELEC SUB ASSY

SEE 2015,3.5TON #0042

1шт.

4

20FV-10121

ELEC SUB ASSY

SEE 2015,3.5TON #0043

1шт.

4

20FV-10120

ELEC SUB ASSY

SEE 2015,4.0TON #0006

1шт.

4

20FV-10121

ELEC SUB ASSY

SEE 2015,4.0TON #0007

1шт.

4

20FV-10120

ELEC SUB ASSY

SEE 2015,4.5TON #0272

1шт.

4

20FV-10121

ELEC SUB ASSY

SEE 2015,4.5TON #0273

1шт.

5

37FV-10100

HYD SUB ASSY-COWL

1шт.

6

81FV-70150

PARKING SUB ASSY

SEE 5051,3.5TON #0042

1шт.

6

81FV-70151

PARKING SUB ASSY

SEE 5051,3.5TON #0043

1шт.

6

81FV-70150

PARKING SUB ASSY

SEE 5051,4.0TON #0006

1шт.

6

81FV-70151

PARKING SUB ASSY

SEE 5051,4.0TON #0007

1шт.

6

81FV-70150

PARKING SUB ASSY

SEE 5051,4.5TON #0272

1шт.

6

81FV-70151

PARKING SUB ASSY

SEE 5051,4.5TON #0273

1шт.
