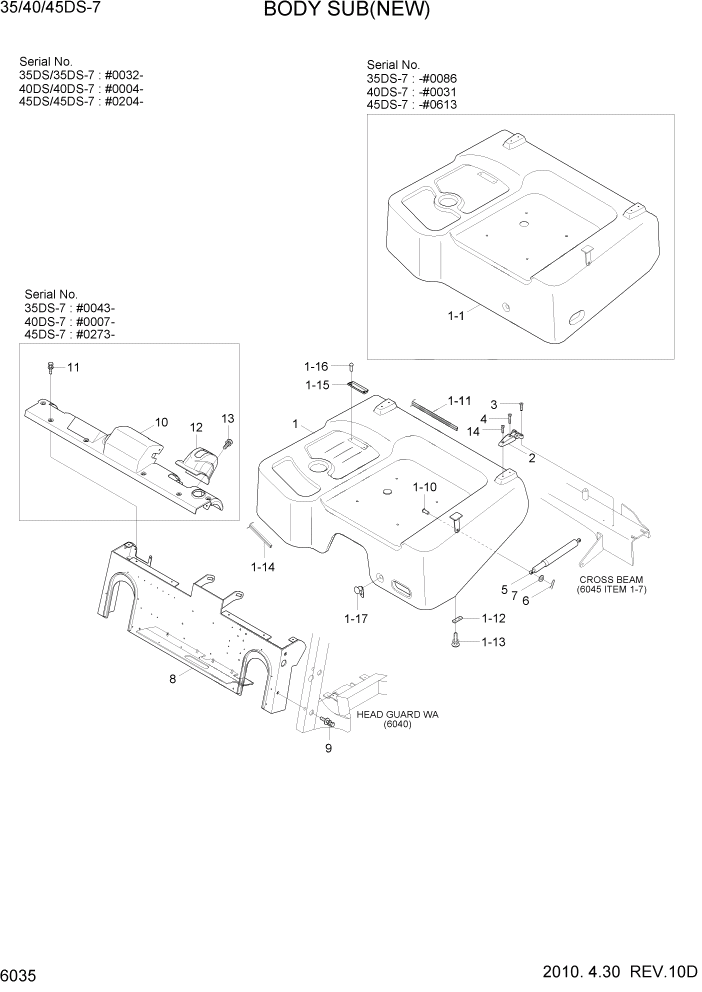

Запчасти Hyundai 35/40/45DS-7 PAGE 6035 BODY SUB(NEW) СТРУКТУРА

*

77FV-11010

BODY SUB ASSY

3.5TON #0032 - #0042

1шт.

*

77FV-11011

BODY SUB ASSY

3.5TON #0043 - #0086

1шт.

*

77FV-11012

BODY

3.5TON #0087

1шт.

*

77FV-11010

BODY SUB ASSY

4.0TON #0004 - #0006

1шт.

*

77FV-11011

BODY SUB ASSY

4.0TON #0007 - #0031

1шт.

*

77FV-11012

BODY

4.0TON #0032

1шт.

*

77FV-11010

BODY SUB ASSY

4.5TON #0204 - #0272

1шт.

*

77FV-11011

BODY SUB ASSY

4.5TON #0273 - #0613

1шт.

*

77FV-11012

BODY

4.5TON #0614

1шт.

1

71FV-10012

BONNET ASSY

#0086

1шт.

1

71FV-10013

BONNET ASSY

3.5TON #0087

1шт.

1

71FV-10012

BONNET ASSY

3.5TON #0031

1шт.

1

71FV-10013

BONNET ASSY

4.0TON #0032

1шт.

1

71FV-10012

BONNET ASSY

4.0TON #0613

1шт.

1

71FV-10013

BONNET ASSY

4.5TON #0614

1шт.

1-1

S241-060000

NUT-WELD

4шт.

1-1

S491-080282

PIN-CLEVIS

1шт.

1-11

S771-043000

WEATHER STRIP

1шт.

1-12

F12100190

CUSHION

2шт.

1-13

S132-061656

SCREW-W/WASHER

4шт.

1-14

S773-001000

WEATHER STRIP

1шт.

1-15

71FH-10181

CLIP

1шт.

1-16

9055000309

RIVET

2шт.

1-17

FHC0705200

LATCH ASSY

1шт.

2

ED13020001

HINGE

3.5TON #0081

2шт.

2

71FV-10470

HINGE ASSY

3.5TON #0082

2шт.

2

ED13020001

HINGE

4.0TON #0028

2шт.

2

71FV-10470

HINGE ASSY

4.0TON #0029

2шт.

2

ED13020001

HINGE

4.5TON #0548

2шт.

2

71FV-10470

HINGE ASSY

4.5TON #0549

2шт.

3

S141-060306

SCREW-FLAT HD

3.5TON #0081

6шт.

3

S141-060306

SCREW-FLAT HD

3.5TON #0082

4шт.

3

S141-060306

SCREW-FLAT HD

4.0TON #0028

6шт.

3

S141-060306

SCREW-FLAT HD

4.0TON #0029

4шт.

3

S141-060306

SCREW-FLAT HD

4.5TON #0548

6шт.

3

S141-060306

SCREW-FLAT HD

4.5TON #0549

4шт.

4

S141-060456

SCREW-FLAT HD

3.5TON #0081

2шт.

4

S141-080456

SCREW-FLAT HD

3.5TON #0082

2шт.

4

S141-060456

SCREW-FLAT HD

4.0TON #0028

2шт.

4

S141-080456

SCREW-FLAT HD

4.0TON #0029

2шт.

4

S141-060456

SCREW-FLAT HD

4.5TON #0548

2шт.

4

S141-080456

SCREW-FLAT HD

4.5TON #0549

2шт.

5

71FG-10260

GAS SPRING

1шт.

6

S501-100002

PIN-SELF LOCKING

2шт.

7

S403-08100B

WASHER-PLAIN

2шт.

8

71FV-10103

DASH BOARD WA

1шт.

9

S037-122526

BOLT-W/WASHER

4шт.

10

71FV-10202

COVER-DASH BOARD

3.5TON,SEE 6021 #0043

1шт.

10

71FV-10202

COVER-DASH BOARD

4.0TON,SEE 6021 #0007

1шт.

10

71FV-10202

COVER-DASH BOARD

4.5TON,SEE 6021 #0273

1шт.

11

S132-081526

SCREW-W/WASHER

3.5TON,SEE 6021 #0043

6шт.

11

S132-081526

SCREW-W/WASHER

4.0TON,SEE 6021 #0007

6шт.

11

S132-081526

SCREW-W/WASHER

4.5TON,SEE 6021 #0273

6шт.

12

71FV-10321

COVER-PARKING BRAKE

3.5TON,SEE 6021 #0043

1шт.

12

71FV-10321

COVER-PARKING BRAKE

4.0TON,SEE 6021 #0007

1шт.

12

71FV-10321

COVER-PARKING BRAKE

4.5TON,SEE 6021 #0273

1шт.

13

S132-062026

SCREW-W/WASHER

3.5TON,SEE 6021 #0043

3шт.

13

S132-062026

SCREW-W/WASHER

4.0TON,SEE 6021 #0007

3шт.

13

S132-062026

SCREW-W/WASHER

4.5TON,SEE 6021 #0273

3шт.

14

S141-080306

SCREW-FLAT HD

3.5TON #0082

2шт.

14

S141-080306

SCREW-FLAT HD

4.0TON #0029

2шт.

14

S141-080306

SCREW-FLAT HD

4.5TON #0549

2шт.
