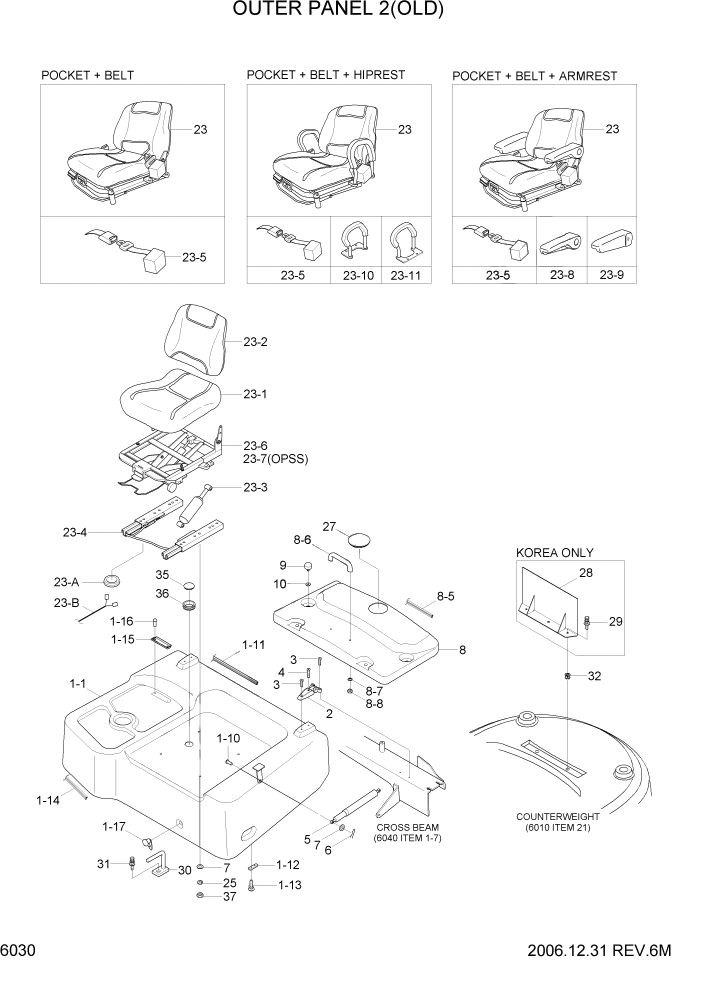

Запчасти Hyundai 35/40/45DS-7 PAGE 6030 OUTER PANEL 2(OLD) СТРУКТУРА

*

@

BODY

NOT #0031

1шт.

*

@

BODY

NOT #0003

1шт.

*

@

BODY

NOT #0203

1шт.

1

71FV-10012

BONNET ASSY

1шт.

1-1

S241-060000

NUT-WELD

4шт.

1-1

S491-080282

PIN-CLEVIS

1шт.

1-11

S771-043000

WEATHER STRIP

1шт.

1-12

F12100190

CUSHION

2шт.

1-13

S132-061656

SCREW-W/WASHER

4шт.

1-14

S773-001000

WEATHER STRIP

1шт.

1-15

71FH-10181

CLIP

1шт.

1-16

9055000309

RIVET

2шт.

1-17

FHC0705200

LATCH ASSY

1шт.

2

ED13020001

HINGE

2шт.

3

S141-060302

SCREW-FLAT HD

6шт.

4

S141-060452

SCREW-FLAT HD

2шт.

5

71FG-10260

GAS SPRING

1шт.

6

S501-100002

PIN-SELF LOCKING

2шт.

7

S403-081002

WASHER-PLAIN

6шт.

8

71FV-10022

SUB BONNET ASSY

1шт.

8-5

S773-002900

WEATHER STRIP

1шт.

8-6

71FH-10140

HANDLE

1шт.

8-7

S403-081002

WASHER-PLAIN

2шт.

8-8

S205-081002

NUT-HEX

2шт.

9

FBC0900110-01

KNOB

4шт.

10

71FE-10170

WASHER-RUBBER

4шт.

23

71FG-10520

SEAT ASSY(PKT)

W/O OPSS

1шт.

23

71FG-10530

SEAT ASSY(PKT+BT)

W/O OPSS

1шт.

23

71FG-10540

SEAT ASSY(PKT+BT+AR)

W/O OPSS

1шт.

23

71FG-10550

SEAT ASSY(PKT+BT+HR)

W/O OPSS

1шт.

23

71FH-10510

SEAT ASSY(PKT)

WITH OPSS

1шт.

23

71FH-10520

SEAT ASSY(PKT+BT)

WITH OPSS

1шт.

23

71FH-10530

SEAT ASSY(PKT+BT+HR)

WITH OPSS

1шт.

23

71FH-10540

SEAT ASSY(PKT+BT+AR)

WITH OPSS

1шт.

23-A

310006540

SWITCH-SEAT

WITH OPSS #0001

1шт.

23-B

B51800050

HARNESS-SEAT

WITH OPSS #0001

1шт.

23-1

H31013-100

CUSION ASSY

#0001

1шт.

23-2

H31013-200

BACK ASSY

#0001

1шт.

23-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

23-4

H31013-600

SIDE TRACK ASSY

#0001

1шт.

23-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

23-6

H31023-300

SUSPENSION ASSY

W/O OPSS #0001

1шт.

23-7

H31023-301

SUSPENSION

WITH OPSS #0001

1шт.

23-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

23-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

23-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0001

1шт.

23-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0001

1шт.

25

S411-080002

WASHER-SPRING

4шт.

26

S981-182000

PLUG

EXPORT

1шт.

27

Q101888000

COVER-RUBBER

1шт.

28

71FH-10270

PLATE-LICENSE

KOREA

1шт.

29

S035-082524

BOLT-W/WASHER

KOREA

2шт.

30

71FE-10220

BRACKET-LATCH

1шт.

31

S035-062546

BOLT-W/WASHER

2шт.

32

S981-081100

PLUG-RUBBER

EXPORT

2шт.

33

FHC0904100

RUBBER-STAY

3шт.

36

S681-230800

GROMMET

1шт.

37

S205-080002

NUT-HEX

#0001

4шт.
