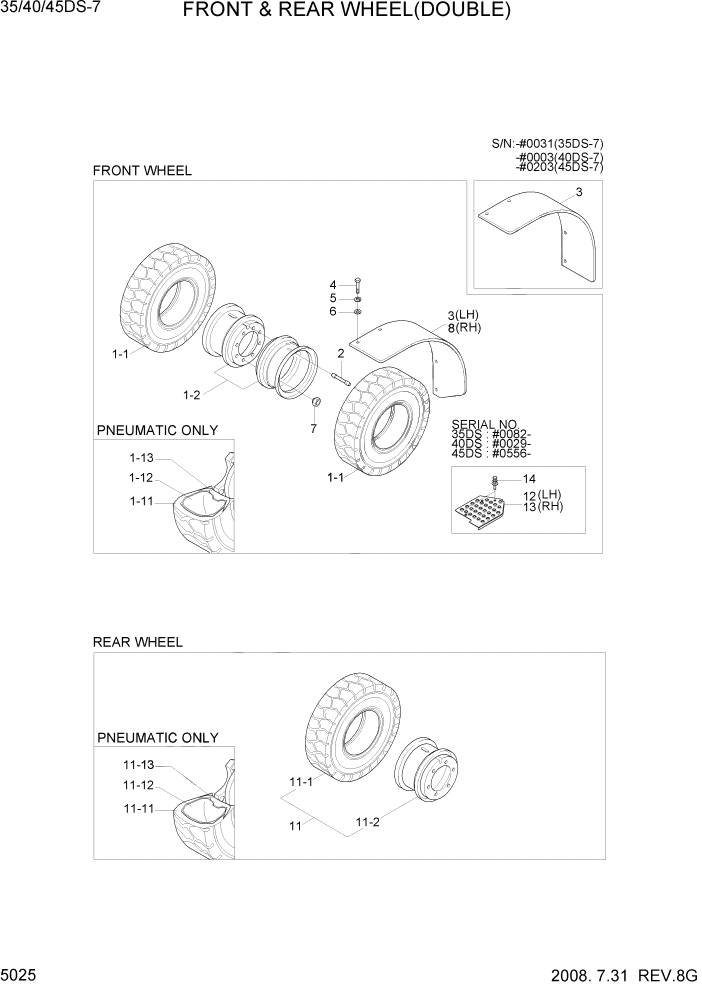

Запчасти Hyundai 35/40/45DS-7 PAGE 5025 FRONT & REAR WHEEL(DOUBLE) СИСТЕМА УПРАВЛЕНИЯ

*

@

WHEEL ASSEMBLY

NOT #0001

1шт.

1

81FV-20310

TIRE & RIM ASSY

PNEUMATIC

2шт.

1

81FV-20610

TIRE & RIM ASSY

SOLID

2шт.

1

81FV-20910

TIRE & RIM ASSY

NON-MARKING

2шт.

1-1

81FV-20340

TIRE ASSY

PNEUMATIC

2шт.

1-11

81FV-20350

TIRE

PNEUMATIC

1шт.

1-12

81FV-20360

TUBE

PNEUMATIC

1шт.

1-13

81FV-20370

FLAP

PNEUMATIC

1шт.

1-1

81FV-20620

TIRE ASSY

SOLID

2шт.

1-1

81FV-20920

TIRE ASSY

NON-MARKING

2шт.

1-2

81FV-20320

RIM

1шт.

N2

81FA-22400

VALVE-EXTENSION

NOT

2шт.

3

81FV-20330

FENDER

35DS #0031

2шт.

3

81FV-20331

FENDER-LH

35DS #0032

1шт.

3

81FV-20330

FENDER

40DS #0003

2шт.

3

81FV-20331

FENDER-LH

40DS #0004

1шт.

3

81FV-20330

FENDER

45DS #0203

2шт.

3

81FV-20331

FENDER-LH

45DS #0204

1шт.

4

S017-100402

BOLT-HEX

10шт.

5

S411-100002

WASHER-SPRING

10шт.

6

S403-101002

WASHER-PLAIN

10шт.

7

F14420100

NUT-HUB

16шт.

8

81FV-20380

FENDER-RH

35DS #0032

1шт.

8

81FV-20380

FENDER-RH

40DS #0004

1шт.

8

81FV-20380

FENDER-RH

45DS #0204

1шт.

12

41FV-00401

STEP-LH

35DS #0082

1шт.

12

41FV-00401

STEP-LH

40DS #0029

1шт.

12

41FV-00401

STEP-LH

45DS #0556

1шт.

13

41FV-00411

STEP-RH

35DS #0082

1шт.

13

41FV-00411

STEP-RH

40DS #0029

1шт.

13

41FV-00411

STEP-RH

45DS #0556

1шт.

14

S035-082026

BOLT-W/WASHER

35DS #0082

6шт.

14

S035-082026

BOLT-W/WASHER

40DS #0029

6шт.

14

S035-082026

BOLT-W/WASHER

45DS #0556

6шт.

11

81FV-21110

TIRE & RIM ASSY

REAR TIRE,PNEU

2шт.

11

F13420010

TIRE & RIM ASSY-SOLID

REAR TIRE,SOLID #0019

2шт.

11

F13420010

TIRE & RIM ASSY-SOLID

REAR TIRE,SOLID #0001

2шт.

11

F13420010

TIRE & RIM ASSY-SOLID

REAR TIRE,SOLID #0113

2шт.

11-1

81FA-21300

TIRE ASSY

REAR TIRE,PNEU

1шт.

11-11

81FA-21310

TIRE

REAR TIRE,PNEU #0001

1шт.

11-12

81FA-21320

TUBE

REAR TIRE,PNEU #0001

1шт.

11-13

81FA-21330

FLAP

REAR TIRE,PNEU #0001

1шт.

11-1

3631006900

TIRE-SOLID

REAR TIRE,SOLID

1шт.

11-2

FAD0501700

RIM-REAR

REAR TIRE

1шт.

11

81FV-21110

TIRE & RIM ASSY

REAR,PNEU,35DS #0086

2шт.

11

81FV-21111

TIRE & RIM ASSY

REAR,PNEU,35DS #0087

2шт.

11

81FV-21110

TIRE & RIM ASSY

REAR,PNEU,40DS #0028

2шт.

11

81FV-21111

TIRE & RIM ASSY

REAR,PNEU,40DS #0029

2шт.

11

81FV-21110

TIRE & RIM ASSY

REAR,PNEU,45DS #0569

2шт.

11

81FV-21111

TIRE & RIM ASSY

REAR,PNEU,45DS #0570

2шт.

11

F13420010

TIRE & RIM ASSY-SOLID

REAR,SOLID,35DS #0019 - #0086

2шт.

11

F13420011

TIRE & RIM ASSY-SOLID

REAR,SOLID,35DS #0087

2шт.

11

F13420010

TIRE & RIM ASSY-SOLID

REAR,SOLID,40DS #0001 - #0028

2шт.

11

F13420011

TIRE & RIM ASSY-SOLID

REAR,SOLID,40DS #0029

2шт.

11

F13420010

TIRE & RIM ASSY-SOLID

REAR,SOLID,45DS #0113 - #0569

2шт.

11

F13420011

TIRE & RIM ASSY-SOLID

REAR,SOLID,45DS #0570

2шт.

11

81FE-20910

TIRE & RIM ASSY

REAR,N-MARK,35 #0086

2шт.

11

81FE-20911

TIRE & RIM ASSY

REAR,N-MARK,35 #0087

2шт.

11

81FE-20910

TIRE & RIM ASSY

REAR,N-MARK,40 #0028

2шт.

11

81FE-20911

TIRE & RIM ASSY

REAR,N-MARK,40 #0029

2шт.

11

81FE-20910

TIRE & RIM ASSY

REAR,N-MARK,45 #0569

2шт.

11

81FE-20911

TIRE & RIM ASSY

REAR,N-MARK,45 #0570

2шт.

11-1

81FA-21300

TIRE ASSY

RR,PNEU,KUMHO

1шт.

11-1

81FA-21300H

TIRE

RR,PNEU,HANKOOK

1шт.

11-11

81FA-21310

TIRE

REAR TIRE,PNEU #0001

1шт.

11-12

81FA-21320

TUBE

RR,PNEU,KUMHO #0001

1шт.

11-12

81FA-21320H

TUBE-TIRE(7.00-12-12)

RR,PNEU,HANKOOK #0001

1шт.

11-13

81FA-21330

FLAP

RR,PNEU,KUMHO #0001

1шт.

11-13

81FA-21330H

FLAP

RR,PNEU,HANKOOK #0001

1шт.

11-1

3631006900

TIRE-SOLID

REAR TIRE,SOLID

1шт.

11-1

81FE-20920

TIRE-NON MARKING

REAR,N-MARK

1шт.

11-2

FAD0501700

RIM-REAR

REAR TIRE,35DS #0086

1шт.

11-2

81FV-20390

RIM-REAR

REAR TIRE,35DS #0087

1шт.

11-2

FAD0501700

RIM-REAR

REAR TIRE,40DS #0028

1шт.

11-2

81FV-20390

RIM-REAR

REAR TIRE,40DS #0029

1шт.

11-2

FAD0501700

RIM-REAR

REAR TIRE,45DS #0569

1шт.

11-2

81FV-20390

RIM-REAR

REAR TIRE,45DS #0570

1шт.
