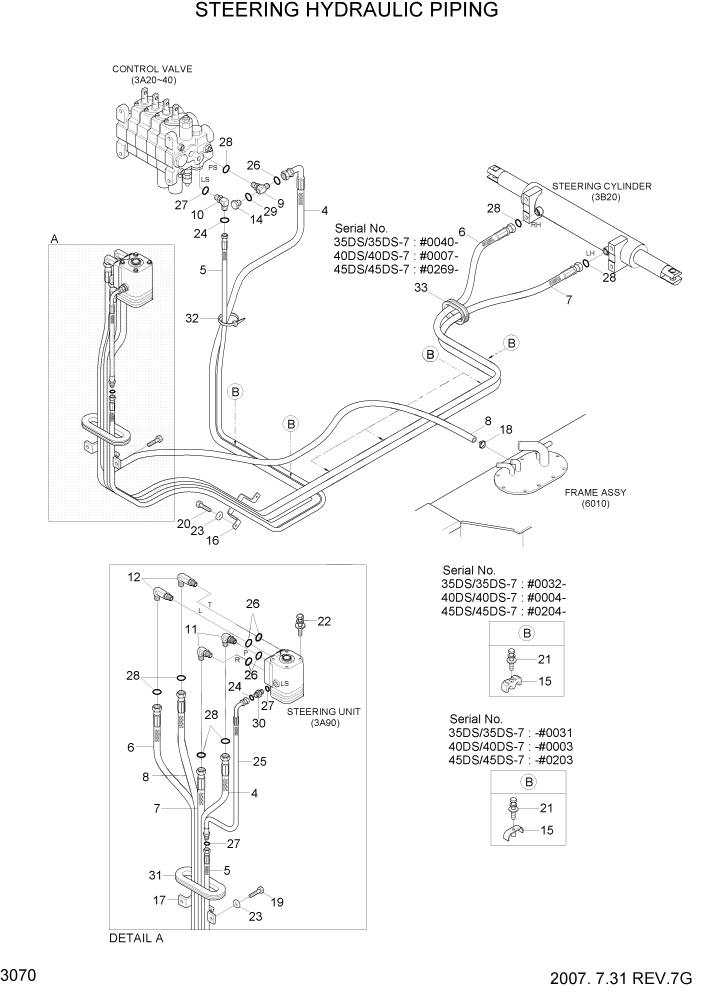

Запчасти Hyundai 35/40/45DS-7 PAGE 3070 STEERING HYDRAULIC PIPING ГИДРАВЛИЧЕСКАЯ СИСТЕМА

4

P930-065055

HOSE ASSY-ORFS 0X90

#0001 - #0086

1шт.

4

P920-065046

HOSE ASSY-ORFS 0X45

#0087

1шт.

5

P910-045047

HOSE ASSY-ORFS 0X0

3.5TON #0001 - #0011

1шт.

5

P910-045045

HOSE ASSY-ORFS 0X0

3.5TON #0012 - #0031

1шт.

5

P910-045042

HOSE ASSY-ORFS 0X0

3.5TON #0032 - #0086

1шт.

5

P910-045035

HOSE ASSY-ORFS 0X0

3.5TON #0087

1шт.

5

P910-045047

HOSE ASSY-ORFS 0X0

4.0TON #0001 - #0001

1шт.

5

P910-045045

HOSE ASSY-ORFS 0X0

4.0TON #0002 - #0003

1шт.

5

P910-045042

HOSE ASSY-ORFS 0X0

4.0TON #0004 - #0031

1шт.

5

P910-045035

HOSE ASSY-ORFS 0X0

4.0TON #0032

1шт.

5

P910-045047

HOSE ASSY-ORFS 0X0

4.5TON #0001 - #0043

1шт.

5

P910-045045

HOSE ASSY-ORFS 0X0

4.5TON #0044 - #0203

1шт.

5

P910-045045

HOSE ASSY-ORFS 0X0

4.5TON #0204 - #0613

1шт.

5

P910-045035

HOSE ASSY-ORFS 0X0

4.5TON #0614

1шт.

6

31FV-10051

HOSE ASSY 0X90

3.5TON #0001 - #0011

1шт.

6

31FV-10052

HOSE ASSY 0X45

3.5TON #0012 - #0039

1шт.

6

31FV-10053

HOSE ASSY 0X0

3.5TON #0040

1шт.

6

31FV-10051

HOSE ASSY 0X90

4.0TON #0001 - #0038

1шт.

6

31FV-10052

HOSE ASSY 0X45

4.0TON #0039 - #0006

1шт.

6

31FV-10053

HOSE ASSY 0X0

4.0TON #0007

1шт.

6

31FV-10051

HOSE ASSY 0X90

4.5TON #0001 - #0038

1шт.

6

31FV-10052

HOSE ASSY 0X45

4.5TON #0039 - #0268

1шт.

6

31FV-10053

HOSE ASSY 0X0

4.5TON #0269

1шт.

7

31FV-10061

HOSE ASSY 0X90

3.5TON #0001 - #0011

1шт.

7

31FV-10062

HOSE ASSY 0X45

3.5TON #0012 - #0039

1шт.

7

31FV-10063

HOSE ASSY 0X0

3.5TON #0040

1шт.

7

31FV-10061

HOSE ASSY 0X90

4.0TON #0001 - #0001

1шт.

7

31FV-10062

HOSE ASSY 0X45

4.0TON #0002 - #0006

1шт.

7

31FV-10063

HOSE ASSY 0X0

4.0TON #0007

1шт.

7

31FV-10061

HOSE ASSY 0X90

4.5TON #0001 - #0038

1шт.

7

31FV-10062

HOSE ASSY 0X45

4.5TON #0039 - #0268

1шт.

7

31FV-10063

HOSE ASSY 0X0

4.5TON #0269

1шт.

8

31FV-10040

HOSE-RETURN

1шт.

9

31FV-10031

ELBOW-90

WITH TEST PORT

1шт.

10

31FG-10020

ELBOW-90

1шт.

11

31FG-10010

ELBOW-90,ORFS

3.5TON #0086

2шт.

11

31HA-10060

ELBOW-90

3.5TON #0087

2шт.

11

31FG-10010

ELBOW-90,ORFS

4.0TON #0031

2шт.

11

31HA-10060

ELBOW-90

4.0TON #0032

2шт.

11

31FG-10010

ELBOW-90,ORFS

4.5TON #0613

2шт.

11

31HA-10060

ELBOW-90

4.5TON #0614

2шт.

12

31FH-10050

ELBOW-90,LONG

3.5TON #0086

2шт.

12

31HA-10070

ELBOW-90D,LONG

3.5TON #0087

2шт.

12

31FH-10050

ELBOW-90,LONG

4.0TON #0031

2шт.

12

31HA-10070

ELBOW-90D,LONG

4.0TON #0032

2шт.

12

31FH-10050

ELBOW-90,LONG

4.5TON #0613

2шт.

12

31HA-10070

ELBOW-90D,LONG

4.5TON #0614

2шт.

12

31FH-10050

ELBOW-90,LONG

4.5TON #0203

2шт.

13

31HF-20090

COUPLING-SCREW

3.5TON #0087

1шт.

13

31HF-20090

COUPLING-SCREW

4.0TON #0032

1шт.

13

31HF-20090

COUPLING-SCREW

4.5TON #0614

1шт.

14

31EK-11130

COUPLING-SCREW

1шт.

14

31HH-10040

CONNECTOR-ORFS

3.5TON #0087

1шт.

14

31HH-10040

CONNECTOR-ORFS

4.0TON #0032

1шт.

14

31HH-10040

CONNECTOR-ORFS

4.5TON #0614

1шт.

15

31FS-90400

CLAMP WA

3.5TON #0031

6шт.

15

31HH-10020

CLAMP-HOSE

3.5TON #0032

6шт.

15

31FS-90400

CLAMP WA

4.0TON #0003

6шт.

15

31HH-10020

CLAMP-HOSE

4.0TON #0004

6шт.

15

31FS-90400

CLAMP WA

4.5TON #0203

6шт.

15

31HH-10020

CLAMP-HOSE

4.5TON #0204

6шт.

16

6600362800

CLAMP-HOSE

1шт.

17

31FA-70110

CLAMP-HOSE

3.5TON #0087

1шт.

17

31HA-10090

CLAMP-HOSE

3.5TON #0032

1шт.

17

31FA-70110

CLAMP-HOSE

4.0TON #0032

1шт.

17

31HA-10090

CLAMP-HOSE

4.0TON #0004

1шт.

17

31FA-70110

CLAMP-HOSE

4.5TON #0614

1шт.

17

31HA-10090

CLAMP-HOSE

4.5TON #0204

1шт.

18

S520-017000

CLAMP-HOSE

3.5TON #0031

1шт.

18

S572-200002

CLAMP-HOSE,WIRE TYPE

3.5TON #0032 - #0086

1шт.

18

S572-200006

CLAMP-HOSE,WIRE TYPE

3.5TON #0087

1шт.

18

S520-017000

CLAMP-HOSE

4.0TON #0003

1шт.

18

S572-200002

CLAMP-HOSE,WIRE TYPE

4.0TON #0004 - #0031

1шт.

18

S572-200006

CLAMP-HOSE,WIRE TYPE

4.0TON #0032

1шт.

18

S520-017000

CLAMP-HOSE

4.5TON #0203

1шт.

18

S572-200002

CLAMP-HOSE,WIRE TYPE

4.5TON #0204 - #0613

1шт.

18

S572-200006

CLAMP-HOSE,WIRE TYPE

4.5TON #0614

1шт.

19

S035-082022

BOLT-W/WASHER

3.5TON #0031

4шт.

19

S035-082026

BOLT-W/WASHER

3.5TON #0032

4шт.

19

S035-082022

BOLT-W/WASHER

4.0TON #0003

4шт.

19

S035-082026

BOLT-W/WASHER

4.0TON #0004

4шт.

19

S035-082022

BOLT-W/WASHER

4.5TON #0203

4шт.

19

S035-082026

BOLT-W/WASHER

4.5TON #0204

4шт.

20

S015-080156

BOLT-HEX

3.5TON #0031

4шт.

20

S035-081526

BOLT-W/WASHER

3.5TON #0032

2шт.

20

S015-080156

BOLT-HEX

4.0TON #0003

4шт.

20

S035-081526

BOLT-W/WASHER

4.0TON #0004

2шт.

20

S015-080156

BOLT-HEX

4.5TON #0203

4шт.

20

S035-081526

BOLT-W/WASHER

4.5TON #0204

2шт.

21

S015-080406

BOLT-HEX

3.5TON #0031

6шт.

21

S035-084026

BOLT-W/WASHER

3.5TON #0032

6шт.

21

S015-080406

BOLT-HEX

4.0TON #0003

6шт.

21

S035-084026

BOLT-W/WASHER

4.0TON #0004

6шт.

21

S015-080406

BOLT-HEX

4.5TON #0203

6шт.

21

S035-084026

BOLT-W/WASHER

4.5TON #0204

6шт.

22

S037-103026

BOLT-W/WASHER

3.5TON #0086

4шт.

22

S037-102516

BOLT-W/WASHER

3.5TON #0087

4шт.

22

S037-103026

BOLT-W/WASHER

3.5TON #0031

4шт.

22

S037-102516

BOLT-W/WASHER

4.0TON #0032

4шт.

22

S037-103026

BOLT-W/WASHER

4.5TON #0613

4шт.

22

S037-102516

BOLT-W/WASHER

4.5TON #0614

4шт.

23

S411-080006

WASHER-SPRING

3.5TON #0086

4шт.

23

S035-082526

BOLT-W/WASHER

3.5TON #0087

4шт.

23

S411-080006

WASHER-SPRING

4.0TON #0031

4шт.

23

S035-082526

BOLT-W/WASHER

4.0TON #0032

4шт.

23

S411-080006

WASHER-SPRING

4.5TON #0613

4шт.

23

S035-082526

BOLT-W/WASHER

4.5TON #0614

4шт.

24

S611-009001

O-RING

2шт.

25

31FV-10070

HOSE ASSY 0X90

3.5TON #0001 - #0011

1шт.

25

31FV-10071

HOSE ASSY 0X90

3.5TON #0012

1шт.

25

31FV-10070

HOSE ASSY 0X90

4.0TON #0001 - #0001

1шт.

25

31FV-10071

HOSE ASSY 0X90

4.0TON #0002

1шт.

25

31FV-10070

HOSE ASSY 0X90

4.5TON #0001 - #0043

1шт.

25

31FV-10071

HOSE ASSY 0X90

4.5TON #0044

1шт.

26

S611-016001

O-RING

5шт.

27

S621-011001

O-RING

#0001

3шт.

28

S621-012001

O-RING

7шт.

29

S631-011004

O-RING

1шт.

30

X500-310001

CONNECTOR-ORFS

3.5TON

1шт.

30

X500-310001

CONNECTOR-ORFS

4.0TON

1шт.

30

X500-310001

CONNECTOR-ORFS

4.5TON

1шт.

31

S760-030622

GROMMET

3.5TON

1шт.

31

S760-030622

GROMMET

4.0TON

1шт.

31

S760-030622

GROMMET

4.5TON

1шт.

32

S552-050203

CLAMP-BAND

5шт.

33

S760-090804

GROMMET

3.5TON #0040

1шт.

33

S760-090804

GROMMET

4.0TON #0007

1шт.

33

S760-090804

GROMMET

4.5TON #0269

1шт.
