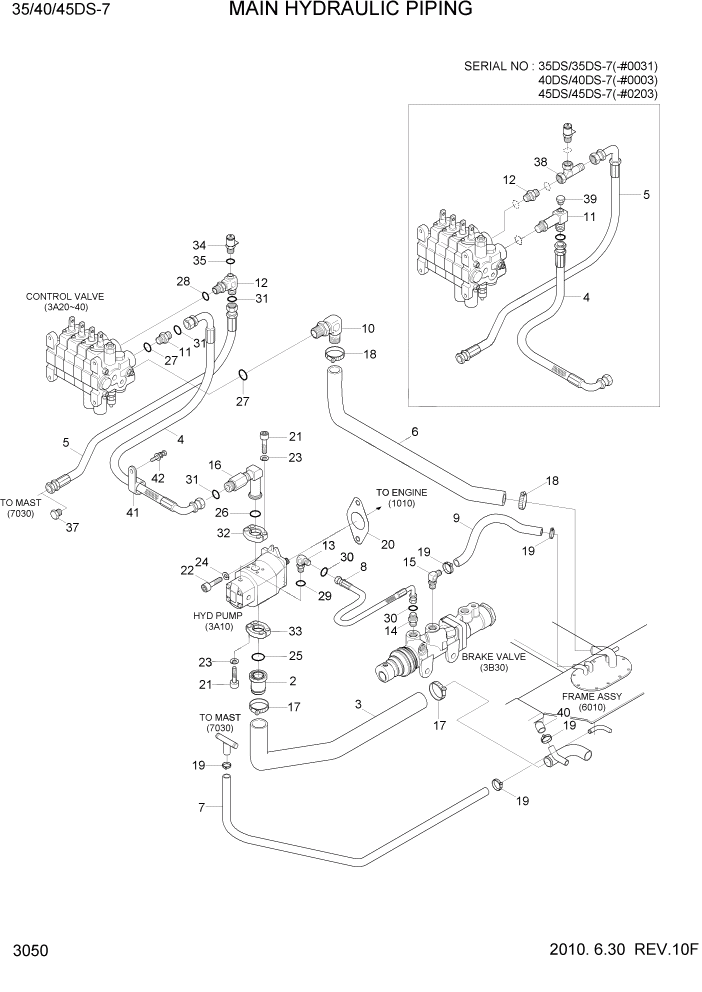

Запчасти Hyundai 35/40/45DS-7 PAGE 3050 MAIN HYDRAULIC PIPING ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

31FV-20200

CONNECTOR

3.5TON #0031

1шт.

2

31FV-20201

CONNECTOR

3.5TON #0032

1шт.

2

31FV-20200

CONNECTOR

4.0TON #0003

1шт.

2

31FV-20201

CONNECTOR

4.0TON #0004

1шт.

2

31FV-20200

CONNECTOR

4.5TON #0203

1шт.

2

31FV-20201

CONNECTOR

4.5TON #0204

1шт.

3

31FV-20061

HOSE-SUCTION

1шт.

4

P930-124031

HOSE ASSY-ORFS 0X90

3.5TON #0031

1шт.

4

31FV-20240

HOSE ASSY 90X90D

3.5TON #0032 - #0033

1шт.

4

31FV-20241

HOSE ASSY 90X90D

3.5TON #0034 - #0086

1шт.

4

31FV-25090

HOSE ASSY-THD 0X45

3.5TON #0087

1шт.

4

P930-124031

HOSE ASSY-ORFS 0X90

4.0TON #0003

1шт.

4

31FV-20240

HOSE ASSY 90X90D

4.0TON #0004 - #0031

1шт.

4

31FV-25090

HOSE ASSY-THD 0X45

4.0TON #0032

1шт.

4

P930-124031

HOSE ASSY-ORFS 0X90

4.5TON #0203

1шт.

4

31FV-20240

HOSE ASSY 90X90D

4.5TON #0204 - #0613

1шт.

4

31FV-25090

HOSE ASSY-THD 0X45

4.5TON #0614

1шт.

5

31FV-20192

HOSE ASSY-ORFS 0X90

3.5TON #0001 - #0011

1шт.

5

31FV-20193

HOSE ASSY-ORFS 0X90

3.5TON #0012 - #0031

1шт.

5

P913-124028

HOSE ASSY-ORFS 0X0

3.5TON #0032 - #0086

1шт.

5

P923-124018

HOSE ASSY-ORFS 0X45

3.5TON #0087

1шт.

5

31FV-20192

HOSE ASSY-ORFS 0X90

4.0TON #0001 - #0001

1шт.

5

31FV-20193

HOSE ASSY-ORFS 0X90

4.0TON #0002 - #0003

1шт.

5

P913-124028

HOSE ASSY-ORFS 0X0

4.0TON #0004 - #0031

1шт.

5

P923-124018

HOSE ASSY-ORFS 0X45

4.0TON #0032

1шт.

5

31FV-20192

HOSE ASSY-ORFS 0X90

4.5TON #0001 - #0038

1шт.

5

31FV-20193

HOSE ASSY-ORFS 0X90

4.5TON #0039 - #0203

1шт.

5

P913-124028

HOSE ASSY-ORFS 0X0

4.5TON #0204 - #0613

1шт.

5

P923-124018

HOSE ASSY-ORFS 0X45

4.5TON #0614

1шт.

6

31FV-20071

HOSE-RETURN

3.5TON #0086

1шт.

6

31FV-25080

HOSE-RETURN

3.5TON #0087

1шт.

6

31FV-20071

HOSE-RETURN

40.TON #0031

1шт.

6

31FV-25080

HOSE-RETURN

4.0TON #0032

1шт.

6

31FV-20071

HOSE-RETURN

4.5TON #0613

1шт.

6

31FV-25080

HOSE-RETURN

4.5TON #0614

1шт.

7

31FF-81040

HOSE-RUBBER

#0086

1шт.

7

31FF-81110

HOSE-RUBBER

35DS #0087

1шт.

7

31FF-81040

HOSE-RUBBER

#0034

1шт.

7

31FF-81110

HOSE-RUBBER

40DS #0035

1шт.

7

31FF-81040

HOSE-RUBBER

#0628

1шт.

7

31FF-81110

HOSE-RUBBER

45DS #0629

1шт.

8

P930-084010

HOSE ASSY-ORFS 0X90

#0001

1шт.

9

31FF-81590

HOSE-RUBBER(350L)

2шт.

10

31FV-20030

ELBOW-90

3.5TON #0086

1шт.

10

31FV-25061

ELBOW-90,SWIVEL

3.5TON #0087

1шт.

10

31FV-20030

ELBOW-90

4.0TON #0031

1шт.

10

31FV-25061

ELBOW-90,SWIVEL

4.0TON #0032

1шт.

10

31FV-20030

ELBOW-90

4.5TON #0613

1шт.

10

31FV-25061

ELBOW-90,SWIVEL

4.5TON #0614

1шт.

11

31FV-20051

TEE-W/TEST PORT

3.5TON #0031

1шт.

11

X500-310004

CONNECTOR-ORFS

3.5TON #0032 - #0033

1шт.

11

31LF-30120

CONNECTOR

3.5TON #0034 - #0086

1шт.

11

31FV-25070

ELBOW-90

3.5TON #0087

1шт.

11

31FV-20051

TEE-W/TEST PORT

4.0TON #0003

1шт.

11

31LF-30120

CONNECTOR

4.0TON #0004 - #0031

1шт.

11

31FV-25070

ELBOW-90

4.0TON #0032

1шт.

11

31FV-20051

TEE-W/TEST PORT

4.5TON #0203

1шт.

11

X500-310004

CONNECTOR-ORFS

4.5TON #0204 - #0209

1шт.

11

31LF-30120

CONNECTOR

4.5TON #0210

1шт.

11

31LF-30120

CONNECTOR

4.5TON #0210 - #0613

1шт.

11

31FV-25070

ELBOW-90

4.5TON #0614

1шт.

12

31FV-20040

CONNECTOR

3.5TON #0031

1шт.

12

31FV-20230

ELBOW-90,W/TEST PT

3.5TON #0032 - #0086

1шт.

12

X500-310004

CONNECTOR-ORFS

3.5TON #0087

1шт.

12

31FV-20040

CONNECTOR

4.0TON #0003

1шт.

12

31FV-20230

ELBOW-90,W/TEST PT

4.0TON #0004 - #0031

1шт.

12

X500-310004

CONNECTOR-ORFS

4.0TON #0032

1шт.

12

31FV-20040

CONNECTOR

4.5TON #0203

1шт.

12

31FV-20230

ELBOW-90,W/TEST PT

4.5TON #0204 - #0613

1шт.

12

X500-310004

CONNECTOR-ORFS

4.5TON #0614

1шт.

13

31FV-20130

ELBOW-90

1шт.

14

X500-220007

CONNECTOR-ORFS

1шт.

15

31FF-01360

ELBOW-90

1шт.

16

31FV-20210

ELBOW-WA

1шт.

17

S572-570006

CLAMP-HOSE,WIRE TYPE

2шт.

18

S572-460006

CLAMP-HOSE,WIRE TYPE

2шт.

19

S520-027000

CLAMP-HOSE

3.5TON #0018

4шт.

19

S520-027000

CLAMP-HOSE

3.5TON #0019 - #0024

5шт.

19

S520-027000

CLAMP-HOSE

3.5TON #0025 - #0031

4шт.

19

S572-270006

CLAMP-HOSE,WIRE TYPE

3.5TON #0032

4шт.

19

S520-027000

CLAMP-HOSE

4.0TON #0001 - #0003

5шт.

19

S520-027000

CLAMP-HOSE

4.0TON #0004 - #0031

4шт.

19

S572-270006

CLAMP-HOSE,WIRE TYPE

4.0TON #0032

4шт.

19

S520-027000

CLAMP-HOSE

4.5TON #0096

4шт.

19

S520-027000

CLAMP-HOSE

4.5TON #0097 - #0136

5шт.

19

S520-027000

CLAMP-HOSE

4.5TON #0137 - #0203

4шт.

19

S520-027000

CLAMP-HOSE

4.5TON #0204 - #0613

4шт.

19

S572-270006

CLAMP-HOSE,WIRE TYPE

4.5TON #0614

4шт.

20

905851300

GASKET

1шт.

21

S109-100302

BOLT-SOCKET

3.5TON #0002 - #0036

8шт.

21

S109-100306

BOLT-SOCKET

3.5TON #0087

8шт.

21

S109-100302

BOLT-SOCKET

4.0TON #0001 - #0031

8шт.

21

S109-100306

BOLT-SOCKET

4.0TON #0032

8шт.

21

S109-100302

BOLT-SOCKET

4.5TON #0003 - #0613

8шт.

21

S109-100306

BOLT-SOCKET

4.5TON #0614

8шт.

22

S018-140302

BOLT-HEX

3.5TON #0002 - #0086

2шт.

22

S018-140306

BOLT-HEX

3.5TON #0087

2шт.

22

S018-140302

BOLT-HEX

4.0TON #0001 - #0031

2шт.

22

S018-140306

BOLT-HEX

4.0TON #0032

2шт.

22

S018-140302

BOLT-HEX

4.5TON #0003 - #0613

2шт.

22

S018-140306

BOLT-HEX

4.5TON #0614

2шт.

23

S411-100002

WASHER-SPRING

3.5TON #0002 - #0086

8шт.

23

S411-100006

WASHER-SPRING

3.5TON #0087

8шт.

23

S411-100002

WASHER-SPRING

4.0TON #0001 - #0031

8шт.

23

S411-100006

WASHER-SPRING

4.0TON #0032

8шт.

23

S411-100002

WASHER-SPRING

4.5TON #0003 - #0613

8шт.

23

S411-100006

WASHER-SPRING

4.5TON #0614

8шт.

24

S411-140002

WASHER-SPRING

3.5TON #0002 - #0086

2шт.

24

S411-140006

WASHER-SPRING

3.5TON #0087

2шт.

24

S411-140002

WASHER-SPRING

4.0TON #0001 - #0031

2шт.

24

S411-140006

WASHER-SPRING

4.0TON #0032

2шт.

24

S411-140002

WASHER-SPRING

4.5TON #0003 - #0613

2шт.

24

S411-140006

WASHER-SPRING

4.5TON #0614

2шт.

25

Y171-027004

O-RING

1шт.

26

Y171-024004

O-RING

1шт.

27

S611-023001

O-RING

2шт.

28

S611-019001

O-RING

3.5TON #0086

1шт.

28

S611-030001

O-RING

3.5TON #0087

1шт.

28

S611-019001

O-RING

4.0TON #0031

1шт.

28

S611-030001

O-RING

4.0TON #0032

1шт.

28

S611-019001

O-RING

4.5TON #0613

1шт.

28

S611-030001

O-RING

4.5TON #0614

1шт.

29

S631-016001

O-RING

3.5TON #0086

1шт.

29

S611-016001

O-RING

3.5TON #0087

1шт.

29

S631-016001

O-RING

4.0TON #0031

1шт.

29

S611-016001

O-RING

4.0TON #0032

1шт.

29

S631-016001

O-RING

4.5TON #0613

1шт.

29

S611-016001

O-RING

4.5TON #0614

1шт.

30

S621-014001

O-RING

2шт.

31

S621-018001

O-RING

5шт.

32

P173-160104

FLANGE-HYD,SPLIT

2шт.

33

P173-200106

FLANGE-HYD,SPLIT

2шт.

34

31EK-11130

COUPLING-SCREW

3.5TON #0086

1шт.

34

31FV-25041

CONNECTOR

3.5TON #0087

1шт.

34

31EK-11130

COUPLING-SCREW

4.0TON #0031

1шт.

34

31FV-25041

CONNECTOR

4.0TON #0032

1шт.

34

31EK-11130

COUPLING-SCREW

4.5TON #0613

1шт.

34

31FV-25041

CONNECTOR

4.5TON #0614

1шт.

35

S631-011004

O-RING

3.5TON #0086

1шт.

35

X500-310005

CONNECTOR-ORFS

3.5TON #0087

1шт.

35

S631-011004

O-RING

4.0TON #0031

1шт.

35

X500-310005

CONNECTOR-ORFS

4.0TON #0032

1шт.

35

S631-011004

O-RING

4.5TON #0613

1шт.

35

X500-310005

CONNECTOR-ORFS

4.5TON #0614

1шт.

36

P392-180000

WASHER-COPPER

1шт.

37

X700-100104

PLUG-ORFS

3.5TON #0086

1шт.

37

X700-100105

PLUG-ORFS

3.5TON #0087

1шт.

37

X700-100104

PLUG-ORFS

4.0TON #0031

1шт.

37

X700-100105

PLUG-ORFS

4.0TON #0032

1шт.

37

X700-100104

PLUG-ORFS

4.5TON #0613

1шт.

37

X700-100105

PLUG-ORFS

4.5TON #0614

1шт.

38

31N6-66060

TEE-TEST

3.5TON #0012 - #0086

1шт.

38

31F6-05000

FLOW REGULATOR

3.5TON #0087

1шт.

38

31N6-66060

TEE-TEST

4.0TON #0002 - #0031

1шт.

38

31F6-05000

FLOW REGULATOR

4.0TON #0032

1шт.

38

31N6-66060

TEE-TEST

4.5TON #0039 - #0613

1шт.

38

31F6-05000

FLOW REGULATOR

4.5TON #0614

1шт.

39

P220-110102

PLUG-HEX

3.5TON #0012 - #0031

1шт.

39

31FV-25030

ELBOW-90

3.5TON #0087

1шт.

39

P220-110102

PLUG-HEX

4.0TON #0002 - #0003

1шт.

39

31FV-25030

ELBOW-90

4.0TON #0032

1шт.

39

P220-110102

PLUG-HEX

4.5TON #0039 - #0203

1шт.

39

31FV-25030

ELBOW-90

4.5TON #0614

1шт.

40

11F1-5032

CAP-RUBBER

3.5TON #0019 - #0033

1шт.

40

31L7-10210

CLAMP-TUBE,INS

3.5TON #0034

1шт.

40

11F1-5032

CAP-RUBBER

4.0TON #0001 - #0003

1шт.

40

31L7-10210

CLAMP-TUBE,INS

4.0TON #0004

1шт.

40

11F1-5032

CAP-RUBBER

4.5TON #0097 - #0209

1шт.

40

31L7-10210

CLAMP-TUBE,INS

4.5TON #0210

1шт.

41

31L7-10210

CLAMP-TUBE,INS

3.5TON #0034 - #0033

1шт.

41

S035-081526

BOLT-W/WASHER

3.5TON #0087

1шт.

41

31L7-10210

CLAMP-TUBE,INS

4.0TON #0004 - #0031

1шт.

41

S035-081526

BOLT-W/WASHER

4.0TON #0032

1шт.

41

31L7-10210

CLAMP-TUBE,INS

4.5TON #0210 - #0613

1шт.

41

S035-081526

BOLT-W/WASHER

4.5TON #0614

1шт.

42

S035-081526

BOLT-W/WASHER

3.5TON #0034 - #0086

1шт.

42

31LF-30080

ELBOW-90

3.5TON #0087

1шт.

42

S035-081526

BOLT-W/WASHER

4.0TON #0004 - #0031

1шт.

42

31LF-30080

ELBOW-90

4.0TON #0032

1шт.

42

S035-081526

BOLT-W/WASHER

4.5TON #0210 - #0613

1шт.

42

31LF-30080

ELBOW-90

4.5TON #0614

1шт.

43

P930-124025

HOSE ASSY-ORFS 0X90

35DS #0087

1шт.

43

P930-124025

HOSE ASSY-ORFS 0X90

40DS #0032

1шт.

43

P930-124025

HOSE ASSY-ORFS 0X90

45DS #0614

1шт.

44

S411-080006

WASHER-SPRING

35DS #0087

2шт.

44

S411-080006

WASHER-SPRING

40DS #0032

2шт.

44

S411-080006

WASHER-SPRING

45DS #0614

2шт.

45

31HP-03000

PRIORITY V/V

35DS #0087

1шт.

45

31HP-03000

PRIORITY V/V

40DS #0032

1шт.

45

31HP-03000

PRIORITY V/V

45DS #0614

1шт.

46

S015-080656

BOLT-HEX

35DS #0087

2шт.

46

S015-080656

BOLT-HEX

40DS #0032

2шт.

46

S015-080656

BOLT-HEX

45DS #0614

2шт.

100

S552-050203

CLAMP-BAND

35DS #0087

5шт.

100

S552-050203

CLAMP-BAND

40DS #0032

5шт.

100

S552-050203

CLAMP-BAND

45DS #0614

5шт.
