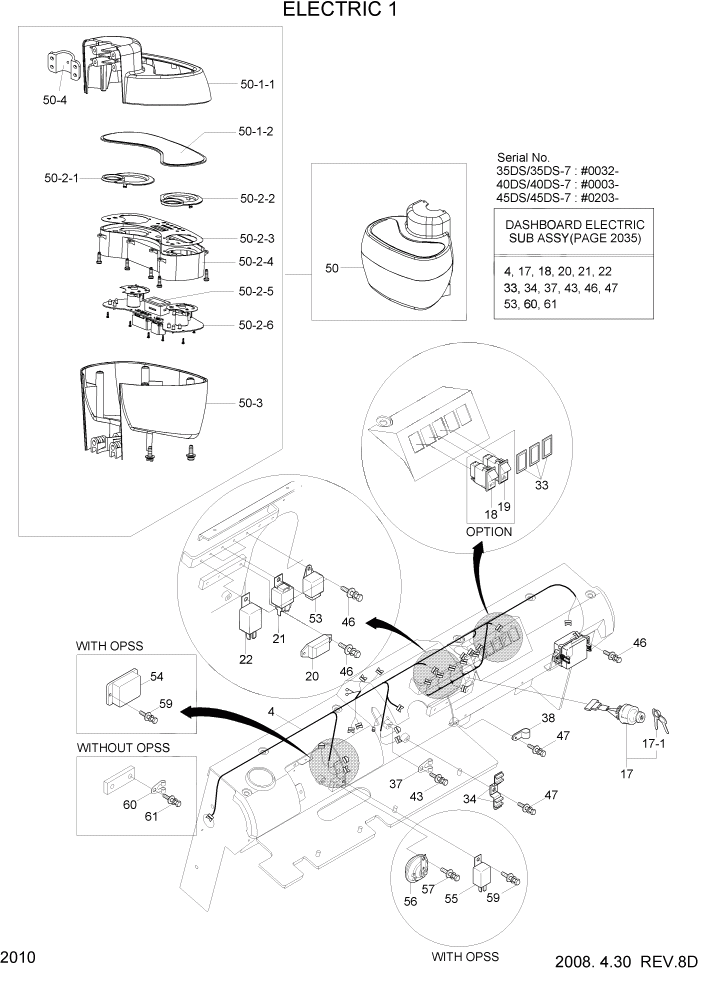

Запчасти Hyundai 35/40/45DS-7 PAGE 2010 ELECTRIC 1 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

4

21FV-10133

HARNESS-DASHBOARD

35DS,SEE 2040 #0001 - #0042

1шт.

4

21FV-10134

HARNESS-DASHBOARD

35DS,SEE 2040 #0043

1шт.

4

21FV-10133

HARNESS-DASHBOARD

40DS,SEE 2040 #0001 - #0006

1шт.

4

21FV-10134

HARNESS-DASHBOARD

40DS,SEE 2040 #0007

1шт.

4

21FV-10133

HARNESS-DASHBOARD

45DS,SEE 2040 #0001 - #0272

1шт.

4

21FV-10134

HARNESS-DASHBOARD

45DS,SEE 2040 #0273

1шт.

17

21FJ-10051

SWITCH-START

1шт.

17-1

21FJ-10151

KEY ASSY

2шт.

18

21E6-30410

SWITCH-WORK LIGHT

1шт.

19

21E6-30570

SWITCH-HAZARD

1шт.

20

F14890010

REGULATOR

1шт.

21

21E4-0011

RELAY-4P

3шт.

22

21ER-60702

FLASHER UNIT ASSY

1шт.

33

21E6-10460

COVER

3шт.

34

21N4-01130

PLATE-CLIP

2шт.

37

S593-001302

CLIP-HARNESS

35DS #0031

3шт.

37

S593-001302

CLIP-HARNESS

35DS #0032

5шт.

37

S593-001302

CLIP-HARNESS

40DS #0003

3шт.

37

S593-001302

CLIP-HARNESS

40DS #0004

5шт.

37

S593-001302

CLIP-HARNESS

45DS #0203

3шт.

37

S593-001302

CLIP-HARNESS

45DS #0204

5шт.

38

S543-240002

CLAMP-TUBE

1шт.

43

S035-081522

BOLT-W/WASHER

1шт.

46

S035-061522

BOLT-W/WASHER

9шт.

47

S035-081522

BOLT-W/WASHER

2шт.

50

21FV-10311

CLUSTER

#0001

1шт.

50-1

21FV-10610

UPPER PANEL

1шт.

50-1-1

21FV-11600

UPPER COVER

1шт.

50-1-2

21FV-11610

SCREEN

1шт.

50-2

21FV-10630

PCB PANEL ASSY

1шт.

50-2-1

21FV-11620

PANEL COVER-LH

1шт.

50-2-2

21FV-11630

PANEL COVER-RH

1шт.

50-2-3

21FV-11640

DECAL

1шт.

50-2-4

21FV-11650

CASE-PANEL

1шт.

50-2-5

21FV-11670

METER-HOUR

1шт.

50-2-6

21FV-11660

PCB B'D ASSY

1шт.

50-3

21FV-10620

BOTTOM COVER

1шт.

50-4

71FV-20120

RUBBER

1шт.

53

XJAF-01172

TIMER-GLOW

1шт.

54

21FU-10610

OPSS UNIT

WITH OPSS,35DS #0070

1шт.

54

21FU-10612

OPSS UNIT

WITH OPSS,35DS #0071

1шт.

54

21FU-10610

OPSS UNIT

WITH OPSS,40DS #0021

1шт.

54

21FU-10612

OPSS UNIT

WITH OPSS,40DS #0022

1шт.

54

21FU-10610

OPSS UNIT

WITH OPSS,45DS #0493

1шт.

54

21FU-10612

OPSS UNIT

WITH OPSS,45DS #0494

1шт.

55

E125-2545

RELAY-5P

WITH OPSS

1шт.

56

21FQ-10810

BUZZER-24V,INTERMITTENT

WITH OPSS

1шт.

57

S161-050206

SCREW-CROSS R/ROUND

WITH OPSS

1шт.

59

S035-061522

BOLT-W/WASHER

WITH OPSS

3шт.

60

S593-000652

CLIP-HARNESS

WITHOUT OPSS

1шт.

61

S035-061522

BOLT-W/WASHER

WITHOUT OPSS

1шт.
