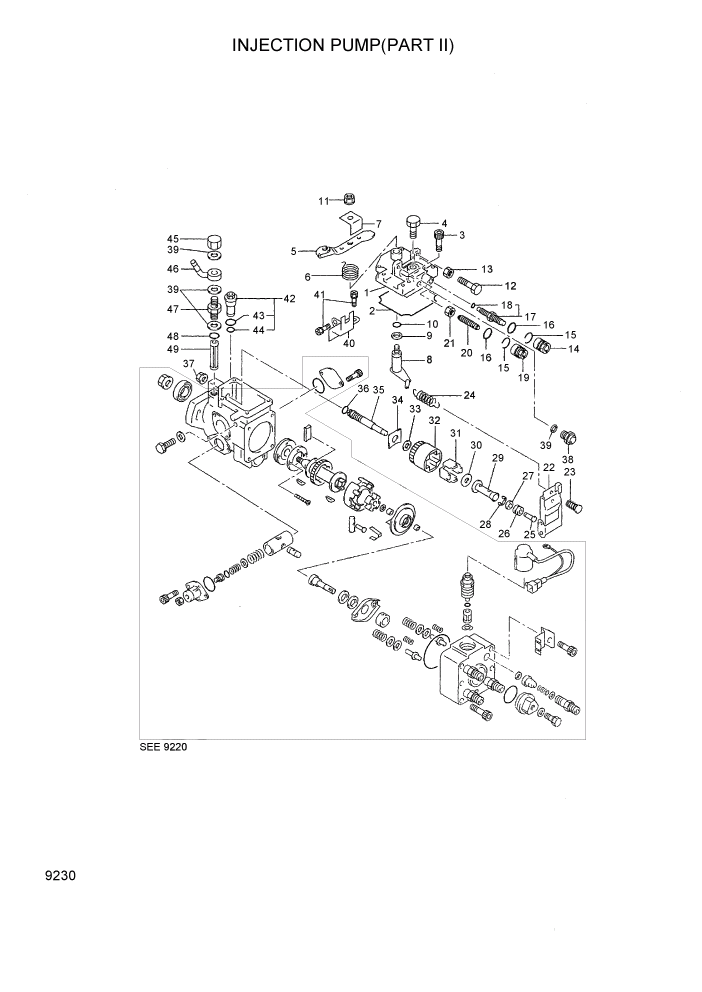

Запчасти Hyundai 35/40/45DS-7 PAGE 9230 INJECTION PUMP(PART II) ДВИГАТЕЛЬ БАЗА

*

@

INJ PUMP ASSY

NOT

1шт.

1

XJAF-00979

COVER SUB ASSY

1шт.

2

XJAF-00980

GASKET

1шт.

3

XJAF-00981

BOLT-SOCKET

4шт.

4

XJAF-00982

SCREW-OVERFLOW

1шт.

5

XJAF-00983

LEVER-ADJUSTING

MARK 728

1шт.

5

XJAF-00984

LEVER-ADJUSTING

MARK 729

1шт.

5

XJAF-00985

LEVER-ADJUSTING

MARK 730

1шт.

7

XJAF-00986

SPRING-RETURN

1шт.

7

XJAF-00987

GUIDE-RETURN SPRING

1шт.

8

XJAF-00988

SHAFT-GOVERNOR

MARK 31

1шт.

8

XJAF-00989

SHAFT-GOVERNOR

MARK 58

1шт.

9

9627-3014

WASHER

1шт.

10

XJAF-01130

O-RING

1шт.

11

XJAF-00990

NUT

1шт.

12

XJAF-00991

BOLT-HEXAGON

1шт.

13

XJAF-00992

NUT-HEXAGON

1шт.

14

XJAF-00993

COLLAR

1шт.

15

XJAF-00994

RING-SNAP

2шт.

16

XJAF-00995

O-RING

2шт.

17

XJAF-00996

SMOKE SET SUB ASSY

1шт.

18

XJAF-00997

O-RING

1шт.

19

XJAF-00998

COLLAR SMOKE SET

1шт.

20

XJAF-00999

SCREW-LEVER STOP

1шт.

21

XJAF-01000

NUT-LOCK

1шт.

22

XJAF-01158

GOVERNOR ASSY

1шт.

23

XJAF-01002

SEAT SUB ASSY

1шт.

24

XJAF-01003

SPRING-SPEED CONTROL

1шт.

25

XJAF-01004

PLUG-GOV SLEEVE

T=2.1

1шт.

25

XJAF-01005

PLUG-GOV SLEEVE

T=2.2

1шт.

25

XJAF-01006

PLUG-GOV SLEEVE

T=2.3

1шт.

25

XJAF-01007

PLUG-GOV SLEEVE

T=2.4

1шт.

25

XJAF-01008

PLUG-GOV SLEEVE

T=2.5

1шт.

25

XJAF-01009

PLUG-GOV SLEEVE

T=2.6

1шт.

25

XJAF-01010

PLUG-GOV SLEEVE

T=2.7

1шт.

25

XJAF-01011

PLUG-GOV SLEEVE

T=2.8

1шт.

25

XJAF-01012

PLUG-GOV SLEEVE

T=2.9

1шт.

25

XJAF-01013

PLUG-GOV SLEEVE

T=3.0

1шт.

25

XJAF-01014

PLUG-GOV SLEEVE

T=3.1

1шт.

25

XJAF-01015

PLUG-GOV SLEEVE

T=3.2

1шт.

25

XJAF-01016

PLUG-GOV SLEEVE

T=3.3

1шт.

25

XJAF-01017

PLUG-GOV SLEEVE

T=3.4

1шт.

25

XJAF-01018

PLUG-GOV SLEEVE

T=3.5

1шт.

25

XJAF-01019

PLUG-GOV SLEEVE

T=3.6

1шт.

25

XJAF-01020

PLUG-GOV SLEEVE

T=3.7

1шт.

25

XJAF-01021

PLUG-GOV SLEEVE

T=3.8

1шт.

25

XJAF-01022

PLUG-GOV SLEEVE

T=3.9

1шт.

25

XJAF-01023

PLUG-GOV SLEEVE

T=4.0

1шт.

25

XJAF-01024

PLUG-GOV SLEEVE

T=4.1

1шт.

25

XJAF-01025

PLUG-GOV SLEEVE

T=4.2

1шт.

25

XJAF-01026

PLUG-GOV SLEEVE

T=4.3

1шт.

25

XJAF-01027

PLUG-GOV SLEEVE

T=4.5

1шт.

25

XJAF-01028

PLUG-GOV SLEEVE

T=4.6

1шт.

25

XJAF-01029

PLUG-GOV SLEEVE

T=4.7

1шт.

25

XJAF-01030

PLUG-GOV SLEEVE

T=4.8

1шт.

25

XJAF-01031

PLUG-GOV SLEEVE

T=4.9

1шт.

25

XJAF-01032

PLUG-GOV SLEEVE

T=5.0

1шт.

25

XJAF-01033

PLUG-GOV SLEEVE

T=5.1

1шт.

25

XJAF-01034

PLUG-GOV SLEEVE

T=5.2

1шт.

25

XJAF-01035

PLUG-GOV SLEEVE

T=5.3

1шт.

26

XJAF-01036

BEARING-BALL

1шт.

27

XJAF-01037

RING

1шт.

28

XJAF-01038

E-RING

1шт.

29

XJAF-01159

SLEEVE-GOVERNOR

MARK 219

1шт.

29

XJAF-01160

SLEEVE-GOVERNOR

MARK 220

1шт.

29

XJAF-01161

SLEEVE-GOVERNOR

MARK 221

1шт.

30

XJAF-01042

WASHER-FLYWEIGHT

1шт.

31

XJAF-01131

FLYWEIGHT

4шт.

32

XJAF-01043

HOLDER SUB ASSY

1шт.

33

XJAF-01044

WASHER-FLYWEIGHT

1шт.

34

XJAF-01045

WASHER

T=1.05

1шт.

34

XJAF-01046

WASHER

T=1.25

1шт.

34

XJAF-01047

WASHER

T=1.45

1шт.

34

XJAF-01048

WASHER

T=1.65

1шт.

34

XJAF-01049

WASHER

T=1.85

1шт.

34

XJAF-01050

WASHER

T=1.55

1шт.

34

XJAF-01051

WASHER

T=1.75

1шт.

34

XJAF-01052

WASHER

T=2.05

1шт.

34

XJAF-01053

WASHER

T=1.30

1шт.

34

XJAF-01054

WASHER

T=1.40

1шт.

34

XJAF-01055

WASHER

T=1.50

1шт.

34

XJAF-01056

WASHER

T=1.60

1шт.

34

XJAF-01057

WASHER

T=1.15

1шт.

34

XJAF-01058

WASHER

T=1.20

1шт.

34

XJAF-01059

WASHER

T=1.70

1шт.

34

XJAF-01060

WASHER

T=1.80

1шт.

35

XJAF-01061

SHAFT SUB ASSY

1шт.

36

XJAF-01062

O-RING

1шт.

37

XJAF-01063

NUT

1шт.

38

XJAF-01064

BODY-REGULATE VALVE

1шт.

39

XJAF-01065

WASHER

4шт.

40

XJAF-01066

BRACKET

1шт.

41

XJAF-01067

BOLT-W/WASHER

2шт.

42

XJAF-01068

VALVE SUB ASSY

1шт.

43

XJAF-01069

O-RING

1шт.

44

XJAF-01070

O-RING

1шт.

45

XJAF-01071

NUT-CAP

1шт.

46

XJAF-01072

NIPPLE SUB ASSY

1шт.

47

XJAF-01073

SCREW-HOLLOW

1шт.

48

XJAF-01074

O-RING

1шт.

49

XJAF-01075

FILTER SUB ASSY

1шт.
