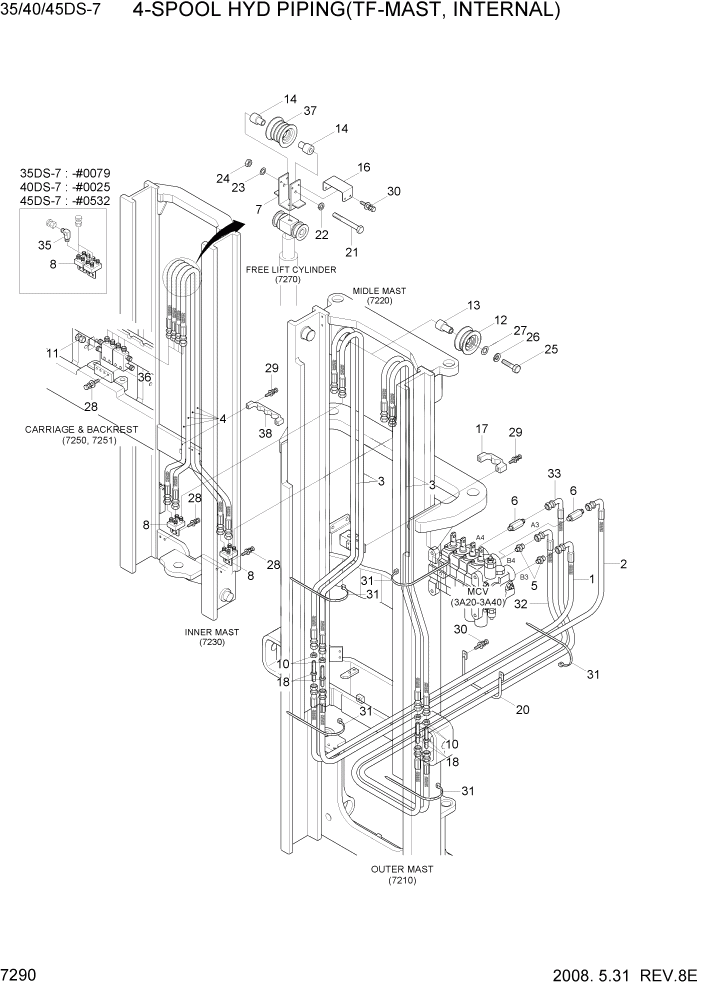

Запчасти Hyundai 35/40/45DS-7 PAGE 7290 4-SPOOL HYD PIPING(TF-MAST,INTERNAL) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-064032

HOSE ASSY-ORFS 0X90

1шт.

2

P933-064033

HOSE ASSY-ORFS 0X90

1шт.

3

P910-064052

HOSE ASSY-ORFS 0X0

TF370

4шт.

3

P910-064055

HOSE ASSY-ORFS 0X0

TF400

4шт.

3

P910-064059

HOSE ASSY-ORFS 0X0

TF430

4шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

TF450

4шт.

3

P910-064065

HOSE ASSY-ORFS 0X0

TF470

4шт.

3

P910-064069

HOSE ASSY-ORFS 0X0

TF500

4шт.

3

P910-064076

HOSE ASSY-ORFS 0X0

TF550

4шт.

3

P910-064083

HOSE ASSY-ORFS 0X0

TF600

4шт.

4

P910-064045

HOSE ASSY-ORFS 0X0

TF370

4шт.

4

P910-064046

HOSE ASSY-ORFS 0X0

TF400

4шт.

4

P910-064047

HOSE ASSY-ORFS 0X0

TF430

4шт.

4

P910-064048

HOSE ASSY-ORFS 0X0

TF450

4шт.

4

P910-064049

HOSE ASSY-ORFS 0X0

TF470

4шт.

4

P910-064050

HOSE ASSY-ORFS 0X0

TF500

4шт.

4

P910-064052

HOSE ASSY-ORFS 0X0

TF550

4шт.

4

P910-064053

HOSE ASSY-ORFS 0X0

TF600

4шт.

5

31FN-10070

CONNECTOR-ORFS

2шт.

6

31FK-80100

CONNECTOR-LONG

2шт.

7

33FV-90020

BRACKET WA-PULLEY

3.5TON #0079

2шт.

7

33HA-90801

BRACKET WA-PULLEY

3.5TON #0080

1шт.

7

33FV-90020

BRACKET WA-PULLEY

4.0TON #0025

2шт.

7

33HA-90801

BRACKET WA-PULLEY

4.0TON #0026

1шт.

7

33FV-90020

BRACKET WA-PULLEY

4.5TON #0532

2шт.

7

33HA-90801

BRACKET WA-PULLEY

4.5TON #0533

1шт.

8

33FV-90030

BRACKET WA-HOSE

2шт.

10

31FG-80430

NUT-HEX

8шт.

11

X710-100103

CAP

4шт.

12

34FG-90201

PULLEY-HOSE

3.5TON #0079

4шт.

12

34FG-90201

PULLEY-HOSE

3.5TON #0080

2шт.

12

34FG-90201

PULLEY-HOSE

4.0TON #0025

4шт.

12

34FG-90201

PULLEY-HOSE

4.0TON #0026

2шт.

12

34FG-90201

PULLEY-HOSE

4.5TON #0532

4шт.

12

34FG-90201

PULLEY-HOSE

4.5TON #0533

2шт.

13

31FV-90130

PIN-HOSE PULLEY

2шт.

14

34FG-90250

PIN-HOSE PULLEY

3.5TON #0079

2шт.

14

34FG-90351

PIN-HOSE PULLEY

3.5TON #0080

2шт.

14

34FG-90250

PIN-HOSE PULLEY

4.0TON #0025

2шт.

14

34FG-90351

PIN-HOSE PULLEY

4.0TON #0026

2шт.

14

34FG-90250

PIN-HOSE PULLEY

4.5TON #0532

2шт.

14

34FG-90351

PIN-HOSE PULLEY

4.5TON #0533

2шт.

15

34FG-90290

SPACER

3.5TON #0079

1шт.

15

34FG-90290

SPACER

4.0TON #0025

1шт.

15

34FG-90290

SPACER

4.5TON #0532

1шт.

16

34FG-90270

COVER

1шт.

17

34FG-90260

CLAMP-HOSE

3.5TON #0079

4шт.

17

34FG-90260

CLAMP-HOSE

3.5TON #0080

2шт.

17

34FG-90260

CLAMP-HOSE

4.0TON #0025

4шт.

17

34FG-90260

CLAMP-HOSE

4.0TON #0026

2шт.

17

34FG-90260

CLAMP-HOSE

4.5TON #0532

4шт.

17

34FG-90260

CLAMP-HOSE

4.5TON #0533

2шт.

18

31FG-80210

CONNECTOR

4шт.

20

31FV-90220

GUARD WA-HOSE

1шт.

35

31FG-10030

ELBOW-90

40DS-7 #0001

1шт.

35

31FG-10030

ELBOW-90

45DS-7 #0034

1шт.

21

S017-101352

BOLT-HEX

1шт.

22

S411-100002

WASHER-SPRING

1шт.

23

S275-100002

NUT-SELF LOCKING

1шт.

24

S403-102002

WASHER-PLAIN

1шт.

25

S017-120602

BOLT-HEX

2шт.

26

S411-120002

WASHER-SPRING

2шт.

27

S441-120002

WASHER-HARDENED

2шт.

28

S037-102522

BOLT-W/WASHER

8шт.

29

S035-063522

BOLT-W/WASHER

8шт.

30

S035-081522

BOLT-W/WASHER

2шт.

31

S552-050203

CLAMP-BAND

10шт.

32

P933-064040

HOSE ASSY-ORFS 0X90

1шт.

33

P933-064042

HOSE ASSY-ORFS 0X90

1шт.

35

31FG-10030

ELBOW-90

3.5TON #0009 - #0079

1шт.

35

31FG-10030

ELBOW-90

4.0TON #0001 - #0025

1шт.

35

31FG-10030

ELBOW-90

4.5TON #0034 - #0532

1шт.

36

34FK-90401

BLOCK WA

3.5TON #0080

2шт.

36

34FK-90401

BLOCK WA

4.0TON #0026

2шт.

36

34FK-90401

BLOCK WA

4.5TON #0532

2шт.

37

33HD-90370

PULLEY-HOSE

3.5TON #0080

1шт.

37

33HD-90370

PULLEY-HOSE

4.0TON #0026

1шт.

37

33HD-90370

PULLEY-HOSE

4.5TON #0532

1шт.

38

34FG-90460

CLAMP-HOSE

3.5TON #0080

1шт.

38

34FG-90460

CLAMP-HOSE

4.0TON #0026

1шт.

38

34FG-90460

CLAMP-HOSE

4.5TON #0532

1шт.
