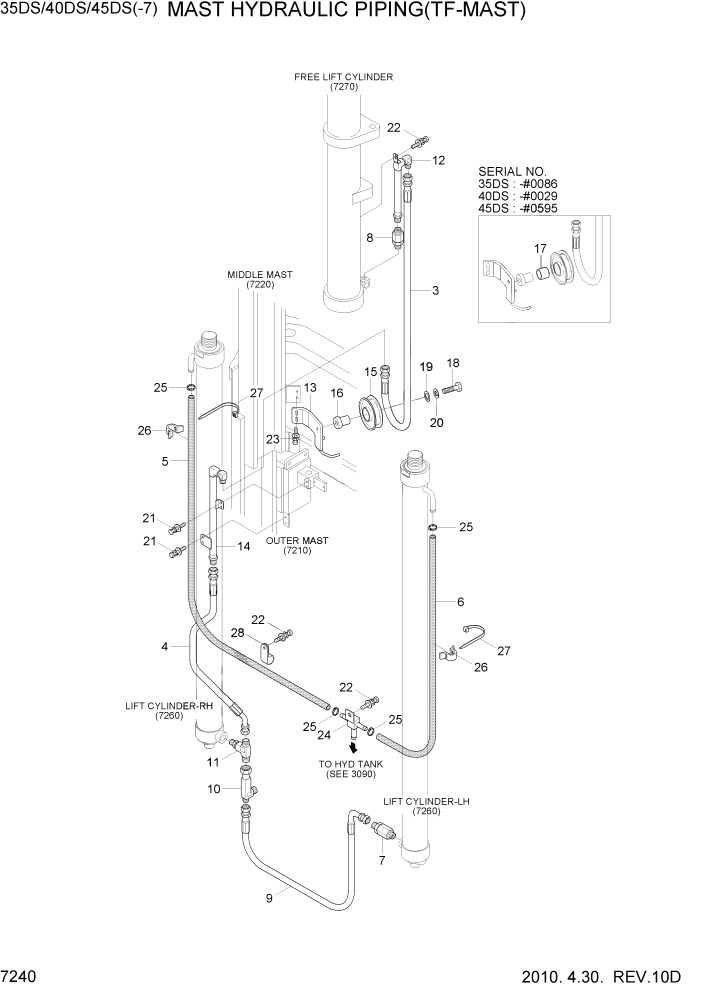

Запчасти Hyundai 35/40/45DS-7 PAGE 7240 MAST HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

3

P910-124036

HOSE ASSY-ORFS 0X0

TF370

1шт.

3

P910-124038

HOSE ASSY-ORFS 0X0

TF400

1шт.

3

P910-124040

HOSE ASSY-ORFS 0X0

TF430

1шт.

3

P910-124041

HOSE ASSY-ORFS 0X0

TF450

1шт.

3

P910-124043

HOSE ASSY-ORFS 0X0

TF470

1шт.

3

P910-124045

HOSE ASSY-ORFS 0X0

TF500

1шт.

3

P910-124048

HOSE ASSY-ORFS 0X0

TF550

1шт.

3

P910-124052

HOSE ASSY-ORFS 0X0

TF600

1шт.

4

P920-124014

HOSE ASSY-ORFS 0X45

TF370,3.5TON #0079

1шт.

4

P913-124014

HOSE ASSY-ORFS 0X0

TF370,3.5TON #0080

1шт.

4

P920-124014

HOSE ASSY-ORFS 0X45

TF370,4.0TON #0025

1шт.

4

P913-124014

HOSE ASSY-ORFS 0X0

TF370,4.0TON #0026

1шт.

4

P920-124014

HOSE ASSY-ORFS 0X45

TF370,4.5TON #0532

1шт.

4

P913-124014

HOSE ASSY-ORFS 0X0

TF370,4.5TON #0533

1шт.

4

P920-124016

HOSE ASSY-ORFS 0X45

TF400,3.5TON #0079

1шт.

4

P913-124016

HOSE ASSY-ORFS 0X0

TF400,3.5TON #0080

1шт.

4

P920-124016

HOSE ASSY-ORFS 0X45

TF400,4.0TON #0025

1шт.

4

P913-124016

HOSE ASSY-ORFS 0X0

TF400,4.0TON #0026

1шт.

4

P920-124016

HOSE ASSY-ORFS 0X45

TF400,4.5TON #0532

1шт.

4

P913-124016

HOSE ASSY-ORFS 0X0

TF400,4.5TON #0533

1шт.

4

P920-124018

HOSE ASSY-ORFS 0X45

TF430,3.5TON #0079

1шт.

4

P913-124018

HOSE ASSY-ORFS 0X0

TF430,3.5TON #0080

1шт.

4

P920-124018

HOSE ASSY-ORFS 0X45

TF430,4.0TON #0025

1шт.

4

P913-124018

HOSE ASSY-ORFS 0X0

TF430,4.0TON #0026

1шт.

4

P920-124018

HOSE ASSY-ORFS 0X45

TF430,4.5TON #0532

1шт.

4

P913-124018

HOSE ASSY-ORFS 0X0

TF430,4.5TON #0533

1шт.

4

P920-124019

HOSE ASSY-ORFS 0X45

TF450,3.5TON #0079

1шт.

4

P913-124019

HOSE ASSY-ORFS 0X0

TF450,3.5TON #0080

1шт.

4

P920-124019

HOSE ASSY-ORFS 0X45

TF450,4.0TON #0025

1шт.

4

P913-124019

HOSE ASSY-ORFS 0X0

TF450,4.0TON #0026

1шт.

4

P920-124019

HOSE ASSY-ORFS 0X45

TF450,4.5TON #0532

1шт.

4

P913-124019

HOSE ASSY-ORFS 0X0

TF450,4.5TON #0533

1шт.

4

P920-124021

HOSE ASSY-ORFS 0X45

TF470,3.5TON #0079

1шт.

4

P913-124021

HOSE ASSY-ORFS 0X0

TF470,3.5TON #0080

1шт.

4

P920-124021

HOSE ASSY-ORFS 0X45

TF470,4.0TON #0025

1шт.

4

P913-124021

HOSE ASSY-ORFS 0X0

TF470,4.0TON #0026

1шт.

4

P920-124021

HOSE ASSY-ORFS 0X45

TF470,4.5TON #0532

1шт.

4

P913-124021

HOSE ASSY-ORFS 0X0

TF470,4.5TON #0533

1шт.

4

P920-124023

HOSE ASSY-ORFS 0X45

TF500,3.5TON #0079

1шт.

4

P913-124023

HOSE ASSY-ORFS 0X0

TF500,3.5TON #0080

1шт.

4

P920-124023

HOSE ASSY-ORFS 0X45

TF500,4.0TON #0025

1шт.

4

P913-124023

HOSE ASSY-ORFS 0X0

TF500,4.0TON #0026

1шт.

4

P920-124023

HOSE ASSY-ORFS 0X45

TF500,4.5TON #0532

1шт.

4

P913-124023

HOSE ASSY-ORFS 0X0

TF500,4.5TON #0533

1шт.

4

P920-124027

HOSE ASSY-ORFS 0X45

TF550,3.5TON #0079

1шт.

4

P913-124026

HOSE ASSY-ORFS 0X0

TF550,3.5TON #0080

1шт.

4

P920-124027

HOSE ASSY-ORFS 0X45

TF550,4.0TON #0025

1шт.

4

P913-124026

HOSE ASSY-ORFS 0X0

TF550,4.0TON #0026

1шт.

4

P920-124027

HOSE ASSY-ORFS 0X45

TF550,4.5TON #0532

1шт.

4

P913-124026

HOSE ASSY-ORFS 0X0

TF550,4.5TON #0533

1шт.

4

P920-124031

HOSE ASSY-ORFS 0X45

TF600,3.5TON #0079

1шт.

4

P913-124030

HOSE ASSY-ORFS 0X0

TF600,3.5TON #0080

1шт.

4

P920-124031

HOSE ASSY-ORFS 0X45

TF600,4.0TON #0025

1шт.

4

P913-124030

HOSE ASSY-ORFS 0X0

TF600,4.0TON #0026

1шт.

4

P920-124031

HOSE ASSY-ORFS 0X45

TF600,4.5TON #0532

1шт.

4

P913-124030

HOSE ASSY-ORFS 0X0

TF600,4.5TON #0533

1шт.

5

904807333

HOSE-RETURN

TF370

1шт.

5

904807334

HOSE-RETURN

TF400

1шт.

5

904807302

HOSE-RETURN

TF430

1шт.

5

904807327

HOSE-RETURN

TF450

1шт.

5

904807320

HOSE-RETURN

TF470

1шт.

5

904807303

HOSE-RETURN

TF500

1шт.

5

904807329

HOSE-RETURN

TF550

1шт.

5

904807306

HOSE-RETURN

TF600

1шт.

6

904807350

HOSE-RETURN

TF370

1шт.

6

904807335

HOSE-RETURN

TF400

1шт.

6

904807321

HOSE-RETURN

TF430

1шт.

6

904807329

HOSE-RETURN

TF450

1шт.

6

904807340

HOSE-RETURN

TF470

1шт.

6

904807307

HOSE-RETURN

TF500

1шт.

6

904807310

HOSE-RETURN

TF550

1шт.

6

904807311

HOSE-RETURN

TF600

1шт.

7

31FV-06500

VALVE-DOWN SAFETY

1шт.

8

33FV-06000

VALVE-VELOCITY FUSE

1шт.

9

P930-084018

HOSE ASSY-ORFS 0X90

1шт.

10

33FV-80010

TEE-SWIVEL

1шт.

11

33FV-80020

TEE

1шт.

12

33FV-80030

PIPE WA

1шт.

13

33FV-80040

BRACKET WA

3.5TON #0079

1шт.

13

33FV-80050

BRACKET WA

3.5TON #0080

1шт.

13

33FV-80040

BRACKET WA

4.0TON #0025

1шт.

25

33HA-83400

HOSE-CLIP

35DS #0052

4шт.

25

S520-027000

CLAMP-HOSE

40DS #0010

4шт.

25

33HA-83400

HOSE-CLIP

40DS #0011

4шт.

25

S520-027000

CLAMP-HOSE

45DS #0333

4шт.

25

33HA-83400

HOSE-CLIP

45DS #0334

4шт.

13

33FV-80050

BRACKET WA

4.0TON #0026

1шт.

13

33FV-80040

BRACKET WA

4.5TON #0532

1шт.

13

33FV-80050

BRACKET WA

4.5TON #0533

1шт.

14

33FV-81030

PIPE ASSY

1шт.

15

33FE-80150

PULLEY-HOSE

35DS #0086

1шт.

15

33FV-80450

PULLEY-HOSE

35DS #0087

1шт.

15

33FE-80150

PULLEY-HOSE

40DS #0029

1шт.

15

33FV-80450

PULLEY-HOSE

40DS #0030

1шт.

15

33FE-80150

PULLEY-HOSE

45DS #0595

1шт.

15

33FV-80450

PULLEY-HOSE

45DS #0596

1шт.

16

33FF-80150

PIN-HOSE PULLEY

35DS #0086

1шт.

16

33HD-80160

PIN-HOSE PULLEY

35DS #0087

1шт.

16

33FF-80150

PIN-HOSE PULLEY

40DS #0029

1шт.

16

33HD-80160

PIN-HOSE PULLEY

40DS #0030

1шт.

16

33FF-80150

PIN-HOSE PULLEY

45DS #0595

1шт.

16

33HD-80160

PIN-HOSE PULLEY

45DS #0596

1шт.

17

S731-020025

BUSHING-DU

1шт.

17

S731-020025

BUSHING-DU

35DS #0086

1шт.

17

S731-020025

BUSHING-DU

40DS #0029

1шт.

17

S731-020025

BUSHING-DU

45DS #0595

1шт.

18

S017-120556

BOLT-HEX

1шт.

19

S441-120006

WASHER-HARDENED

1шт.

20

S411-120006

WASHER-SPRING

1шт.

21

S035-081526

BOLT-W/WASHER

2шт.

22

S037-102026

BOLT-W/WASHER

2шт.

23

S037-103026

BOLT-W/WASHER

2шт.

24

31FE-80010

TEE-RETURN

1шт.

25

S520-027000

CLAMP-HOSE

3.5TON #0051

4шт.

25

33HA-83400

HOSE CLIP

3.5TON #0052

4шт.

25

S520-027000

CLAMP-HOSE

4.0TON #0010

4шт.

25

33HA-83400

HOSE CLIP

4.0TON #0011

4шт.

25

S520-027000

CLAMP-HOSE

4.5TON #0333

4шт.

25

33HA-83400

HOSE CLIP

4.5TON #0334

4шт.

26

31FB-80080

CLAMP-HOSE

6шт.

27

S552-102370

CLAMP-BAND

6шт.

28

S543-240002

CLAMP-TUBE

1шт.
