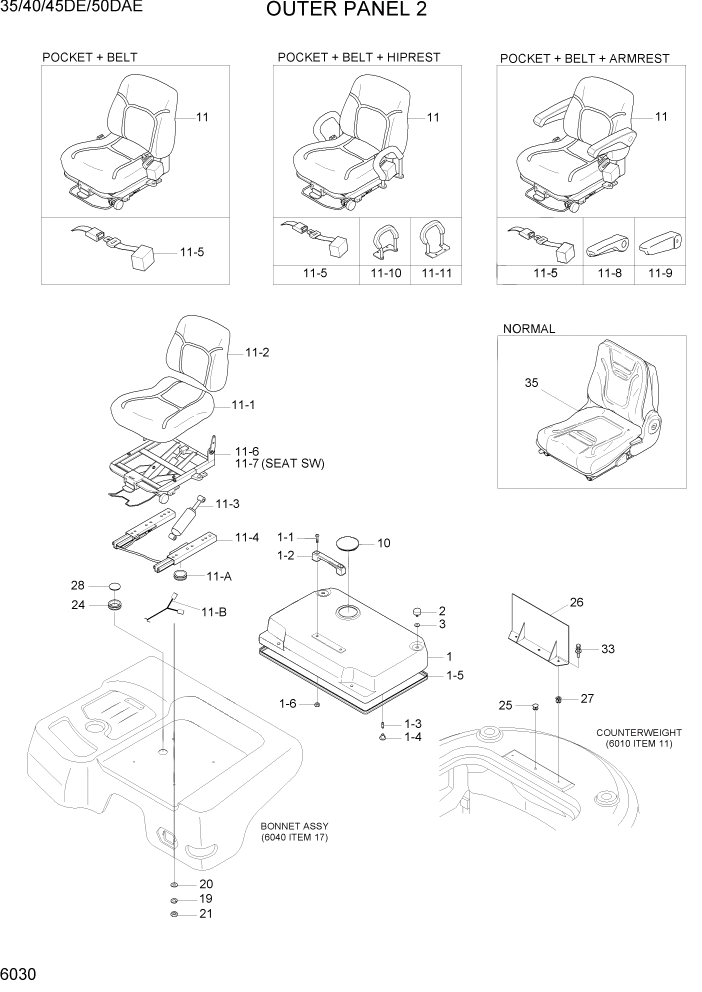

Запчасти Hyundai 35DE/40DE/45DE-7/50D-7AE PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71FV-16021

SUB BONNET ASSY

1шт.

1-1

S161-060206

SCREW-CROSS R/ROUND

2шт.

1-2

71FQ-10650

HANDLE ASSY

1шт.

1-3

71EM-51590

STUD BOLT

18шт.

1-4

71EM-51580

CAP-STUD BOLT

18шт.

1-5

S773-026500

WEATHER STRIP

1шт.

1-6

S205-06100B

NUT-HEX

2шт.

2

FBC0900110-01

KNOB

4шт.

3

71FE-10170

WASHER-RUBBER

4шт.

10

Q101888000

COVER-RUBBER

1шт.

11

71FG-10521

SEAT ASSY(PKT)

W/O OPSS

1шт.

11

71FG-10531

SEAT ASSY(PKT+BT)

W/O OPSS

1шт.

11

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O OPSS

1шт.

11

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O OPSS

1шт.

11

71FH-10511

SEAT ASSY(PKT)

W/O OPSS

1шт.

11

71FH-10521

SEAT ASSY(PKT+BT)

W/O OPSS

1шт.

11

71FH-10531

SEAT ASSY(PKT+BT+HR)

W/O OPSS

1шт.

11

71FH-10541

SEAT ASSY(PKT+BT+AR)

W/O OPSS

1шт.

11-A

310006540

SWITCH-SEAT

NOT SHOWN

1шт.

11-B

B51800050

HARNESS-SEAT

NOT SHOWN

1шт.

11-1

H31013-100C

CUSHION ASSY

1шт.

11-2

H31013-200B

BACK ASSY

1шт.

11-3

H31013-360

SHOCK ABSORBER ASSY

1шт.

11-4

H31013-600B

SLIDE TRACK ASSY

1шт.

11-5

89890-8A610

BELT-SEAT

WITH BELT

1шт.

11-6

H31023-300G

SUSPENSION

W/O OPSS

1шт.

11-7

H31023-301G

SUSPENSION

WITH OPSS

1шт.

11-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST

1шт.

11-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST

1шт.

11-1

H31010-700

HIP RESTRAINT-LH

WITH ARM-REST

1шт.

11-11

H31015-700

HIP RESTRAINT-RH

WITH ARM-REST

1шт.

19

S411-080006

WASHER-SPRING

4шт.

20

S403-08100B

WASHER-PLAIN

4шт.

21

S205-08100B

NUT-HEX

4шт.

24

S681-230800

GROMMET

WITH OPSS

1шт.

25

S981-182000

PLUG

EXPORT

1шт.

26

71FH-10270

PLATE-LICENSE

KOREA

1шт.

27

S981-081100

PLUG-RUBBER

2шт.

28

FHC0904100

RUBBER-STAY

1шт.

33

S035-082526

BOLT-W/WASHER

2шт.

35

F12120200

SEAT ASSY(PKT+BT+AR)

W/O OPSS

1шт.

35

F12120400

SEAT ASSY(PKT+BT)

W/O OPSS

1шт.

35

F12120600

SEAT ASSY(PKT+BT+HR)

W/O OPSS

1шт.
