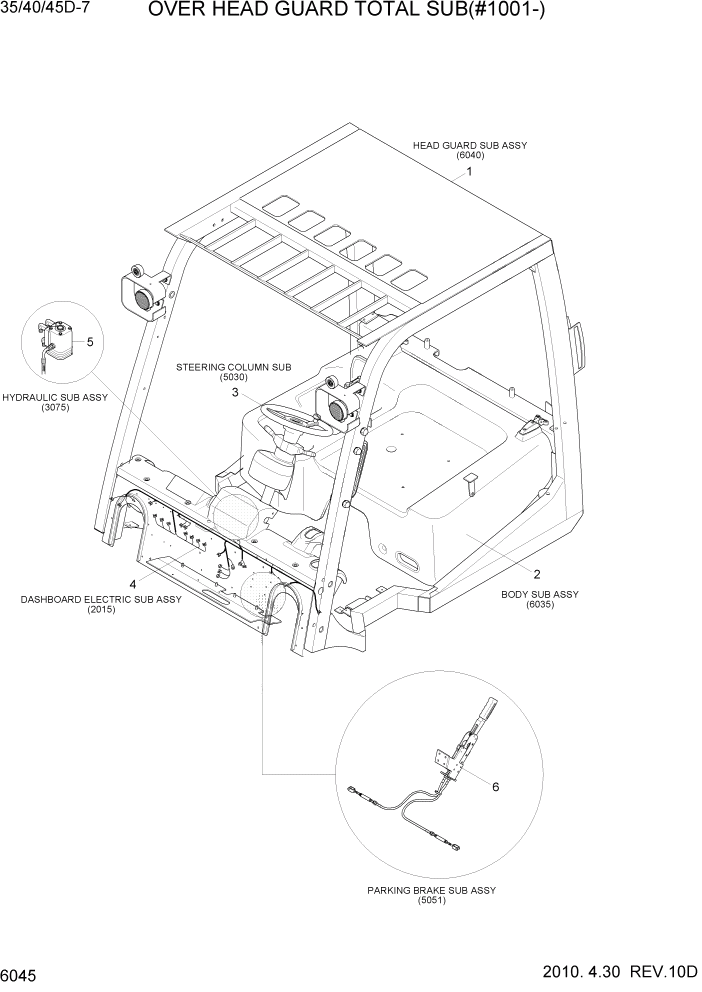

Запчасти Hyundai 35/40/45D-7 PAGE 6045 OVER HEAD GUARD TOTAL SUB(#1001-) СТРУКТУРА

*

77FV-35000

HEAD GUARD TOTAL SUB

3.5TON #1001 - #1039

1шт.

*

77FV-35002

HEAD GUARD TOTAL SUB

3.5TON #1040 - #1236

1шт.

*

77FV-35003

HEAD GUARD SUB ASSY

3.5TON #1237

1шт.

*

77FV-35000

HEAD GUARD TOTAL SUB

4.0TON #1001 - #1006

1шт.

*

77FV-35002

HEAD GUARD TOTAL SUB

4.0TON #1007 - #1047

1шт.

*

77FV-35003

HEAD GUARD SUB ASSY

4.0TON #1048

1шт.

*

77FV-35000

HEAD GUARD TOTAL SUB

4.5TON #1001 - #1066

1шт.

*

77FV-35002

HEAD GUARD TOTAL SUB

4.5TON #1067 - #1450

1шт.

*

77FV-35003

HEAD GUARD SUB ASSY

4.5TON #1451

1шт.

1

71FV-32001

HEAD GUARD SUB ASSY

SEE 6040

1шт.

2

77FV-11010

BODY SUB ASSY

SEE 6035,3.5TON #1039

1шт.

2

77FV-11011

BODY SUB ASSY

SEE 6035,3.5TON #1040 - #1236

1шт.

2

77FV-11012

BODY

SEE 6035,3.5TON #1237

1шт.

2

77FV-11010

BODY SUB ASSY

SEE 6035,4.0TON #1006

1шт.

2

77FV-11011

BODY SUB ASSY

SEE 6035,4.0TON #1007 - #1047

1шт.

2

77FV-11012

BODY

SEE 6035,4.0TON #1048

1шт.

2

77FV-11010

BODY SUB ASSY

SEE 6035,4.5TON #1066

1шт.

2

77FV-11011

BODY SUB ASSY

SEE 6035,4.5TON #1067 - #1450

1шт.

2

77FV-11012

BODY

SEE 6035,4.5TON #1451

1шт.

3

70FV-20001

STEERING COLUMN ASSY

SEE 5030,3.5TON #1039

1шт.

3

70FV-20002

STEERING COLUMN ASSY

SEE 5030,3.5TON #1040

1шт.

3

70FV-20001

STEERING COLUMN ASSY

SEE 5030,4.0TON #1006

1шт.

3

70FV-20002

STEERING COLUMN ASSY

SEE 5030,4.0TON #1007

1шт.

3

70FV-20001

STEERING COLUMN ASSY

SEE 5030,4.5TON #1066

1шт.

3

70FV-20002

STEERING COLUMN ASSY

SEE 5030,4.5TON #1067

1шт.

4

20FV-27120

DASHBOARD ELEC SUB

SEE 2015,3.5TON #1039

1шт.

4

20FV-27121

DASHBOARD ELEC SUB

SEE 2015,3.5TON #1040

1шт.

4

20FV-27120

DASHBOARD ELEC SUB

SEE 2015,4.0TON #1006

1шт.

4

20FV-27121

DASHBOARD ELEC SUB

SEE 2015,4.0TON #1007

1шт.

4

20FV-27120

DASHBOARD ELEC SUB

SEE 2015,4.5TON #1066

1шт.

4

20FV-27121

DASHBOARD ELEC SUB

SEE 2015,4.5TON #1067

1шт.

5

37FV-10100

HYD SUB ASSY-COWL

SEE 3075

1шт.

6

81FV-70150

PARKING SUB ASSY

SEE 5051,3.5TON #1039

1шт.

6

81FV-70151

PARKING SUB ASSY

SEE 5051,3.5TON #1040

1шт.

6

81FV-70150

PARKING SUB ASSY

SEE 5051,4.0TON #1006

1шт.

6

81FV-70151

PARKING SUB ASSY

SEE 5051,4.0TON #1007

1шт.

6

81FV-70150

PARKING SUB ASSY

SEE 5051,4.5TON #1066

1шт.

6

81FV-70151

PARKING SUB ASSY

SEE 5051,4.5TON #1067

1шт.
