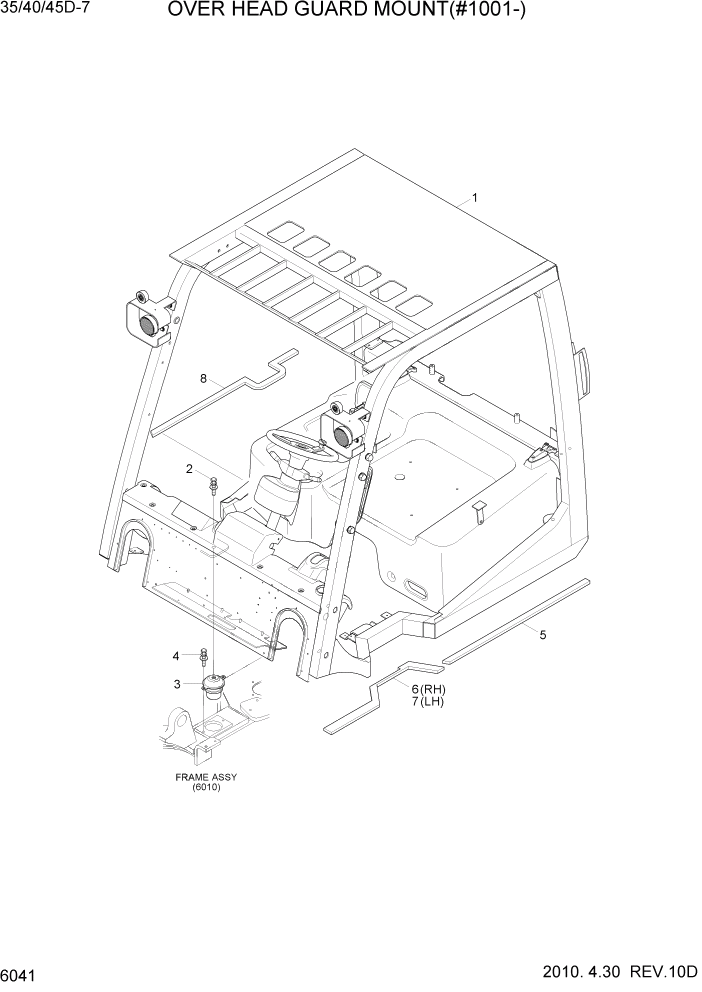

Запчасти Hyundai 35/40/45D-7 PAGE 6041 OVER HEAD GUARD MOUNT(#1001-) СТРУКТУРА

*

@

HEAD GUARD

NOT #1001

1шт.

1

77FV-35000

HEAD GUARD TOTAL SUB

3.5TON #1039

1шт.

1

77FV-35002

HEAD GUARD TOTAL SUB

3.5TON #1040 - #1236

1шт.

1

77FV-35003

HEAD GUARD SUB ASSY

3.5TON #1237

1шт.

1

77FV-35000

HEAD GUARD TOTAL SUB

4.0TON #1006

1шт.

1

77FV-35002

HEAD GUARD TOTAL SUB

4.0TON #1007 - #1047

1шт.

1

77FV-35003

HEAD GUARD SUB ASSY

4.0TON #1048

1шт.

1

77FV-35000

HEAD GUARD TOTAL SUB

4.5TON #1066

1шт.

1

77FV-35002

HEAD GUARD TOTAL SUB

4.5TON #1067 - #1450

1шт.

1

77FV-35003

HEAD GUARD SUB ASSY

4.5TON #1451

1шт.

2

S037-122526

BOLT-W/WASHER

4шт.

3

71HA-30800

MOUNT-HEAD GUARD

4шт.

4

S037-102526

BOLT-W/WASHER

8шт.

5

71FV-30053

SPONGE

1шт.

6

71FV-30063

SPONGE-STEP RH

1шт.

7

71FV-30073

SPONGE-STEP LH

1шт.

8

71FV-31202

SPONGE-RH MID

1шт.
