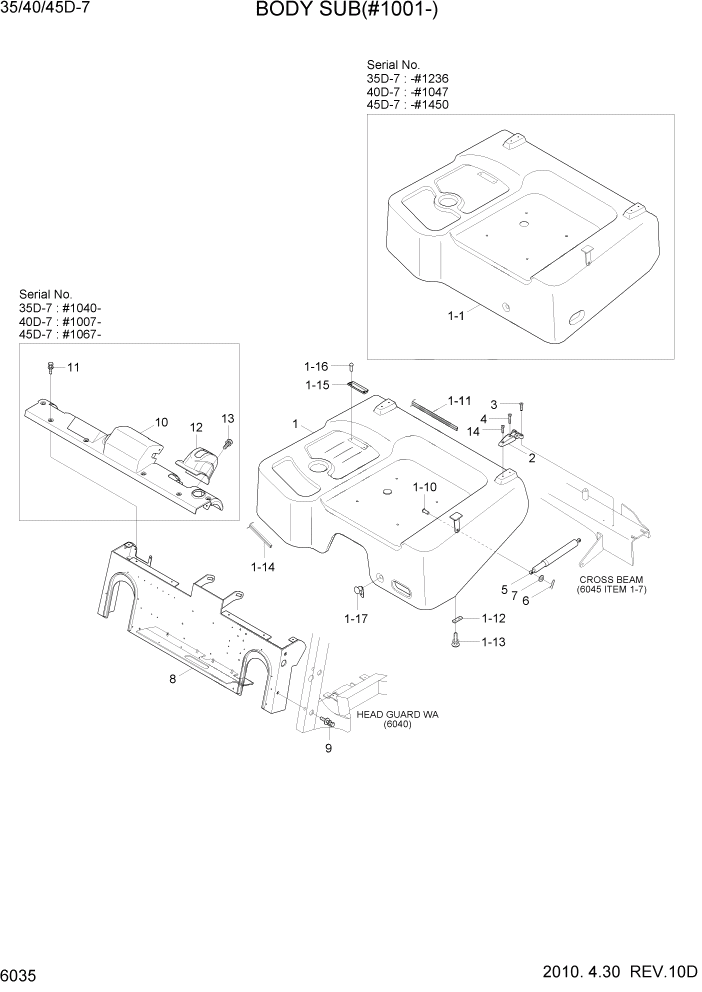

Запчасти Hyundai 35/40/45D-7 PAGE 6035 BODY SUB(#1001-) СТРУКТУРА

*

77FV-11010

BODY SUB ASSY

3.5TON #1001 - #1039

1шт.

*

77FV-11011

BODY SUB ASSY

3.5TON #1040 - #1236

1шт.

*

77FV-11012

BODY

3.5TON #1237

1шт.

*

77FV-11010

BODY SUB ASSY

4.0TON #1001 - #1006

1шт.

*

77FV-11011

BODY SUB ASSY

4.0TON #1007 - #1047

1шт.

*

77FV-11012

BODY

4.0TON #1048

1шт.

*

77FV-11010

BODY SUB ASSY

4.5TON #1001 - #1066

1шт.

*

77FV-11011

BODY SUB ASSY

4.5TON #1067 - #1450

1шт.

*

77FV-11012

BODY

4.5TON #1451

1шт.

1

71FV-10012

BONNET ASSY

#1236

1шт.

1

71FV-10013

BONNET ASSY

35D #1237

1шт.

1

71FV-10012

BONNET ASSY

#1047

1шт.

1

71FV-10013

BONNET ASSY

40D #1048

1шт.

1

71FV-10012

BONNET ASSY

#1450

1шт.

1

71FV-10013

BONNET ASSY

45D #1451

1шт.

1-1

S241-060000

NUT-WELD

4шт.

1-1

S491-080282

PIN-CLEVIS

1шт.

1-11

S771-043000

WEATHER STRIP

1шт.

1-12

F12100190

CUSHION

2шт.

1-13

S132-061656

SCREW-W/WASHER

4шт.

1-14

S773-001000

WEATHER STRIP

1шт.

1-15

71FH-10181

CLIP

1шт.

1-16

9055000309

RIVET

2шт.

1-17

FHC0705200

LATCH ASSY

1шт.

2

ED13020001

HINGE

3.5TON #1178

2шт.

2

71FV-10470

HINGE ASSY

3.5TON #1179

2шт.

2

ED13020001

HINGE

4.0TON #1036

2шт.

2

71FV-10470

HINGE ASSY

4.0TON #1037

2шт.

2

ED13020001

HINGE

4.5TON #1313

2шт.

2

71FV-10470

HINGE ASSY

4.5TON #1314

2шт.

3

S141-060306

SCREW-FLAT HD

3.5TON #1178

6шт.

3

S141-060306

SCREW-FLAT HD

3.5TON #1179

4шт.

3

S141-060306

SCREW-FLAT HD

4.0TON #1036

6шт.

3

S141-060306

SCREW-FLAT HD

4.0TON #1037

4шт.

3

S141-060306

SCREW-FLAT HD

4.5TON #1313

6шт.

3

S141-060306

SCREW-FLAT HD

4.5TON #1314

4шт.

4

S141-060456

SCREW-FLAT HD

3.5TON #1178

2шт.

4

S141-080456

SCREW-FLAT HD

3.5TON #1179

2шт.

4

S141-060456

SCREW-FLAT HD

4.0TON #1036

2шт.

4

S141-080456

SCREW-FLAT HD

4.0TON #1037

2шт.

4

S141-060456

SCREW-FLAT HD

4.5TON #1313

2шт.

4

S141-080456

SCREW-FLAT HD

4.5TON #1314

2шт.

5

71FG-10260

GAS SPRING

1шт.

6

S501-100002

PIN-SELF LOCKING

2шт.

7

S403-08100B

WASHER-PLAIN

2шт.

8

71FV-10103

DASH BOARD WA

1шт.

9

S037-122526

BOLT-W/WASHER

4шт.

10

71FV-10202

COVER-DASH BOARD

3.5TON,SEE 6021 #1040

1шт.

10

71FV-10202

COVER-DASH BOARD

4.0TON,SEE 6021 #1007

1шт.

10

71FV-10202

COVER-DASH BOARD

4.5TON,SEE 6021 #1067

1шт.

11

S132-081526

SCREW-W/WASHER

3.5TON,SEE 6021 #1040

6шт.

11

S132-081526

SCREW-W/WASHER

4.0TON,SEE 6021 #1007

6шт.

11

S132-081526

SCREW-W/WASHER

4.5TON,SEE 6021 #1067

6шт.

12

71FV-10321

COVER-PARKING BRAKE

3.5TON,SEE 6021 #1040

1шт.

12

71FV-10321

COVER-PARKING BRAKE

4.0TON,SEE 6021 #1007

1шт.

12

71FV-10321

COVER-PARKING BRAKE

4.5TON,SEE 6021 #1067

1шт.

13

S132-062026

SCREW-W/WASHER

3.5TON,SEE 6021 #1040

3шт.

13

S132-062026

SCREW-W/WASHER

4.0TON,SEE 6021 #1007

3шт.

13

S132-062026

SCREW-W/WASHER

4.5TON,SEE 6021 #1067

3шт.

14

S141-080306

SCREW-FLAT HD

3.5TON #1179

2шт.

14

S141-080306

SCREW-FLAT HD

4.0TON #1037

2шт.

14

S141-080306

SCREW-FLAT HD

4.5TON #1314

2шт.
