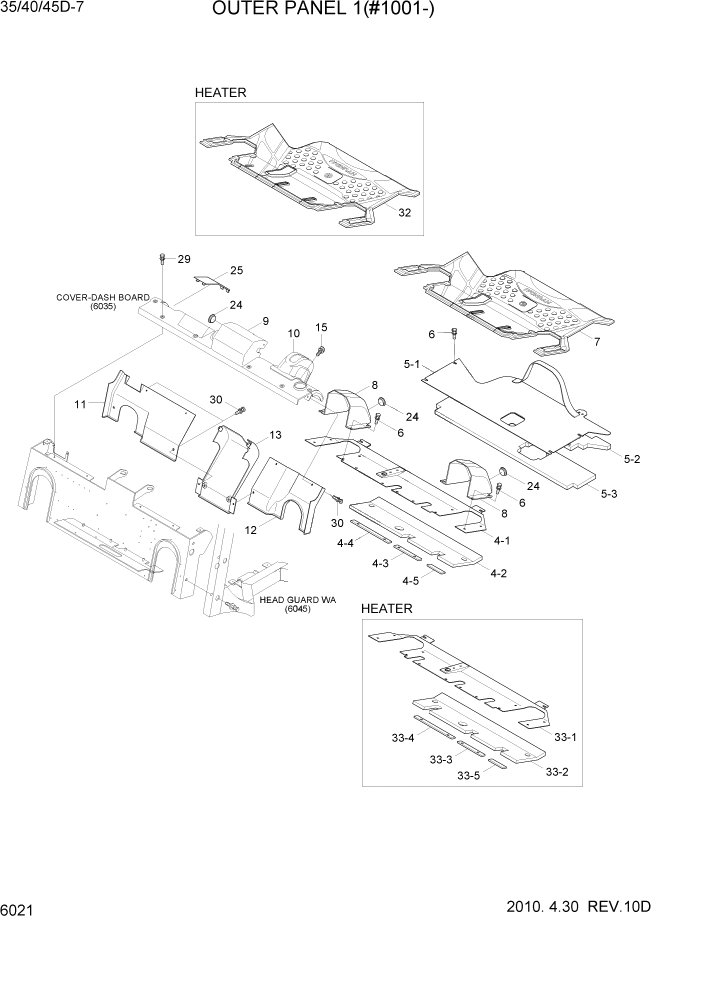

Запчасти Hyundai 35/40/45D-7 PAGE 6021 OUTER PANEL 1(#1001-) СТРУКТУРА

*

@

BODY

NOT #1001

1шт.

4

77FV-10711

FLOOR PLATE-FRONT

1шт.

4-1

77FV-10731

FLOOR PLATE-FRONT

1шт.

4-2

77FV-10721

SPONGE

1шт.

4-3

71FV-10150

RUBBER-PAD

1шт.

4-4

71FV-10160

RUBBER-PAD

1шт.

4-5

77FV-10790

RUBBER-PAD

1шт.

5

71FV-10142

FLOOR PLATE ASSY-REAR

#1236

1шт.

5

71FV-10143

FLOOR PLATE-REAR

35D #1237

1шт.

5

71FV-10142

FLOOR PLATE ASSY-REAR

#1047

1шт.

5

71FV-10143

FLOOR PLATE-REAR

40D #1048

1шт.

5

71FV-10142

FLOOR PLATE ASSY-REAR

#1450

1шт.

5

71FV-10143

FLOOR PLATE-REAR

45D #1451

1шт.

5-1

71FV-10043

FLOOR PLATE-REAR

#1236

1шт.

5-1

71FV-10044

FLOOR PLATE-REAR

35D #1237

1шт.

5-1

71FV-10043

FLOOR PLATE-REAR

#1047

1шт.

5-1

71FV-10044

FLOOR PLATE-REAR

40D #1048

1шт.

5-1

71FV-10043

FLOOR PLATE-REAR

#1450

1шт.

5-1

71FV-10044

FLOOR PLATE-REAR

45D #1451

1шт.

5-2

71FV-10072

SPONGE-F/PLATE

#1236

1шт.

5-2

71FV-10073

SPONGE

35D #1237

1шт.

5-2

71FV-10072

SPONGE-F/PLATE

#1047

1шт.

5-2

71FV-10073

SPONGE

40D #1048

1шт.

5-2

71FV-10072

SPONGE-F/PLATE

#1450

1шт.

5-2

71FV-10073

SPONGE

45D #1451

1шт.

5-3

71FV-10082

SPONGE-F/PLATE

#1236

1шт.

5-3

71FV-10083

SPONGE

35D #1237

1шт.

5-3

71FV-10082

SPONGE-F/PLATE

#1047

1шт.

5-3

71FV-10083

SPONGE

40D #1048

1шт.

5-3

71FV-10082

SPONGE-F/PLATE

#1450

1шт.

5-3

71FV-10083

SPONGE

45D #1451

1шт.

6

S035-082026

BOLT-W/WASHER

3.5TON #1039

12шт.

6

S035-082026

BOLT-W/WASHER

3.5TON #1040

10шт.

6

S035-082026

BOLT-W/WASHER

4.0TON #1006

12шт.

6

S035-082026

BOLT-W/WASHER

4.0TON #1007

10шт.

6

S035-082026

BOLT-W/WASHER

4.5TON #1066

12шт.

6

S035-082026

BOLT-W/WASHER

4.5TON #1067

10шт.

7

77FV-10771

MAT-FLOOR

#1236

1шт.

7

77FV-10772

MAT-FLOOR

35D #1237

1шт.

7

77FV-10771

MAT-FLOOR

#1047

1шт.

7

77FV-10772

MAT-FLOOR

40D #1048

1шт.

7

77FV-10771

MAT-FLOOR

#1450

1шт.

7

77FV-10772

MAT-FLOOR

45D #1451

1шт.

8

71FV-10061

COVER-TILT

2шт.

9

71FV-10202

COVER-DASH BOARD

3.5TON,SEE 6035 #1039

1шт.

9

71FV-10202

COVER-DASH BOARD

4.0TON,SEE 6035 #1006

1шт.

9

71FV-10202

COVER-DASH BOARD

4.5TON,SEE 6035 #1066

1шт.

10

71FV-10321

COVER-PARKING BRAKE

3.5TON,SEE 6035 #1039

1шт.

10

71FV-10321

COVER-PARKING BRAKE

4.0TON,SEE 6035 #1006

1шт.

10

71FV-10321

COVER-PARKING BRAKE

4.5TON,SEE 6035 #1066

1шт.

11

71FV-10212

COVER-FRONT, RH

1шт.

12

71FV-10222

COVER-FRONT, LH

1шт.

13

71FV-10311

COVER-CENTER

1шт.

15

S132-062026

SCREW-W/WASHER

3.5TON #1039

5шт.

15

S132-062026

SCREW-W/WASHER

3.5TON #1040

2шт.

15

S132-062026

SCREW-W/WASHER

4.0TON #1006

5шт.

15

S132-062026

SCREW-W/WASHER

4.0TON #1007

2шт.

15

S132-062026

SCREW-W/WASHER

4.5TON #1066

5шт.

15

S132-062026

SCREW-W/WASHER

4.5TON #1067

2шт.

24

FHC0904100

RUBBER-STAY

3шт.

25

71FV-10340

COVER-FUSE BOX

1шт.

29

S132-081526

SCREW-W/WASHER

3.5TON,SEE 6035 #1039

6шт.

29

S132-081526

SCREW-W/WASHER

4.0TON,SEE 6035 #1006

6шт.

29

S132-081526

SCREW-W/WASHER

4.5TON,SEE 6035 #1066

6шт.

30

S132-082026

SCREW-W/WASHER

10шт.

32

77FV-10430

MAT-FLOOR

35D,HEATER #1236

1шт.

32

77FV-10431

MAT-FLOOR

35D #1237

1шт.

32

77FV-10430

MAT-FLOOR

40D,HEATER #1047

1шт.

32

77FV-10431

MAT-FLOOR

40D #1048

1шт.

32

77FV-10430

MAT-FLOOR

45D,HEATER #1450

1шт.

32

77FV-10431

MAT-FLOOR

45D #1451

1шт.

33

77FV-10440

FLOOR ASSY-FR

HEATER

1шт.

33-1

77FV-10450

FLOOR PLATE-FRONT

1шт.

33-2

77FV-10470

SPONGE

1шт.

33-3

71FV-10150

RUBBER-PAD

1шт.

33-4

71FV-10160

RUBBER-PAD

1шт.

33-5

77FV-10790

RUBBER-PAD

1шт.
