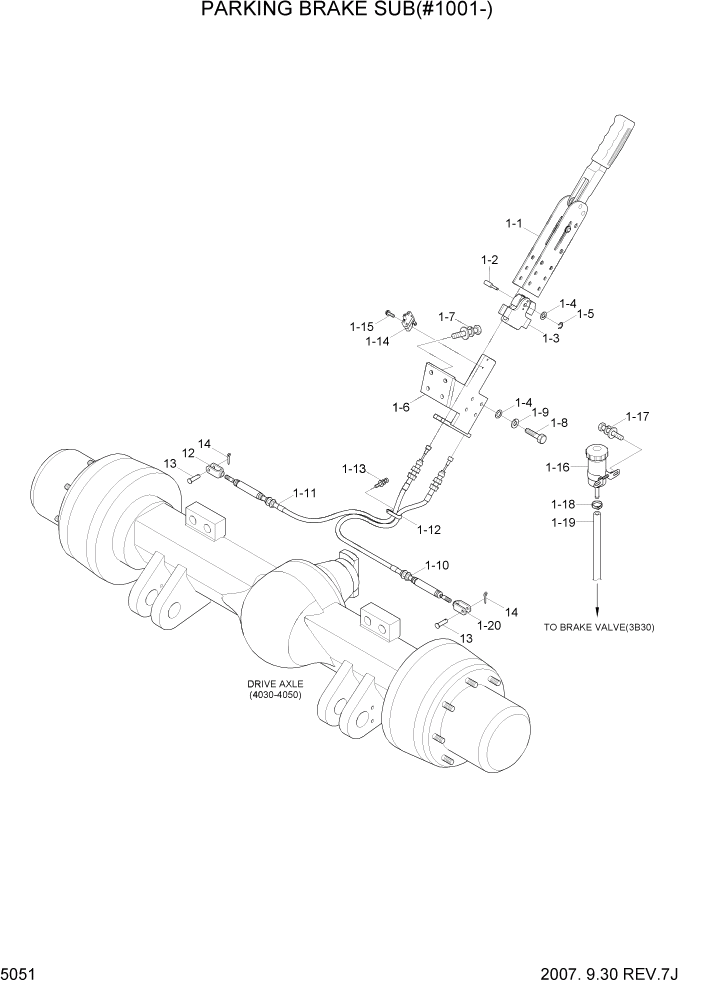

Запчасти Hyundai 35/40/45D-7 PAGE 5051 PARKING BRAKE SUB(#1001-) СИСТЕМА УПРАВЛЕНИЯ

*

@

PARKING BRAKE

NOT #1001

1шт.

1

81FV-70150

PARKING SUB ASSY

3.5TON #1039

1шт.

1

81FV-70151

PARKING SUB ASSY

3.5TON #1040

1шт.

1

81FV-70150

PARKING SUB ASSY

4.0TON #1006

1шт.

1

81FV-70151

PARKING SUB ASSY

4.0TON #1007

1шт.

1

81FV-70150

PARKING SUB ASSY

4.5TON #1066

1шт.

1

81FV-70151

PARKING SUB ASSY

4.5TON #1067

1шт.

1-1

81FQ-70010

PARKING LEVER ASSY

3.5TON #1093

1шт.

1-1

81FQ-70011

PARKING LEVER ASSY

3.5TON #1094

1шт.

1-1

81FQ-70010

PARKING LEVER ASSY

4.0TON #1018

1шт.

1-1

81FQ-70011

PARKING LEVER ASSY

4.0TON #1019

1шт.

1-1

81FQ-70010

PARKING LEVER ASSY

4.5TON #1173

1шт.

1-1

81FQ-70011

PARKING LEVER ASSY

4.5TON #1174

1шт.

1-2

81FQ-70051

PIN

1шт.

1-3

81FQ-70061

CONNECTOR

1шт.

1-4

S403-08200B

WASHER-PLAIN

5шт.

1-5

P560-070006

RETAINING RING-E TYPE

1шт.

1-6

81FQ-70041

BRACKET

1шт.

1-7

S035-082526

BOLT-W/WASHER

4шт.

1-8

S015-080456

BOLT-HEX

4шт.

1-9

S411-080006

WASHER-SPRING

4шт.

1-1

81FV-70111

CABLE-PARKING

1шт.

1-11

81FV-70121

CABLE-PARKING

1шт.

1-12

S543-240002

CLAMP-TUBE

1шт.

1-13

S035-081526

BOLT-W/WASHER

1шт.

1-14

21FV-10250

PARKING SWITCH ASSY

1шт.

1-15

S131-043046

SCREW-W/WASHER

2шт.

1-16

81FQ-40220

RESERVOIR TANK ASSY

1шт.

1-17

S035-061526

BOLT-W/WASHER

2шт.

1-18

S520-015000

CLAMP-HOSE

1шт.

1-19

P760-013095

HOSE-RUBBER LOW

1шт.

1-2

81FQ-70030

YOKE

3.5TON #1040

2шт.

1-2

81FQ-70030

YOKE

4.0TON #1007

2шт.

1-2

81FQ-70030

YOKE

4.5TON #1067

2шт.

13

S491-080302

PIN-CLEVIS

2шт.

14

S461-200202

PIN-SPLIT

2шт.
