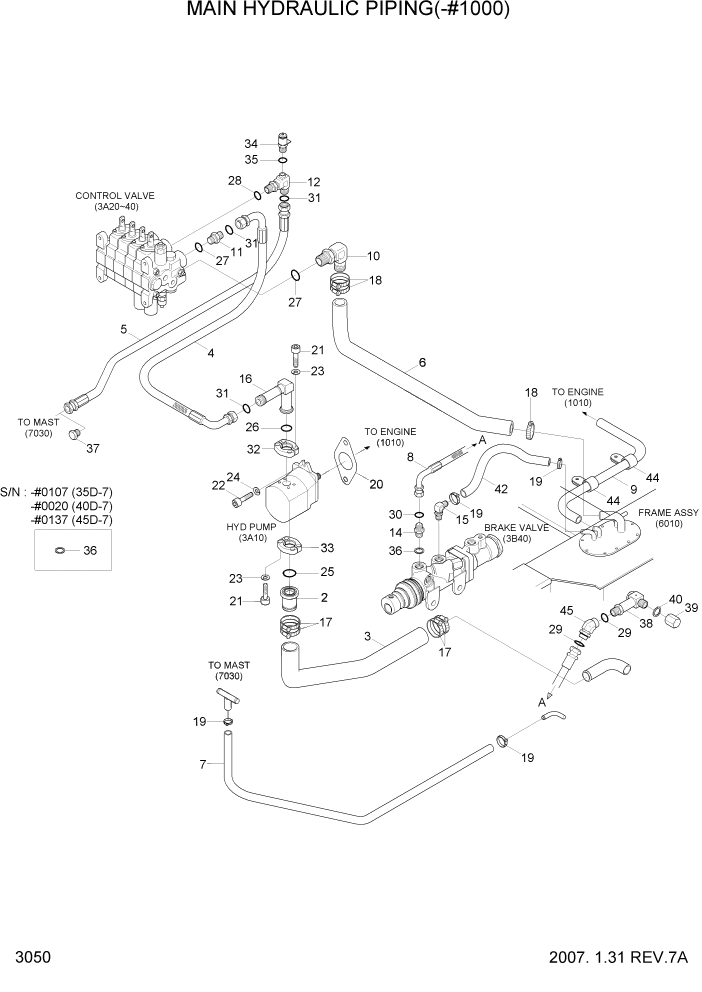

Запчасти Hyundai 35/40/45D-7 PAGE 3050 MAIN HYDRAULIC PIPING(-#1000) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

31FV-20200

CONNECTOR

1шт.

3

31FV-20061

HOSE-SUCTION

1шт.

4

31FV-20220

HOSE ASSY

3.5TON #0043

1шт.

4

31FV-20222

HOSE ASSY 0X90D

3.5TON #0044

1шт.

4

31FV-20220

HOSE ASSY

4.0TON #0005

1шт.

4

31FV-20222

HOSE ASSY 0X90D

4.0TON #0006

1шт.

4

31FV-20220

HOSE ASSY

4.5TON #0041

1шт.

4

31FV-20222

HOSE ASSY 0X90D

4.5TON #0042

1шт.

5

31FV-20191

HOSE ASSY-ORFS 0X90

3.5TON #0007

1шт.

5

31FV-20192

HOSE ASSY-ORFS 0X90

3.5TON #0008 - #0043

1шт.

5

P913-124028

HOSE ASSY-ORFS 0X0

3.5TON #0044

1шт.

5

31FV-20192

HOSE ASSY-ORFS 0X90

4.0TON #0001 - #0005

1шт.

5

P913-124028

HOSE ASSY-ORFS 0X0

4.0TON #0006

1шт.

5

31FV-20191

HOSE ASSY-ORFS 0X90

4.5TON #0002

1шт.

5

31FV-20192

HOSE ASSY-ORFS 0X90

4.5TON #0003 - #0041

1шт.

5

P913-124028

HOSE ASSY-ORFS 0X0

4.5TON #0042

1шт.

6

31FV-20071

HOSE-RETURN

1шт.

7

31FF-81040

HOSE-RUBBER

1шт.

8

31FV-20161

HOSE ASSY 0X90

3.5TON #0007

1шт.

8

31FV-20162

HOSE ASSY 0X90

3.5TON #0008

1шт.

8

31FV-20162

HOSE ASSY 0X90

4.0TON #0001

1шт.

8

31FV-20161

HOSE ASSY 0X90

4.5TON #0002

1шт.

8

31FV-20162

HOSE ASSY 0X90

4.5TON #0003

1шт.

9

31FF-81510

HOSE-RUBBER

3.5TON #0007

2шт.

9

31FF-81510

HOSE-RUBBER

3.5TON #0008 - #0107

1шт.

9

31FF-81580

HOSE-RUBBER

3.5TON #0108

1шт.

9

31FF-81510

HOSE-RUBBER

4.0TON #0005

2шт.

9

31FF-81510

HOSE-RUBBER

4.0TON #0006 - #0020

1шт.

9

31FF-81580

HOSE-RUBBER

4.0TON #0021

1шт.

9

31FF-81510

HOSE-RUBBER

4.5TON #0002

2шт.

9

31FF-81510

HOSE-RUBBER

4.5TON #0003 - #0137

1шт.

9

31FF-81580

HOSE-RUBBER

4.5TON #0138

1шт.

10

31FV-20030

ELBOW-90

1шт.

11

31FV-20051

TEE-W/TEST PORT

3.5TON #0043

1шт.

11

X500-310004

CONNECTOR-ORFS

3.5TON #0044

1шт.

11

31FV-20051

TEE-W/TEST PORT

4.0TON #0005

1шт.

11

X500-310004

CONNECTOR-ORFS

4.0TON #0006

1шт.

11

31FV-20051

TEE-W/TEST PORT

4.5TON #0041

1шт.

11

X500-310004

CONNECTOR-ORFS

4.5TON #0042

1шт.

12

31FV-20040

CONNECTOR

3.5TON #0043

1шт.

12

31FV-20230

ELBOW-90,W/TEST PT

3.5TON #0044

1шт.

12

31FV-20040

CONNECTOR

4.0TON #0005

1шт.

12

31FV-20230

ELBOW-90,W/TEST PT

4.0TON #0006

1шт.

12

31FV-20040

CONNECTOR

4.5TON #0041

1шт.

12

31FV-20230

ELBOW-90,W/TEST PT

4.5TON #0042

1шт.

13

31FF-01330

PIPE-SUCTION

3.5TON #0001 - #0107

1шт.

13

31FF-01330

PIPE-SUCTION

4.0TON #0001 - #0020

1шт.

13

31FF-01330

PIPE-SUCTION

4.5TON #0001 - #0137

1шт.

14

X500-220007

CONNECTOR-ORFS

3.5TON #0007

1шт.

14

31FQ-10030

ELBOW-90

3.5TON #0008

1шт.

14

31FQ-10030

ELBOW-90

4.0TON #0001

1шт.

14

X500-220007

CONNECTOR-ORFS

4.5TON #0002

1шт.

14

31FQ-10030

ELBOW-90

4.5TON #0003

1шт.

15

31FF-01360

ELBOW-90

1шт.

16

31FV-20210

ELBOW-WA

1шт.

17

S572-570006

CLAMP-HOSE WIRE TYPE

4шт.

18

S572-460006

CLAMP-HOSE WIRE TYPE

4шт.

19

S520-027000

CLAMP-HOSE

6шт.

20

905851300

GASKET

1шт.

21

S109-100302

BOLT-SOCKET

8шт.

22

S018-140302

BOLT-HEX

2шт.

23

S411-100002

WASHER-SPRING

8шт.

24

S411-140002

WASHER-SPRING

2шт.

25

Y171-027004

O-RING

1шт.

26

Y171-024004

O-RING

1шт.

27

S611-023001

O-RING

2шт.

28

S611-019001

O-RING

1шт.

29

S631-018004

O-RING

3.5TON #0065

1шт.

29

S631-018004

O-RING

4.0TON #0014

1шт.

29

S631-018004

O-RING

4.5TON #0075

1шт.

30

S621-014001

O-RING,ORFS

2шт.

31

S621-018001

O-RING,ORFS

5шт.

32

P173-160104

FLANGE-SPLIT

2шт.

33

P173-200106

FLANGE-SPLIT

2шт.

34

31EK-11130

COUPLING-SCREW

1шт.

35

S631-011004

O-RING

1шт.

36

P392-180000

WASHER-COPPER

3.5TON #0107

1шт.

36

P392-180000

WASHER-COPPER

4.0TON #0020

1шт.

36

P392-180000

WASHER-COPPER

4.5TON #0137

1шт.

37

31FV-20150

CONNECTOR

3.5TON

1шт.

37

31FV-20150

CONNECTOR

4.0TON #0065

1шт.

37

31FV-20150

CONNECTOR

4.5TON #0014

1шт.

38

31FV-20140

FITTING-BANJO

#0075

1шт.

39

31FF-01460

CAP

1шт.

40

81FC-60600

WASHER-COPPER

1шт.

41

X700-100104

PLUG-ORFS

1шт.

42

31FF-81590

HOSE-RUBBER

3.5TON #0008

1шт.

42

31FF-81590

HOSE-RUBBER

4.0TON #0001

1шт.

42

31FF-81590

HOSE-RUBBER

4.5TON #0003

1шт.

43

31FV-30040

FILTER-SUCTION

3.5TON #0066

1шт.

43

31FV-30040

FILTER-SUCTION

4.0TON #0015

1шт.

43

31FV-30040

FILTER-SUCTION

4.5TON #0076

1шт.

44

31L7-10200

CLAMP

3.5TON #0108

2шт.

44

31L7-10200

CLAMP

4.0TON #0021

2шт.

44

31L7-10200

CLAMP

4.5TON #0138

2шт.

45

X860-525200

ELBOW-45,SWIVEL,ORFS

3.5TON #0108

1шт.

45

X860-525200

ELBOW-45,SWIVEL,ORFS

4.0TON #0021

1шт.

45

X860-525200

ELBOW-45,SWIVEL,ORFS

4.5TON #0138

1шт.
