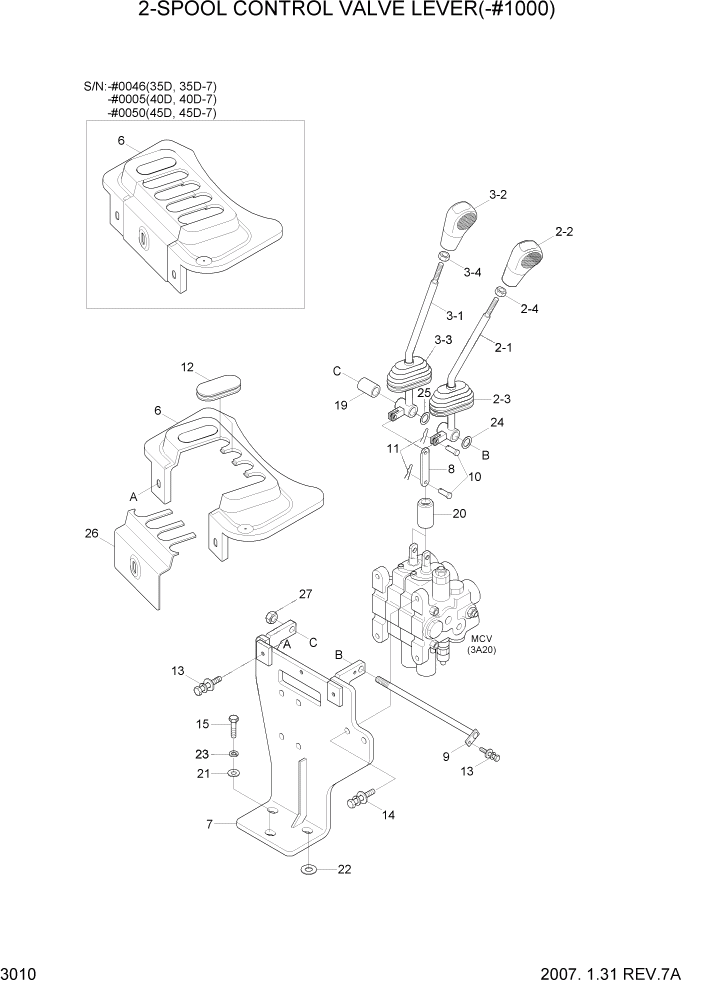

Запчасти Hyundai 35/40/45D-7 PAGE 3010 2-SPOOL CONTROL VALVE LEVER(-#1000) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

31FV-40112

MCV LEVER ASSY-LIFT

3.5TON #0112

1шт.

2

31FV-40113

MCV LEVER ASSY-LIFT

3.5TON #0113

1шт.

2

31FV-40112

MCV LEVER ASSY-LIFT

4.0TON #0021

1шт.

2

31FV-40113

MCV LEVER ASSY-LIFT

4.0TON #0022

1шт.

2

31FV-40112

MCV LEVER ASSY-LIFT

4.5TON #0144

1шт.

2

31FV-40113

MCV LEVER ASSY-LIFT

4.5TON #0145

1шт.

2-1

31FV-40013

MCV LEVER WA-LIFT

3.5TON #0112

1шт.

2-1

31FV-40014

CONTOL LEVER WA-LIFT

3.5TON #0113

1шт.

2-1

31FV-40013

MCV LEVER WA-LIFT

4.0TON #0021

1шт.

2-1

31FV-40014

CONTOL LEVER WA-LIFT

4.0TON #0022

1шт.

2-1

31FV-40013

MCV LEVER WA-LIFT

4.5TON #0144

1шт.

2-1

31FV-40014

CONTOL LEVER WA-LIFT

4.5TON #0145

1шт.

2-2

31FG-40500

KNOB-LIFT

1шт.

2-3

31FS-40050

BELLOWS

1шт.

2-4

S207-101002

NUT-HEX

1шт.

3

31FV-40122

MCV LEVER ASSY-TILT

3.5TON #0112

1шт.

3

31FV-40123

MCV LEVER ASSY-TILT

3.5TON #0113

1шт.

3

31FV-40122

MCV LEVER ASSY-TILT

4.0TON #0021

1шт.

3

31FV-40123

MCV LEVER ASSY-TILT

4.0TON #0022

1шт.

3

31FV-40122

MCV LEVER ASSY-TILT

4.5TON #0144

1шт.

3

31FV-40123

MCV LEVER ASSY-TILT

4.5TON #0145

1шт.

3-1

31FV-40023

MCV LEVER WA-TILT

3.5TON #0112

1шт.

3-1

31FV-40024

CONTROL LEVER WA-TILT

3.5TON #0113

1шт.

3-1

31FV-40023

MCV LEVER WA-TILT

4.0TON #0021

1шт.

3-1

31FV-40024

CONTROL LEVER WA-TILT

4.0TON #0022

1шт.

3-1

31FV-40023

MCV LEVER WA-TILT

4.5TON #0144

1шт.

3-1

31FV-40024

CONTROL LEVER WA-TILT

4.5TON #0145

1шт.

3-2

31FG-40510

KNOB-TILT

1шт.

3-3

31FS-40050

BELLOWS

1шт.

3-4

S207-101002

NUT-HEX

1шт.

6

31FV-40083

COVER-MCV

3.5TON #0046

1шт.

6

31FV-40084

COVER-MCV

3.5TON #0047

1шт.

6

31FV-40083

COVER-MCV

4.0TON #0005

1шт.

6

31FV-40084

COVER-MCV

4.0TON #0006

1шт.

6

31FV-40083

COVER-MCV

4.5TON #0050

1шт.

6

31FV-40084

COVER-MCV

4.5TON #0051

1шт.

7

31FV-40052

BRACKET-MCV

3.5TON #0035

1шт.

7

31FV-40053

BRACKET-MCV

3.5TON #0036

1шт.

7

31FV-40052

BRACKET-MCV

4.0TON #0001

1шт.

7

31FV-40053

BRACKET-MCV

4.0TON #0002

1шт.

7

31FV-40052

BRACKET-MCV

4.5TON #0023

1шт.

7

31FV-40053

BRACKET-MCV

4.5TON #0024

1шт.

8

31HA-40060

LINK(42MM)

2шт.

9

31FV-40260

SHAFT-MCV LEVER

3.5TON #0112

1шт.

9

37FV-40080

SHAFT-MCV LEVER

3.5TON #0113

1шт.

9

31FV-40260

SHAFT-MCV LEVER

4.0TON #0021

1шт.

9

37FV-40080

SHAFT-MCV LEVER

4.0TON #0022

1шт.

9

31FV-40260

SHAFT-MCV LEVER

4.5TON #0144

1шт.

9

37FV-40080

SHAFT-MCV LEVER

4.5TON #0145

1шт.

10

FAC1000640-01

PIN-LEVER

4шт.

11

S501-050002

PIN-SELF LOCKING

4шт.

12

31FS-40060

CAP-C/LEVER

2шт.

13

S037-102022

BOLT-W/WASHER

4шт.

14

S037-102522

BOLT-W/WASHER

3шт.

15

S017-120302

BOLT-HEX

3шт.

19

31FV-40230

BOSS-SPACER

3шт.

20

FAC1000650

BOOT

3.5TON #0112

2шт.

20

31HA-40150

BOOT-SPOOL

3.5TON #0113

2шт.

20

FAC1000650

BOOT

4.0TON #0021

2шт.

20

31HA-40150

BOOT-SPOOL

4.0TON #0022

2шт.

20

FAC1000650

BOOT

4.5TON #0144

2шт.

20

31HA-40150

BOOT-SPOOL

4.5TON #0145

2шт.

21

S441-120002

WASHER-HARDENED

3шт.

22

41M5-51920

SHIM(1.0T)

2шт.

23

S411-120002

WASHER-SPRING

3шт.

24

31FV-40270

SHIM(0.5T)

3.5TON #0036 - #0112

1шт.

24

31FV-40270

SHIM(0.5T)

4.0TON #0002 - #0021

1шт.

24

31FV-40270

SHIM(0.5T)

4.5TON #0024 - #0114

1шт.

25

31FV-40280

SHIM(1.0T)

3.5TON #0036 - #0112

1шт.

25

31FV-40280

SHIM(1.0T)

4.0TON #0002 - #0021

1шт.

25

31FV-40280

SHIM(1.0T)

4.5TON #0024 - #0144

1шт.

26

31FV-40250

COVER #2-MCV

3.5TON #0047

1шт.

26

31FV-40250

COVER #2-MCV

4.0TON #0006

1шт.

26

31FV-40250

COVER #2-MCV

4.5TON #0051

1шт.

27

S275-120006

NUT-SELF LOCKING

3.5TON #0113

1шт.

27

S275-120006

NUT-SELF LOCKING

4.0TON #0022

1шт.

27

S275-120006

NUT-SELF LOCKING

4.5TON #0145

1шт.
