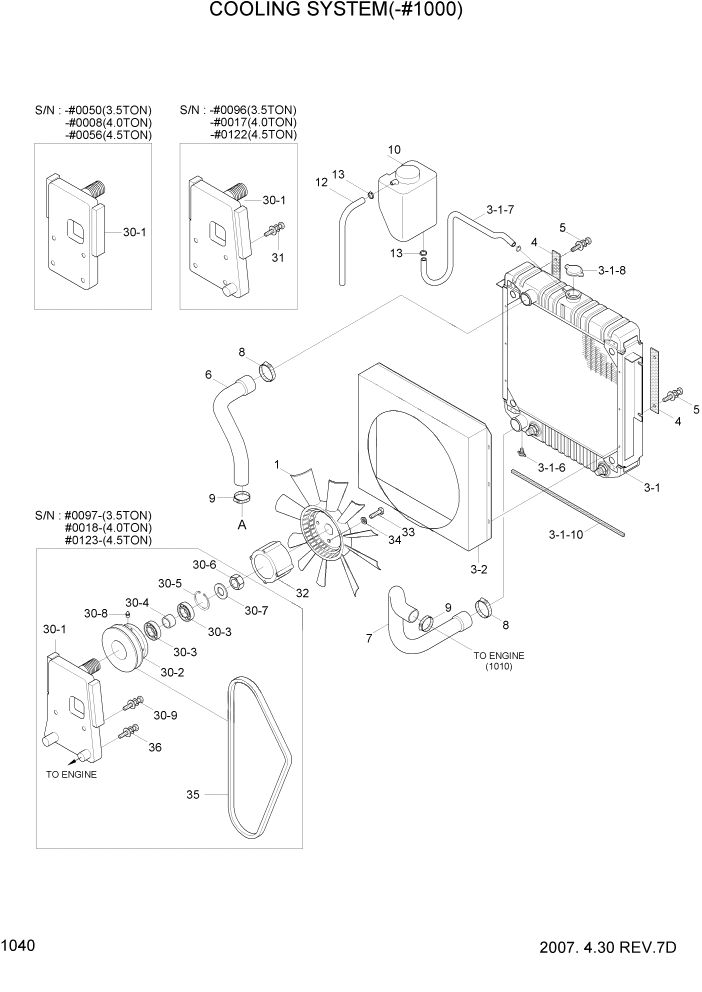

Запчасти Hyundai 35/40/45D-7 PAGE 1040 COOLING SYSTEM(-#1000) СИСТЕМА ДВИГАТЕЛЯ

1

11FE-30010

FAN

1шт.

3

11FV-30180

RADIATOR SUB ASSY

1шт.

3-1

11FV-30021

RADIATOR ASSY

1шт.

3-1-6

45700090

DRAIN COCK

1шт.

3-1-7

96300700

HOSE-OVER FLOW

1шт.

3-1-8

22101810

CAP-RADIATOR

1шт.

3-1-10

45502100

PACKING

1шт.

3-2

11FV-30410

SHROUD

1шт.

4

F14230090

RUBBER-CUSHION

2шт.

5

S037-103022

BOLT-W/WASHER

4шт.

6

11FV-30231

HOSE-UPPER

1шт.

7

11FV-30240

HOSE-LOWER

1шт.

8

S572-630006

CLAMP-HOSE,WIRE TYPE

2шт.

9

S572-590006

CLAMP-HOSE,WIRE TYPE

2шт.

10

11M6-52330

TANK-RESERVOIR

1шт.

12

12FA-50200

HOSE

1шт.

13

S520-015000

CLAMP-HOSE

2шт.

30

11FV-30301

FAN DRIVE ASSY

3.5TON #0050

1шт.

30

11FV-30302

FAN DRIVE ASSY

3.5TON #0051 - #0096

1шт.

30

11FV-30303

FAN DRIVE ASSY

3.5TON #0001 - #0096

1шт.

30

11FV-30600

FAN DRIVE ASSY

3.5TON #0097 - #1000

1шт.

30

11FV-30301

FAN DRIVE ASSY

4.0TON #0008

1шт.

30

11FV-30302

FAN DRIVE ASSY

4.0TON #0009 - #0017

1шт.

30

11FV-30303

FAN DRIVE ASSY

4.0TON #0001 - #0017

1шт.

30

11FV-30600

FAN DRIVE ASSY

4.0TON #0018 - #1000

1шт.

30

11FV-30301

FAN DRIVE ASSY

4.5TON #0056

1шт.

30

11FV-30302

FAN DRIVE ASSY

4.5TON #0057 - #0122

1шт.

30

11FV-30303

FAN DRIVE ASSY

4.5TON #0001 - #0122

1шт.

30

11FV-30600

FAN DRIVE ASSY

4.5TON #0123 - #1000

1шт.

30-1

11FV-30310

FAN DRV SHAFT ASSY

3.5TON #0050

1шт.

30-1

11FV-30311

FAN DRV SHAFT ASSY

3.5TON #0051 - #0096

1шт.

30-1

11FV-30611

FAN DRV SHAFT ASSY

3.5TON #0097 - #1000

1шт.

30-1

11FV-30310

FAN DRV SHAFT ASSY

4.0TON #0008

1шт.

30-1

11FV-30311

FAN DRV SHAFT ASSY

4.0TON #0009 - #0017

1шт.

30-1

11FV-30611

FAN DRV SHAFT ASSY

4.0TON #0018 - #1000

1шт.

30-1

11FV-30310

FAN DRV SHAFT ASSY

4.5TON #0056

1шт.

30-1

11FV-30311

FAN DRV SHAFT ASSY

4.5TON #0057 - #0122

1шт.

30-1

11FV-30611

FAN DRV SHAFT ASSY

4.5TON #0123 - #1000

1шт.

30-2

11FV-30321

PULLEY-FAN

1шт.

30-3

11FV-30150

BEARING-BALL

2шт.

30-4

11FV-30330

SPACER

1шт.

30-5

S602-062004

RING-RETAINING

1шт.

30-6

S206-241002

NUT-HEX

1шт.

30-7

S403-241002

WASHER-PLAIN

1шт.

30-8

S651-060008

NIPPLE-GREASE

1шт.

30-9

S037-103526

BOLT-W/WASHER

3.5TON #0097

2шт.

30-9

S037-103526

BOLT-W/WASHER

4.0TON #0018

2шт.

30-9

S037-103526

BOLT-W/WASHER

4.5TON #0123

2шт.

31

S035-103022

BOLT-W/WASHER

#0096

2шт.

31

S035-103022

BOLT-W/WASHER

#0017

2шт.

31

S035-103022

BOLT-W/WASHER

#0122

2шт.

32

11FQ-30070

SPACER

1шт.

33

S015-081206

BOLT-HEX

4шт.

34

S411-080002

WASHER-SPRING

4шт.

35

11FV-30360

BELT-FAN

#0096

1шт.

35

11FV-30360

BELT-FAN

#0017

1шт.

35

11FV-30360

BELT-FAN

#0122

1шт.

36

S037-105022

BOLT-W/WASHER

3.5TON #0051 - #0096

1шт.

36

S037-105022

BOLT-W/WASHER

4.0TON #0009 - #0017

1шт.

36

S037-105022

BOLT-W/WASHER

4.5TON #0057 - #0122

1шт.
