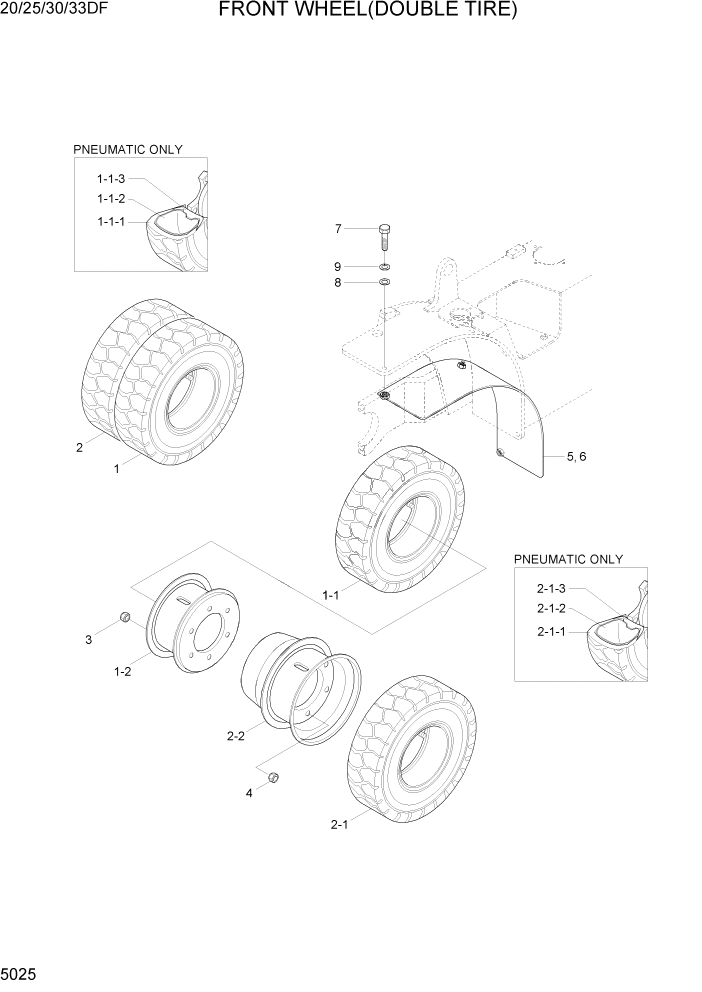

Запчасти Hyundai 20/25/30/33DF PAGE 5025 FRONT WHEEL(DOUBLE TIRE) СИСТЕМА УПРАВЛЕНИЯ

1

FAC0400362

FRONT WHEEL(INNER)

PNEUMATIC

2шт.

1

F42400021

FRONT WHEEL(INNER)

SOLID

2шт.

1

81FG-22070

FRONT WHEEL(INNER)

NON-MARKING

2шт.

1-1

81FA-22300

TIRE ASSY

PNEUMATIC

1шт.

1-1-1

81FA-22310

TIRE

PNEUMATIC

1шт.

1-1-2

81FA-22320

TUBE

PNEUMATIC

1шт.

1-1-3

81FA-22330

FLAP

PNEUMATIC

1шт.

1-1

F42400040

TIRE-SOLID

SOLID

1шт.

1-1

81FG-22090

TIRE-NON MARKING

NON-MARKING

1шт.

1-2

F12400030

INNER WHEEL RIM

1шт.

2

FAC0400371

FRONT WHEEL(OUTER)

PNEUMATIC

2шт.

2

F42400031

FRONT WHEEL(OUTER)

SOLID

2шт.

2

81FG-22080

FRONT WHEEL(OUTER)

NON-MARKING

2шт.

2-1

81FA-22300

TIRE ASSY

PNEUMATIC

1шт.

2-1-1

81FA-22310

TIRE

PNEUMATIC

1шт.

2-1-2

81FA-22320

TUBE

PNEUMATIC

1шт.

2-1-3

81FA-22330

FLAP

PNEUMATIC

1шт.

2-1

F42400040

TIRE-SOLID

SOLID

1шт.

2-1

81FG-22090

TIRE-NON MARKING

NON-MARKING

1шт.

2-2

F12400020

OUTER WHEEL RIM

1шт.

3

83FA-10200

NUT-INNER

12шт.

4

83FA-10210

NUT-OUTER

12шт.

5

81HA-20010

COVER-FENDER,LH

20/25DF

1шт.

5

81HA-21030

COVER-FENDER,LH

30/33DF

1шт.

6

81HA-20020

COVER-FENDER,RH

20/25DF

1шт.

6

81HA-21040

COVER-FENDER,RH

30/33DF

1шт.

7

S017-100352

BOLT-HEX

6шт.

8

S403-101002

WASHER-PLAIN

6шт.

9

S411-100002

WASHER-SPRING

6шт.
