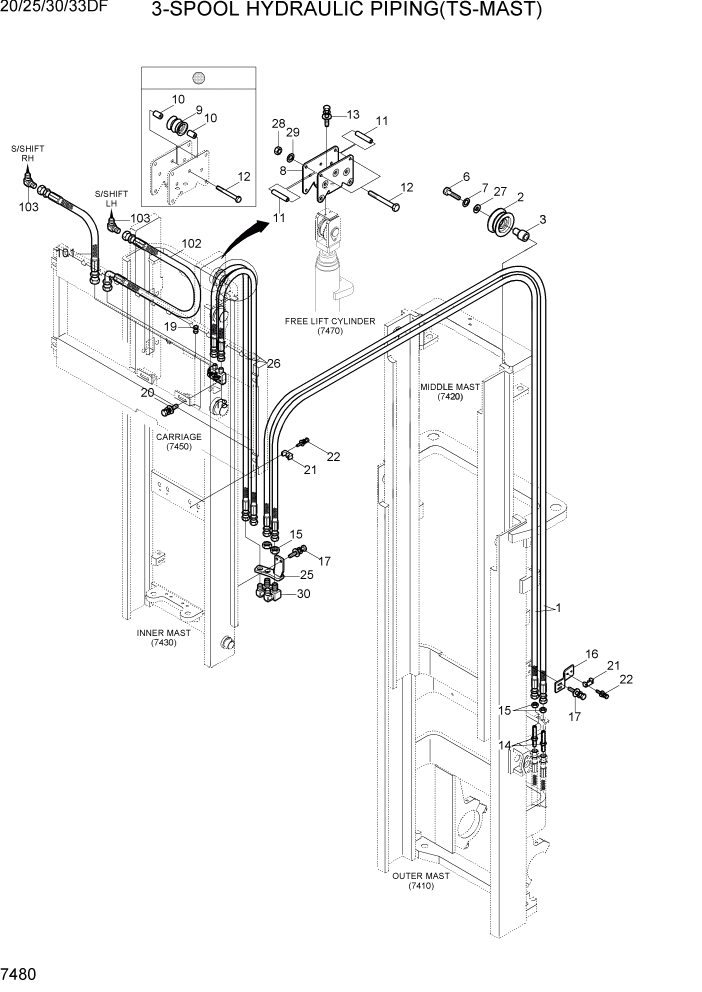

Запчасти Hyundai 20/25/30/33DF PAGE 7480 3-SPOOL HYDRAULIC PIPING(TS-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064043

HOSE ASSY-ORFS 0X0

TS370,20-30DF

2шт.

1

P910-064046

HOSE ASSY-ORFS 0X0

TS370,33DF

2шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TS400,20-30DF

2шт.

1

P910-064050

HOSE ASSY-ORFS 0X0

TS400,33DF

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TS430,20-30DF

2шт.

1

P910-064054

HOSE ASSY-ORFS 0X0

TS430,33DF

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TS450,20-30DF

2шт.

1

P910-064058

HOSE ASSY-ORFS 0X0

TS450,33DF

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TS470,20-30DF

2шт.

1

P910-064060

HOSE ASSY-ORFS 0X0

TS470,33DF

2шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TS500,20-30DF

2шт.

1

P910-064064

HOSE ASSY-ORFS 0X0

TS500,33DF

2шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TS550,20-30DF

2шт.

1

P910-064072

HOSE ASSY-ORFS 0X0

TS550,33DF

2шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TS600,20-30DF

2шт.

1

P910-064080

HOSE ASSY-ORFS 0X0

TS600,33DF

2шт.

1

P910-064085

HOSE ASSY-ORFS 0X0

TS650,20-30DF

2шт.

1

P910-064088

HOSE ASSY-ORFS 0X0

TS650,33DF

2шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TS700,20-30DF

2шт.

1

P910-064096

HOSE ASSY-ORFS 0X0

TS700,33DF

2шт.

2

33HN-80100

PULLEY ASSY-HOSE

1шт.

3

31FV-90130

PIN-HOSE PULLEY

1шт.

6

S017-120606

BOLT-HEX

1шт.

7

S411-120006

WASHER-SPRING

1шт.

8

3AHN-90201

PLATE

1шт.

9

34FY-90110

ROLLER-HOSE

5шт.

10

S731-007010

BUSHING-DU

10шт.

11

34FY-90130

SPACER

2шт.

12

S035-067046

BOLT-W/WASHER

7шт.

13

S035-081526

BOLT-W/WASHER

2шт.

14

31FG-80210

CONNECTOR

2шт.

15

31FG-80430

NUT-HEX

4шт.

16

33HN-90700

BRACKET

1шт.

17

S035-082526

BOLT-W/WASHER

4шт.

18

31HA-10250

ELBOW WA

2шт.

19

X710-100103

CAP-HYD,ORFS

2шт.

20

S037-102526

BOLT-W/WASHER

2шт.

21

34FG-90260

CLAMP-HOSE

2шт.

22

S035-063026

BOLT-W/WASHER

4шт.

25

3AHN-91000

PLATE ASSY

1шт.

26

P910-064041

HOSE ASSY-ORFS 0X0

TS370

2шт.

26

P910-064043

HOSE ASSY-ORFS 0X0

TS400

2шт.

26

P910-064045

HOSE ASSY-ORFS 0X0

TS430

2шт.

26

P910-064046

HOSE ASSY-ORFS 0X0

TS450

2шт.

26

P910-064048

HOSE ASSY-ORFS 0X0

TS470

2шт.

26

P910-064050

HOSE ASSY-ORFS 0X0

TS500

2шт.

26

P910-064053

HOSE ASSY-ORFS 0X0

TS550

2шт.

26

P910-064057

HOSE ASSY-ORFS 0X0

TS600

2шт.

26

P910-064061

HOSE ASSY-ORFS 0X0

TS650

2шт.

26

P910-064065

HOSE ASSY-ORFS 0X0

TS700

2шт.

27

S441-12000B

WASHER-HARDENED

1шт.

28

S275-06000B

NUT-SELF LOCKING

7шт.

29

S403-06200B

WASHER-PLAIN

7шт.

30

31FS-90500

ELBOW WA

2шт.

101

P913-064006

HOSE ASSY-ORFS 0X0

20/25DF, S/S

1шт.

101

P913-064007

HOSE ASSY-ORFS 0X0

30/33DF, S/S

1шт.

102

P933-064007

HOSE ASSY-ORFS 0X90

20/25DF, S/S

1шт.

102

P933-064008

HOSE ASSY-ORFS 0X90

30/33DF, S/S

1шт.

103

31FG-80400

ELBOW-90

SIDE SHIFT

2шт.
