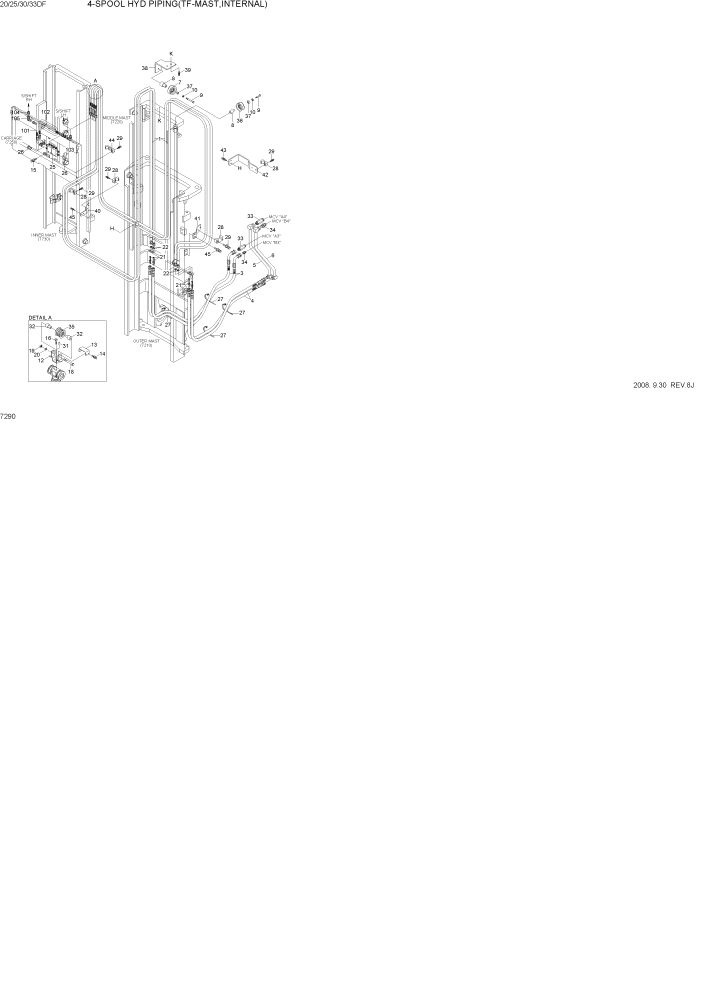

Запчасти Hyundai 20/25/30/33DF PAGE 7290 4-SPOOL HYD PIPING(TF-MAST,INTERNAL) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064083

HOSE ASSY-ORFS 0X0

TF370,20-30DF

4шт.

1

P910-064085

HOSE ASSY-ORFS 0X0

TF370,33DF

4шт.

1

P910-064089

HOSE ASSY-ORFS 0X0

TF400,20-30DF

4шт.

1

P910-064091

HOSE ASSY-ORFD 0X0

TF400,33DF

4шт.

1

P910-064095

HOSE ASSY-ORFS 0X0

TF430,20-30DF

4шт.

1

P910-064097

HOSE ASSY-ORFS 0X0

TF430,33DF

4шт.

1

P910-064100

HOSE ASSY-ORFS 0X0

TF450,20-30DF

4шт.

1

P910-064102

HOSE ASSY-ORFS 0X0

TF450,33DF

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF470,20-30DF

4шт.

1

P910-064106

HOSE ASSY-ORFS 0X0

TF470,33DF

4шт.

1

P910-064110

HOSE ASSY-ORFS 0X0

TF500,20-30DF

4шт.

1

P910-064112

HOSE ASSY-ORFS 0X0

TF500,33DF

4шт.

1

P910-064120

HOSE ASSY-ORFS 0X0

TF550,20-30DF

4шт.

1

P910-064122

HOSE ASSY-ORFS 0X0

TF550,33DF

4шт.

1

P910-064132

HOSE ASSY-ORFS 0X0

TF600,20-30DF

4шт.

1

P910-064134

HOSE ASSY-ORFS 0X0

TF600,33DF

4шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X0

2шт.

5

33HA-90500

PIPE WA

1шт.

6

33HA-90600

PIPE WA

1шт.

7

34FG-90201

PULLEY-HOSE

1шт.

8

31FV-90130

PIN-HOSE PULLEY

2шт.

9

S017-120756

BOLT-HEX

2шт.

10

S411-120006

WASHER-SPRING

3шт.

12

33HA-90801

BRACKET WA-PULLEY

1шт.

13

34FG-90270

COVER

1шт.

14

S035-081526

BOLT-W/WASHER

4шт.

15

S037-102526

BOLT-W/WASHER

4шт.

16

S017-120506

BOLT-HEX

1шт.

18

S017-101406

BOLT-HEX

1шт.

19

S275-100006

NUT-SELF LOCKING

1шт.

20

S403-102006

WASHER-PLAIN

1шт.

21

31FG-80210

CONNECTOR

4шт.

22

31FG-80430

NUT-HEX

4шт.

25

34FK-90401

BLOCK WA

2шт.

26

X710-100103

CAP-HYD,ORFS

4шт.

27

S552-102370

CLAMP-BAND

6шт.

28

34FG-90260

CLAMP-HOSE

4шт.

29

S035-063526

BOLT-W/WASHER

10шт.

31

S471-800162

PIN-SPRING

1шт.

32

34FG-90351

PIN-HOSE PULLEY

2шт.

33

31FQ-10070

CONNECTOR

2шт.

34

31N5-30050

CONNECTOR

2шт.

35

33HD-90370

PULLEY-HOSE

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

1шт.

37

33HN-90600

SPACER

2шт.

38

33HN-90311

BRACKET-PULLEY

1шт.

39

S035-083536

BOLT-W/WASHER

2шт.

40

33HN-90901

BRACKET

1шт.

41

33HN-90700

BRACKET

1шт.

42

33HN-90811

BRACKET

1шт.

43

S035-083036

BOLT-W/WASHER

2шт.

44

34FG-90460

CLAMP-HOSE

1шт.

45

S035-082516

BOLT-W/WASHER

4шт.

46

31FY-80910

HOSE CLAMP

NOT SHOWN

1шт.

47

S520-090000

CLAMP-HOSE

NOT SHOWN

1шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

20/25DF

1шт.

101

P933-064006

HOSE ASSY-ORFS 0X90

30/33DF

1шт.

102

P933-064011

HOSE ASSY-ORFS 0X90

1шт.

103

31FG-80400

ELBOW-90

1шт.

104

X500-310002

CONNECTOR-ORFS

1шт.

105

X850-525200

ELBOW-90,SWIVEL,ORFS

1шт.
