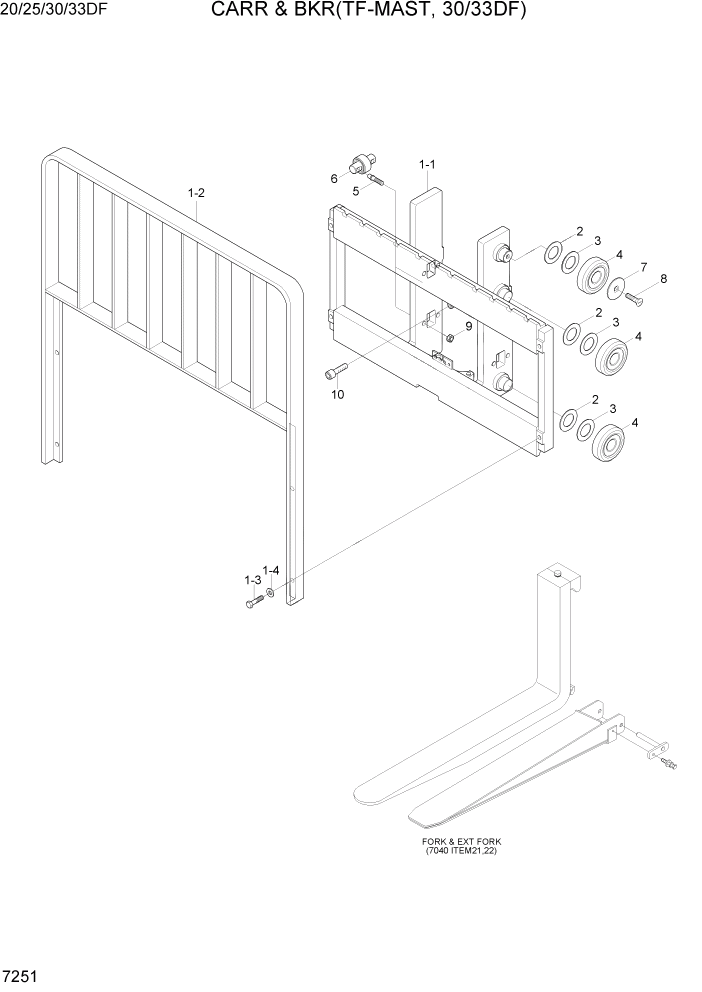

Запчасти Hyundai 20/25/30/33DF PAGE 7251 CARR & BKR(TF-MAST, 30/33DF) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

63HN-26010

CARR & BKR SUB ASSY

SINGLE,30DF

1шт.

1

69HN-35010

CARR & BKR SUB ASSY

SINGLE,33DF

1шт.

1

63HN-26020

CARR & BKR SUB ASSY

DOUBLE,30DF

1шт.

1

69HN-35020

CARR & BKR SUB ASSY

DOUBLE,33DF

1шт.

1

63HN-26030

CARR & BKR SUB ASSY

WIDE-S,30DF

1шт.

1

69HN-35030

CARR & BKR SUB ASSY

WIDE-S,33DF

1шт.

1-1

63HN-22011

CARRIAGE WA

SINGLE,30DF

1шт.

1-1

69HN-31011

CARRIAGE WA

SINGLE,33DF

1шт.

1-1

63HN-22021

CARRIAGE WA

DOUBLE,30DF

1шт.

1-1

69HN-31021

CARRIAGE WA

DOUBLE,33DF

1шт.

1-1

63HN-22031

CARRIAGE WA

WIDE-S,30DF

1шт.

1-1

69HN-31031

CARRIAGE WA

WIDE-S,33DF

1шт.

1-2

6AHN-24430

BACKREST WA

SINGLE

1шт.

1-2

6AHN-24630

BACKREST WA

DOUBLE

1шт.

1-2

6AHN-24730

BACKREST WA

WIDE-S

1шт.

1-3

S017-120356

BOLT-HEX

4шт.

1-4

S441-12000B

WASHER-HARDENED

4шт.

2

63HK-18100

LOAD R/BRG ASSY(117.5)

STD

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

UNDERSIZE

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

OVERSIZE

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

SMALLSIZE

6шт.

3

6600187900

SHIM(0.5T)

6шт.

4

6600188000

SHIM(1.0T)

6шт.

5

61F7-28010

BOLT-FLAT HD

2шт.

6

61F7-28021

WASHER-RETAINING

2шт.

7

61FE-28100

BEARING-SIDE ROLLER

4шт.

8

61FB-28040

SCREW-ADJUST

8шт.

9

S205-161006

NUT-HEX

8шт.

10

S109-120306

BOLT-SOCKET

1шт.
