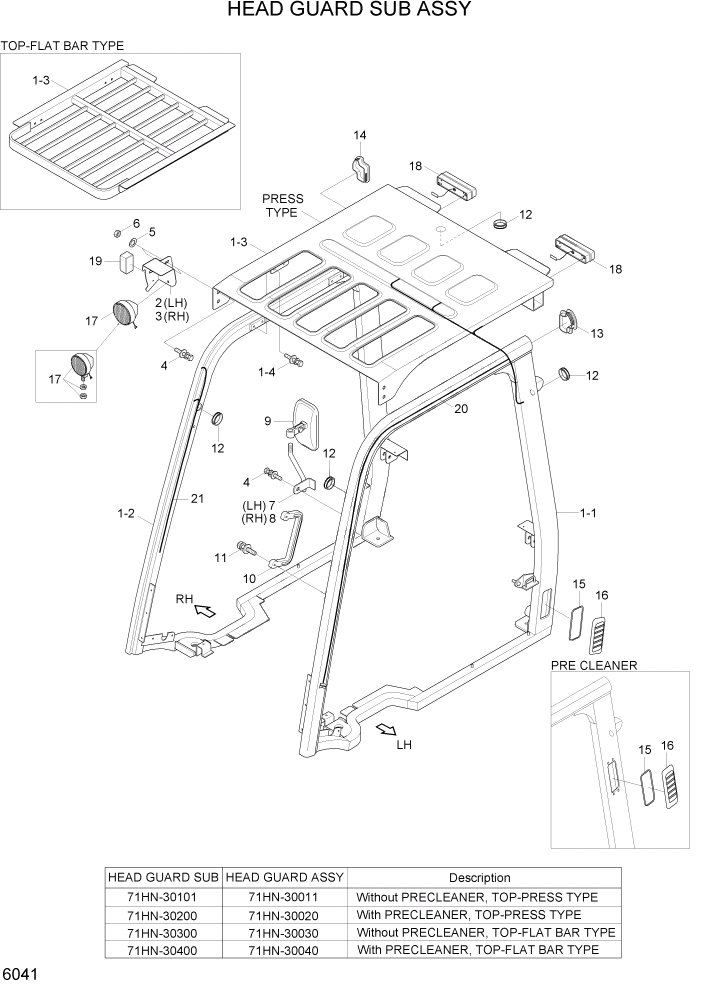

Запчасти Hyundai 20/25/30/33D-7E PAGE 6041 HEAD GUARD SUB ASSY СТРУКТУРА

*

71HN-30101

HEAD GUARD SUB ASSY

SEE ILLUST

1шт.

*

71HN-30200

HEAD GUARD SUB ASSY

SEE ILLUST

1шт.

*

71HN-30300

HEAD GUARD SUB ASSY

SEE ILLUST

1шт.

*

71HN-30400

HEAD GUARD SUB ASSY

SEE ILLUST

1шт.

1

71HN-30011

HEAD GUARD ASSY

SEE ILLUST

1шт.

1

71HN-30020

HEAD GUARD ASSY

SEE ILLUST

1шт.

1

71HN-30030

HEAD GUARD ASSY

SEE ILLUST

1шт.

1

71HN-30040

HEAD GUARD ASSY

SEE ILLUST

1шт.

1-1

71HN-31001

STAY WA-LH

W/O PRE CLEANER

1шт.

1-1

71HN-34000

STAY WA-LH

PRE CLEANER

1шт.

1-2

71HN-32001

STAY WA-RH

1шт.

1-3

71HN-33001

HEAD GUARD WA-TOP

TOP PRESS

1шт.

1-3

71HN-35000

HEAD GUARD WA-TOP

FLAT BAR

1шт.

1-4

S035-123036

BOLT-W/WASHER

8шт.

2

71HN-34100

BRACKET-LH,LAMP

1шт.

3

71HN-34200

BRACKET-RH,LAMP

1шт.

4

S035-082026

BOLT-W/WASHER

6шт.

5

S403-08200B

WASHER-PLAIN

4шт.

6

S295-080006

CAP NUT-DOMED

4шт.

7

71FG-30360

BRACKET-MIRROR,LH

1шт.

8

71FG-30370

BRACKET-MIRROR,RH

1шт.

9

71FG-30220

MIRROR-BACK

2шт.

10

71FH-30050

GRIP

1шт.

11

S132-082026

SCREW-W/WASHER

2шт.

12

S681-190400

GROMMET

4шт.

13

71HD-31030

CAP-RUBBER

1шт.

14

71HD-31040

CAP-RUBBER

1шт.

15

71HF-31240

PAD-RUBBER

1шт.

16

51FA-90040

COVER-AIR INTAKE

1шт.

17

F12840010

LAMP SUB ASSY-WORK

#0044

2шт.

17

F12840011

LAMP SUB ASSY-WORK

20D-7E #0045

2шт.

17

F12840010

LAMP SUB ASSY-WORK

#0070

2шт.

17

F12840011

LAMP SUB ASSY-WORK

33D-7E #0071

2шт.

18

21FH-77020

LAMP-COMBINATION

2шт.

19

21HL-10220

LAMP-FLASHER

2шт.

20

21HM-10040

HARNESS-HEADGUARD

1шт.

21

21HM-10050

HARNESS-SUPPORT

1шт.
