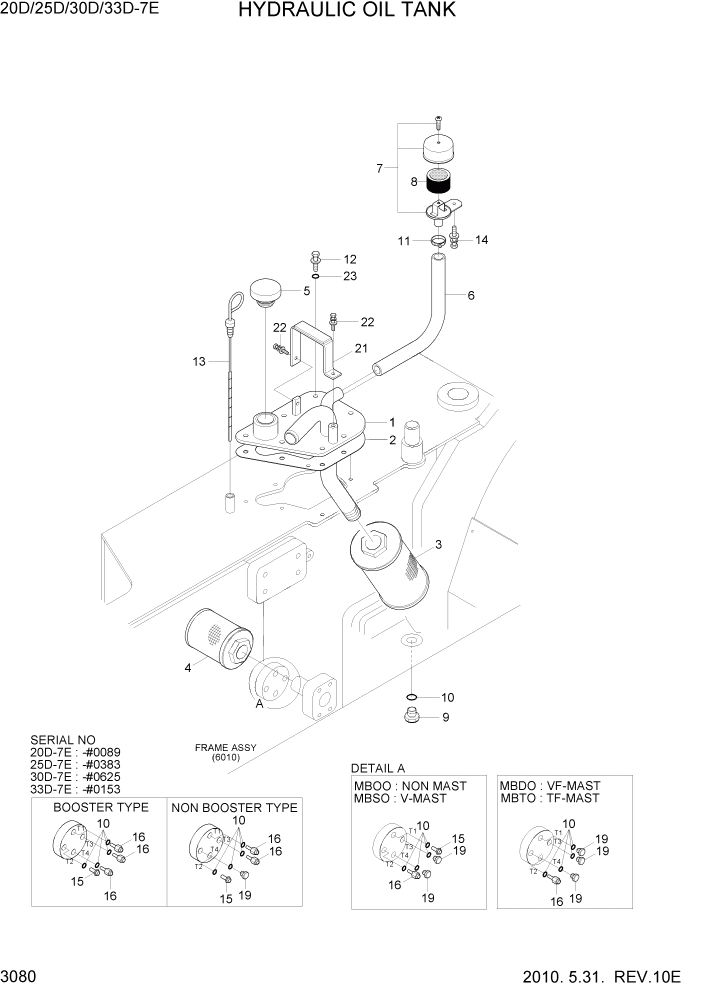

Запчасти Hyundai 20/25/30/33D-7E PAGE 3080 HYDRAULIC OIL TANK ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31HA-30014

FLANGE WA-HYD TANK

1шт.

2

31HA-30020

GASKET-HYD TANK

20D-7E #0089

1шт.

2

35HC-30020

GASKET

20D-7E #0090 - #0090

1шт.

2

31HA-30020

GASKET-HYD TANK

20D-7E #0091

1шт.

2

31HA-30020

GASKET-HYD TANK

25D-7E #0383

1шт.

2

35HC-30020

GASKET

25D-7E #0384 - #0392

1шт.

2

31HA-30020

GASKET-HYD TANK

25D-7E #0393

1шт.

2

31HA-30020

GASKET-HYD TANK

30D-7E #0625

1шт.

2

35HC-30020

GASKET

30D-7E #0626 - #0660

1шт.

2

31HA-30020

GASKET-HYD TANK

30D-7E #0661

1шт.

2

31HA-30020

GASKET-HYD TANK

33D-7E #0153

1шт.

2

35HC-30020

GASKET

33D-7E #0154 - #0171

1шт.

2

31HA-30020

GASKET-HYD TANK

33D-7E #0172

1шт.

3

F42650010

FILTER-RETURN

1шт.

4

FHC1007100

STRAINER-SUCTION

1шт.

5

31HA-30051

CAP-HYD TANK

1шт.

6

31FF-81620

HOSE-RUBBER

1шт.

7

31FV-30031

CAP-AIR BREATHER

1шт.

8

F23650200

FILTER-AIR BREATHER

1шт.

9

31HM-30020

PLUG-MAGNETIC

1шт.

10

S631-014004

O-RING

5шт.

11

S520-027000

CLAMP-HOSE,SCREW TYPE

2шт.

12

31HA-30041

BOLT-HEX,FLANGE

7шт.

13

31HA-30060

DIPSTICK-HYD TANK

1шт.

14

S035-061526

BOLT-W/WASHER

1шт.

15

31HA-20160

CONNECTOR-BULK HOSE

MB00, MBSO

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

BOOST, 20DE #0089

3шт.

16

31HA-20170

CONNECTOR-BULK HOSE

NON BOOSTER

2шт.

16

31HA-20170

CONNECTOR-BULK HOSE

20D-7E #0090

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

BOOST, 25DE #0383

3шт.

16

31HA-20170

CONNECTOR-BULK HOSE

25D-7E #0384

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

BOOST, 30DE #0625

3шт.

16

31HA-20170

CONNECTOR-BULK HOSE

30D-7E #0626

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

BOOST, 33DE #0153

3шт.

16

31HA-20170

CONNECTOR-BULK HOSE

33D-7E #0154

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

N/BOOST,20DE #0089

2шт.

16

31HA-20170

CONNECTOR-BULK HOSE

N/BOOST,20DE #0090

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

N/BOOST,25DE #0383

2шт.

16

31HA-20170

CONNECTOR-BULK HOSE

N/BOOST,25DE #0384

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

N/BOOST,30DE #0625

2шт.

16

31HA-20170

CONNECTOR-BULK HOSE

N/BOOST,30DE #0626

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

N/BOOST,33DE #0153

2шт.

16

31HA-20170

CONNECTOR-BULK HOSE

N/BOOST,33DE #0154

1шт.

19

P220-110103

PLUG-HEX

MBDO, MBTO

1шт.

19

P220-110103

PLUG-HEX

NON BOOSTER

2шт.

21

31HC-30021

CLAMP-BATTERY

1шт.

22

S035-082026

BOLT-W/WASHER

3шт.

23

S631-008004

O-RING

7шт.
