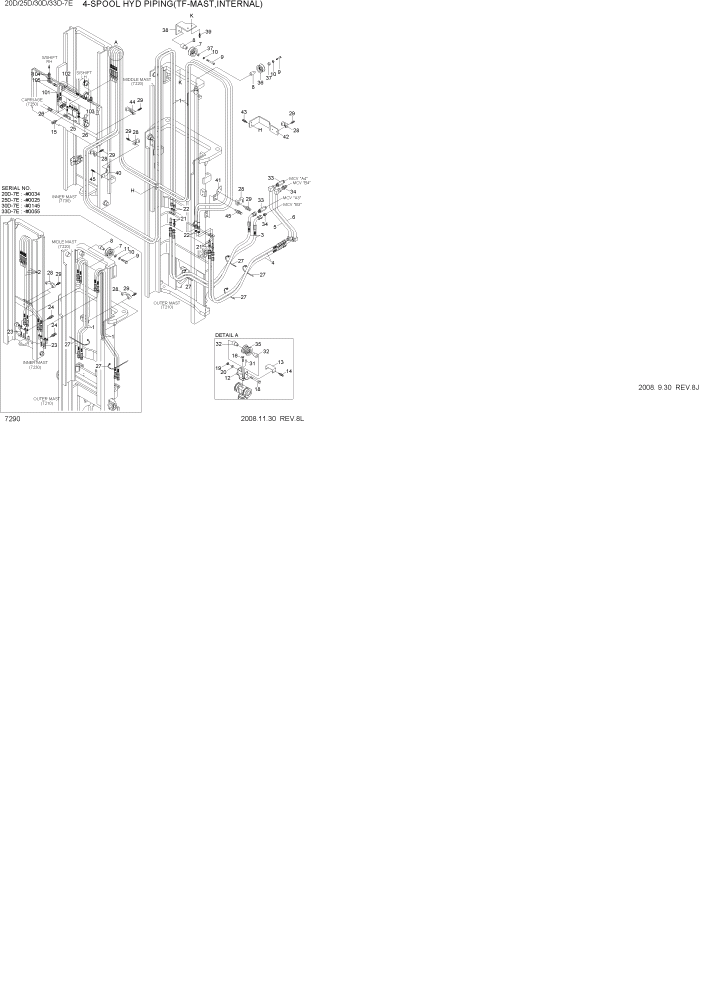

Запчасти Hyundai 20/25/30/33D-7E PAGE 7290 4-SPOOL HYD PIPING(TF-MAST,INTERNAL) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
P910-064043
HOSE ASSY-ORFS 0X0
TF370,20/25/30
4шт.
1
P910-064045
HOSE ASSY-ORFS 0X0
TF370,33D-7E
4шт.
1
P910-064047
HOSE ASSY-ORFS 0X0
TF400,20/25/30
4шт.
1
P910-064049
HOSE ASSY-ORFS 0X0
TF400,33D-7E
4шт.
1
P910-064051
HOSE ASSY-ORFS 0X0
TF430,20/25/30
4шт.
1
P910-064053
HOSE ASSY-ORFS 0X0
TF430,33D-7E
4шт.
1
P910-064055
HOSE ASSY-ORFS 0X0
TF450,20/25/30
4шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF450,33D-7E
4шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF470,20/25/30
4шт.
1
P910-064059
HOSE ASSY-ORFS 0X0
TF470,33D-7E
4шт.
1
P910-064061
HOSE ASSY-ORFS 0X0
TF500,20/25/30
4шт.
1
P910-064063
HOSE ASSY-ORFS 0X0
TF500,33D-7E
4шт.
1
P910-064069
HOSE ASSY-ORFS 0X0
TF550,20/25/30
4шт.
1
P910-064071
HOSE ASSY-ORFS 0X0
TF550,33D-7E
4шт.
1
P910-064077
HOSE ASSY-ORFS 0X0
TF600,20/25/30
4шт.
1
P910-064084
HOSE ASSY-ORFS 0X0
TF650,20/25/30
4шт.
1
P910-064086
HOSE ASSY-ORFS 0X0
TF650,33D-7E
4шт.
1
P910-064092
HOSE ASSY-ORFS 0X0
TF700,20/25/30
4шт.
1
P910-064094
HOSE ASSY-ORFS 0X0
TF700,33D-7E
4шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370
4шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400
4шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430
4шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450
4шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470
4шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500
4шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600
4шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650
4шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700
4шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
2шт.
4
P913-064025
HOSE ASSY-ORFS 0X0
2шт.
5
33HA-90500
PIPE WA
1шт.
6
33HA-90600
PIPE WA
1шт.
7
34FG-90201
PULLEY-HOSE
2шт.
9
S017-120606
BOLT-HEX
2шт.
12
33HA-90801
BRACKET WA
1шт.
1
P910-064043
HOSE ASSY-ORFS 0X0
TF370,20D-7E #0034
4шт.
1
P910-064087
HOSE ASSY-ORFS 0X0
TF370,20D-7E #0035
4шт.
1
P910-064043
HOSE ASSY-ORFS 0X0
TF370,25D-7E #0025
4шт.
1
P910-064087
HOSE ASSY-ORFS 0X0
TF370,25D-7E #0026
4шт.
1
P910-064043
HOSE ASSY-ORFS 0X0
TF370,30D-7E #0145
4шт.
1
P910-064087
HOSE ASSY-ORFS 0X0
TF370,30D-7E #0146
4шт.
1
P910-064045
HOSE ASSY-ORFS 0X0
TF370,33D-7E #0055
4шт.
1
P910-064089
HOSE ASSY-ORFS 0X0
TF370,33D-7E #0056
4шт.
1
P910-064047
HOSE ASSY-ORFS 0X0
TF400,20D-7E #0034
4шт.
1
P910-064093
HOSE ASSY-ORFS 0X0
TF400,20D-7E #0035
4шт.
1
P910-064047
HOSE ASSY-ORFS 0X0
TF400,25D-7E #0025
4шт.
1
P910-064093
HOSE ASSY-ORFS 0X0
TF400,25D-7E #0026
4шт.
1
P910-064047
HOSE ASSY-ORFS 0X0
TF400,30D-7E #0145
4шт.
1
P910-064093
HOSE ASSY-ORFS 0X0
TF400,30D-7E #0146
4шт.
1
P910-064049
HOSE ASSY-ORFS 0X0
TF400,33D-7E #0055
4шт.
1
P910-064095
HOSE ASSY-ORFS 0X0
TF400,33D-7E #0056
4шт.
1
P910-064051
HOSE ASSY-ORFS 0X0
TF430,20D-7E #0034
4шт.
1
P910-064099
HOSE ASSY-ORFS 0X0
TF430,20D-7E #0035
4шт.
1
P910-064051
HOSE ASSY-ORFS 0X0
TF430,25D-7E #0025
4шт.
1
P910-064099
HOSE ASSY-ORFS 0X0
TF430,25D-7E #0026
4шт.
1
P910-064051
HOSE ASSY-ORFS 0X0
TF430,30D-7E #0145
4шт.
1
P910-064099
HOSE ASSY-ORFS 0X0
TF430,30D-7E #0146
4шт.
1
P910-064053
HOSE ASSY-ORFS 0X0
TF430,33D-7E #0055
4шт.
1
P910-064101
HOSE ASSY-ORFS 0X0
TF430,33D-7E #0056
4шт.
1
P910-064055
HOSE ASSY-ORFS 0X0
TF450,20D-7E #0034
4шт.
1
P910-064104
HOSE ASSY-ORFS 0X0
TF450,20D-7E #0035
4шт.
1
P910-064055
HOSE ASSY-ORFS 0X0
TF450,25D-7E #0025
4шт.
1
P910-064104
HOSE ASSY-ORFS 0X0
TF450,25D-7E #0026
4шт.
1
P910-064055
HOSE ASSY-ORFS 0X0
TF450,30D-7E #0145
4шт.
1
P910-064104
HOSE ASSY-ORFS 0X0
TF450,30D-7E #0146
4шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF450,33D-7E #0055
4шт.
1
P910-064106
HOSE ASSY-ORFS 0X0
TF450,33D-7E #0056
4шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF470,20D-7E #0034
4шт.
1
P910-064108
HOSE ASSY-ORFS 0X0
TF470,20D-7E #0035
4шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF470,25D-7E #0025
4шт.
1
P910-064108
HOSE ASSY-ORFS 0X0
TF470,25D-7E #0026
4шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF470,30D-7E #0145
4шт.
1
P910-064108
HOSE ASSY-ORFS 0X0
TF470,30D-7E #0146
4шт.
1
P910-064059
HOSE ASSY-ORFS 0X0
TF470,33D-7E #0055
4шт.
1
P910-064110
HOSE ASSY-ORFS 0X0
TF470,33D-7E #0056
4шт.
1
P910-064061
HOSE ASSY-ORFS 0X0
TF500,20D-7E #0034
4шт.
1
P910-064114
HOSE ASSY-ORFS 0X0
TF500,20D-7E #0035
4шт.
1
P910-064061
HOSE ASSY-ORFS 0X0
TF500,25D-7E #0025
4шт.
1
P910-064114
HOSE ASSY-ORFS 0X0
TF500,25D-7E #0026
4шт.
1
P910-064061
HOSE ASSY-ORFS 0X0
TF500,30D-7E #0145
4шт.
1
P910-064114
HOSE ASSY-ORFS 0X0
TF500,30D-7E #0146
4шт.
1
P910-064063
HOSE ASSY-ORFS 0X0
TF500,33D-7E #0055
4шт.
1
P910-064116
HOSE ASSY-ORFS 0X0
TF500,33D-7E #0056
4шт.
1
P910-064069
HOSE ASSY-ORFS 0X0
TF550,20D-7E #0034
4шт.
1
P910-064125
HOSE ASSY-ORFS 0X0
TF550,20D-7E #0035
4шт.
1
P910-064069
HOSE ASSY-ORFS 0X0
TF550,25D-7E #0025
4шт.
1
P910-064125
HOSE ASSY-ORFS 0X0
TF550,25D-7E #0026
4шт.
1
P910-064069
HOSE ASSY-ORFS 0X0
TF550,30D-7E #0145
4шт.
1
P910-064125
HOSE ASSY-ORFS 0X0
TF550,30D-7E #0146
4шт.
1
P910-064071
HOSE ASSY-ORFS 0X0
TF550,33D-7E #0055
4шт.
1
P910-064127
HOSE ASSY-ORFS 0X0
TF550,33D-7E #0056
4шт.
1
P910-064077
HOSE ASSY-ORFS 0X0
TF600,20D-7E #0034
4шт.
1
P910-064137
HOSE ASSY-ORFS 0X0
TF600,20D-7E #0035
4шт.
1
P910-064077
HOSE ASSY-ORFS 0X0
TF600,25D-7E #0025
4шт.
1
P910-064137
HOSE ASSY-ORFS 0X0
TF600,25D-7E #0026
4шт.
1
P910-064077
HOSE ASSY-ORFS 0X0
TF600,30D-7E #0145
4шт.
1
P910-064137
HOSE ASSY-ORFS 0X0
TF600,30D-7E #0146
4шт.
1
P910-064139
HOSE ASSY-ORFS 0X0
TF600,33D-7E #0056
4шт.
1
P910-064084
HOSE ASSY-ORFS 0X0
TF650,20D-7E #0034
4шт.
1
P910-064084
HOSE ASSY-ORFS 0X0
TF650,25D-7E #0025
4шт.
1
P910-064084
HOSE ASSY-ORFS 0X0
TF650,30D-7E #0145
4шт.
1
P910-064086
HOSE ASSY-ORFS 0X0
TF650,33D-7E #0055
4шт.
1
P910-064092
HOSE ASSY-ORFS 0X0
TF700,20D-7E #0034
4шт.
1
P910-064092
HOSE ASSY-ORFS 0X0
TF700,25D-7E #0025
4шт.
1
P910-064092
HOSE ASSY-ORFS 0X0
TF700,30D-7E #0145
4шт.
1
P910-064094
HOSE ASSY-ORFS 0X0
TF700,33D-7E #0055
4шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370,20D-7E #0034
4шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370,25D-7E #0025
4шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370,30D-7E #0145
4шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370,33D-7E #0055
4шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400,20D-7E #0034
4шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400,25D-7E #0025
4шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400,30D-7E #0145
4шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400,33D-7E #0055
4шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430,20D-7E #0034
4шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430,25D-7E #0025
4шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430,30D-7E #0145
4шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430,33D-7E #0055
4шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450,20D-7E #0034
4шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450,25D-7E #0025
4шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450,30D-7E #0145
4шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450,33D-7E #0055
4шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470,20D-7E #0034
4шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470,25D-7E #0025
4шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470,30D-7E #0145
4шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470,33D-7E #0055
4шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500,20D-7E #0034
4шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500,25D-7E #0025
4шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500,30D-7E #0145
4шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500,33D-7E #0055
4шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600,20D-7E #0034
4шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600,25D-7E #0025
4шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600,30D-7E #0145
4шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600,33D-7E #0055
4шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650,20D-7E #0034
4шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650,25D-7E #0025
4шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650,30D-7E #0145
4шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650,33D-7E #0055
4шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700,20D-7E #0034
4шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700,25D-7E #0025
4шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700,30D-7E #0145
4шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700,33D-7E #0055
4шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
20D-7E #0036
2шт.
3
P933-064032
HOSE ASSY-ORFS 0X90
20D-7E #0037
2шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
25D-7E #0041
2шт.
3
P933-064032
HOSE ASSY-ORFS 0X90
25D-7E #0042
2шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
30D-7E #0145
2шт.
3
P933-064032
HOSE ASSY-ORFS 0X90
30D-7E #0146
2шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
33D-7E #0055
2шт.
3
P933-064032
HOSE ASSY-ORFS 0X90
33D-7E #0056
2шт.
4
P913-064025
HOSE ASSY-ORFS 0X90
20D-7E #0036
2шт.
4
P913-064022
HOSE ASSY-ORFS 0X90
20D-7E #0037
2шт.
4
P913-064025
HOSE ASSY-ORFS 0X90
25D-7E #0041
2шт.
4
P913-064022
HOSE ASSY-ORFS 0X90
25D-7E #0042
2шт.
4
P913-064025
HOSE ASSY-ORFS 0X90
30D-7E #0145
2шт.
4
P913-064022
HOSE ASSY-ORFS 0X90
30D-7E #0146
2шт.
4
P913-064025
HOSE ASSY-ORFS 0X90
33D-7E #0055
2шт.
4
P913-064022
HOSE ASSY-ORFS 0X90
33D-7E #0056
2шт.
5
33HA-90500
PIPE WA
1шт.
6
33HA-90600
PIPE WA
1шт.
7
34FG-90201
PULLEY-HOSE
20D-7E #0034
2шт.
7
34FG-90201
PULLEY-HOSE
20D-7E #0035
1шт.
7
34FG-90201
PULLEY-HOSE
25D-7E #0025
2шт.
7
34FG-90201
PULLEY-HOSE
25D-7E #0026
1шт.
7
34FG-90201
PULLEY-HOSE
30D-7E #0145
2шт.
7
34FG-90201
PULLEY-HOSE
30D-7E #0146
1шт.
7
34FG-90201
PULLEY-HOSE
33D-7E #0055
2шт.
7
34FG-90201
PULLEY-HOSE
33D-7E #0056
1шт.
9
S017-120606
BOLT-HEX
20D-7E #0034
2шт.
9
S017-120606
BOLT-HEX
25D-7E #0025
2шт.
9
S017-120606
BOLT-HEX
30D-7E #0145
2шт.
9
S017-120606
BOLT-HEX
33D-7E #0055
2шт.
12
33HA-90801
BRACKET WA-PULLEY
1шт.
13
34FG-90270
COVER
1шт.
15
S037-102526
BOLT-W/WASHER
4шт.
18
S017-101406
BOLT-HEX
1шт.
19
S275-100006
NUT-SELF LOCKING
1шт.
23
34FG-90210
PIPE WA
20D-7E #0034
2шт.
23
34FG-90210
PIPE WA
25D-7E #0025
2шт.
23
34FG-90210
PIPE WA
30D-7E #0145
2шт.
23
34FG-90210
PIPE WA
33D-7E #0055
2шт.
25
34FK-90401
BLOCK WA
2шт.
26
X710-100103
CAP
4шт.
27
S552-102370
CLAMP-BAND
6шт.
29
S035-063526
BOLT-W/WASHER
20D-7E #0034
8шт.
29
S035-063526
BOLT-W/WASHER
20D-7E #0035
10шт.
29
S035-063526
BOLT-W/WASHER
25D-7E #0025
8шт.
29
S035-063526
BOLT-W/WASHER
25D-7E #0026
10шт.
29
S035-063526
BOLT-W/WASHER
30D-7E #0145
8шт.
29
S035-063526
BOLT-W/WASHER
30D-7E #0146
10шт.
29
S035-063526
BOLT-W/WASHER
33D-7E #0055
8шт.
29
S035-063526
BOLT-W/WASHER
33D-7E #0056
10шт.
32
34FG-90351
PIN-HOSE PULLEY
2шт.
33
31FQ-10070
CONNECTOR
2шт.
34
31N5-30050
CONNECTOR
2шт.
35
33HD-90370
PULLEY-HOSE
1шт.
36
33HN-80100
PULLEY ASSY-HOSE
20D-7E #0035
1шт.
36
33HN-80100
PULLEY ASSY-HOSE
25D-7E #0026
1шт.
36
33HN-80100
PULLEY ASSY-HOSE
30D-7E #0146
1шт.
36
33HN-80100
PULLEY ASSY-HOSE
33D-7E #0056
1шт.
38
33HN-90311
BRACKET-PULLEY
20D-7E #0035
1шт.
38
33HN-90311
BRACKET-PULLEY
25D-7E #0026
1шт.
38
33HN-90311
BRACKET-PULLEY
30D-7E #0146
1шт.
38
33HN-90311
BRACKET-PULLEY
33D-7E #0056
1шт.
39
S035-083536
BOLT-W/WASHER
20D-7E #0035
2шт.
39
S035-083536
BOLT-W/WASHER
25D-7E #0026
2шт.
39
S035-083536
BOLT-W/WASHER
30D-7E #0146
2шт.
39
S035-083536
BOLT-W/WASHER
33D-7E #0056
2шт.
40
33HN-90901
BRACKET
20D-7E #0035
1шт.
40
33HN-90901
BRACKET
25D-7E #0026
1шт.
40
33HN-90901
BRACKET
30D-7E #0146
1шт.
40
33HN-90901
BRACKET
33D-7E #0056
1шт.
41
33HN-90700
BRACKET
20D-7E #0035
1шт.
41
33HN-90700
BRACKET
25D-7E #0026
1шт.
41
33HN-90700
BRACKET
30D-7E #0146
1шт.
41
33HN-90700
BRACKET
33D-7E #0056
1шт.
42
33HN-90811
BRACKET
20D-7E #0035
1шт.
42
33HN-90811
BRACKET
25D-7E #0026
1шт.
42
33HN-90811
BRACKET
30D-7E #0146
1шт.
42
33HN-90811
BRACKET
33D-7E #0056
1шт.
43
S035-083036
BOLT-W/WASHER
20D-7E #0035
2шт.
43
S035-083036
BOLT-W/WASHER
25D-7E #0026
2шт.
43
S035-083036
BOLT-W/WASHER
30D-7E #0146
2шт.
43
S035-083036
BOLT-W/WASHER
33D-7E #0056
2шт.
44
34FG-90460
CLAMP-HOSE
20D-7E #0035
1шт.
44
34FG-90460
CLAMP-HOSE
25D-7E #0026
1шт.
44
34FG-90460
CLAMP-HOSE
30D-7E #0146
1шт.
44
34FG-90460
CLAMP-HOSE
33D-7E #0056
1шт.
101
P933-064007
HOSE ASSY-ORFS 0X90
20/25D-7E
1шт.
101
P933-064006
HOSE ASSY-ORFS 0X90
30/33D-7E
1шт.
102
P933-064011
HOSE ASSY-ORFS 0X90
1шт.
103
31FG-80400
ELBOW-90
1шт.
104
X500-310002
CONNECTOR-ORFS
1шт.
105
X850-525200
ELBOW-90,SWIVEL,ORFS
1шт.
Выбрано товаров: 273
