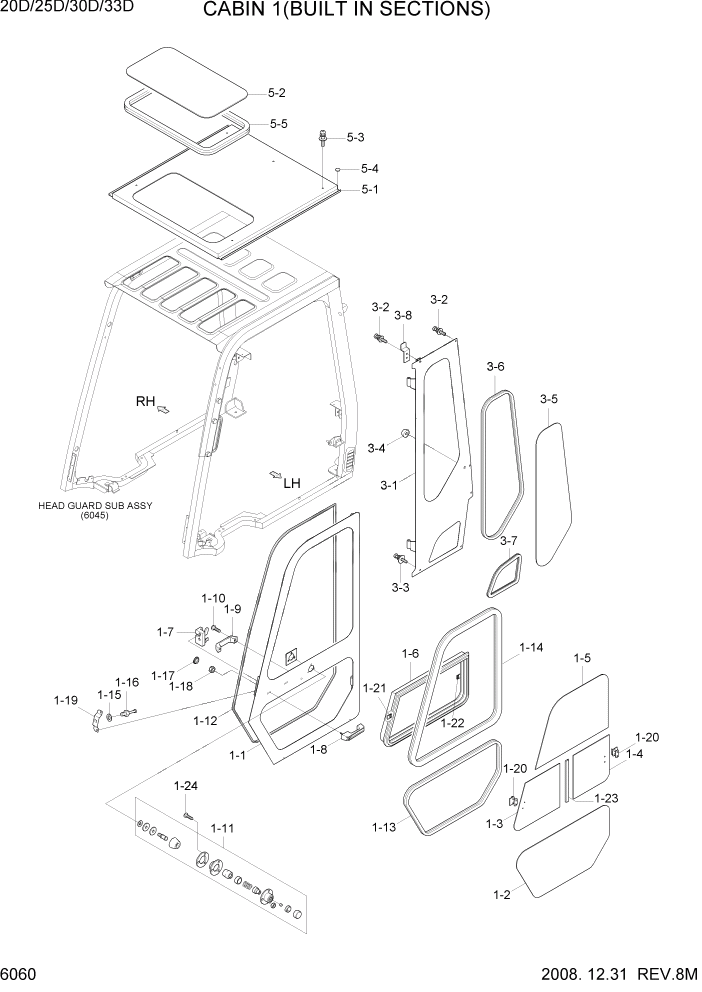

Запчасти Hyundai 20/25/30/33D-7 PAGE 6060 CABIN 1(BUILT IN SECTIONS) СТРУКТУРА

*

79HA-50010

CABIN ASSY

20D, OPT #0058 - #0192

1шт.

*

79HA-50011

CABIN ASSY

20D, OPT #0193

1шт.

*

79HA-50010

CABIN ASSY

25D, OPT #0266 - #0914

1шт.

*

79HA-50011

CABIN ASSY

25D, OPT #0915

1шт.

*

79HA-50010

CABIN ASSY

30D, OPT #0340 - #1404

1шт.

*

79HA-50011

CABIN ASSY

30D, OPT #1405

1шт.

*

79HA-50010

CABIN ASSY

33D, OPT #0061 - #0191

1шт.

*

79HA-50011

CABIN ASSY

33D, OPT #0192

1шт.

1

79HA-51000

DOOR ASSY-LH

20D #0192

1шт.

1

79HA-51000

DOOR ASSY-LH

1шт.

1

79HA-51001

DOOR ASSY-LH

20D #0193

1шт.

1

79HA-51000

DOOR ASSY-LH

25D #0914

1шт.

1

79HA-51001

DOOR ASSY-LH

25D #0915

1шт.

1

79HA-51100

DOOR ASSY-RH

1шт.

1

79HA-51000

DOOR ASSY-LH

30D #1404

1шт.

1

79HA-51001

DOOR ASSY-LH

30D #1405

1шт.

1

79HA-51000

DOOR ASSY-LH

33D #0191

1шт.

1

79HA-51001

DOOR ASSY-LH

33D #0192

1шт.

1

79HA-51100

DOOR ASSY-RH

20D #0192

1шт.

1

79HA-51101

DOOR ASSY-RH

20D #0193

1шт.

1

79HA-51100

DOOR ASSY-RH

25D #0914

1шт.

1

79HA-51101

DOOR ASSY-RH

25D #0915

1шт.

1

79HA-51100

DOOR ASSY-RH

30D #1404

1шт.

1

79HA-51101

DOOR ASSY-RH

30D #1405

1шт.

1

79HA-51100

DOOR ASSY-RH

33D #0191

1шт.

1

79HA-51101

DOOR ASSY-RH

33D #0192

1шт.

1-1

79HA-51020

DOOR WA-LH

20D #0192

1шт.

1-1

79HA-51021

DOOR WA-LH

20D #0193

1шт.

1-1

79HA-51020

DOOR WA-LH

25D #0914

1шт.

1-1

79HA-51021

DOOR WA-LH

25D #0915

1шт.

1-1

79HA-51020

DOOR WA-LH

30D #1404

1шт.

1-1

79HA-51021

DOOR WA-LH

30D #1405

1шт.

1-1

79HA-51020

DOOR WA-LH

33D #0191

1шт.

1-1

79HA-51021

DOOR WA-LH

33D #0192

1шт.

1-1

79HA-51110

DOOR WA-RH

20D #0192

1шт.

1-1

79HA-51111

DOOR WA-RH

20D #0193

1шт.

1-1

79HA-51110

DOOR WA-RH

25D #0914

1шт.

1-1

79HA-51111

DOOR WA-RH

25D #0915

1шт.

1-1

79HA-51110

DOOR WA-RH

30D #1404

1шт.

1-1

79HA-51111

DOOR WA-RH

30D #1405

1шт.

1-1

79HA-51110

DOOR WA-RH

33D #0191

1шт.

1-1

79HA-51020

DOOR WA-LH

1шт.

1-1

79HA-51111

DOOR WA-RH

33D #0192

1шт.

1-2

79HA-51300

GLASS(1)

1шт.

1-3

79HA-51310

GLASS SASH(2)

20D #0192

1шт.

1-3

79HA-51311

GLASS SASH(2)

20D #0193

1шт.

1-3

79HA-51310

GLASS SASH(2)

25D #0914

1шт.

1-3

79HA-51311

GLASS SASH(2)

25D #0915

1шт.

1-3

79HA-51310

GLASS SASH(2)

30D #1404

1шт.

1-3

79HA-51311

GLASS SASH(2)

30D #1405

1шт.

1-3

79HA-51310

GLASS SASH(2)

33D #0191

1шт.

1-3

79HA-51311

GLASS SASH(2)

33D #0192

1шт.

1-4

79HA-51320

GLASS SASH(3)

20D #0192

1шт.

1-4

79HA-51321

GLASS SASH(3)

20D #0193

1шт.

1-4

79HA-51320

GLASS SASH(3)

25D #0914

1шт.

1-4

79HA-51321

GLASS SASH(3)

25D #0915

1шт.

1-4

79HA-51320

GLASS SASH(3)

30D #1404

1шт.

1-4

79HA-51321

GLASS SASH(3)

30D #1405

1шт.

1-4

79HA-51320

GLASS SASH(3)

33D #0191

1шт.

1-4

79HA-51321

GLASS SASH(3)

33D #0192

1шт.

1-5

79HA-51330

GLASS(4)

20D #0192

1шт.

1-5

79HA-51331

GLASS(4)

20D #0193

1шт.

1-5

79HA-51330

GLASS(4)

25D #0914

1шт.

1-5

79HA-51331

GLASS(4)

25D #0915

1шт.

1-5

79HA-51330

GLASS(4)

30D #1404

1шт.

1-5

79HA-51331

GLASS(4)

30D #1405

1шт.

1-5

79HA-51330

GLASS(4)

33D #0191

1шт.

1-5

79HA-51331

GLASS(4)

33D #0192

1шт.

1-6

79HA-51340

SASH-LH

20D #0192

1шт.

1-6

79HA-51341

SASH-LH

20D #0193

1шт.

1-6

79HA-51340

SASH-LH

25D #0914

1шт.

1-6

79HA-51341

SASH-LH

25D #0915

1шт.

1-6

79HA-51340

SASH-LH

30D #1404

1шт.

1-6

79HA-51341

SASH-LH

30D #1405

1шт.

1-6

79HA-51340

SASH-LH

33D #0191

1шт.

1-6

79HA-51341

SASH-LH

33D #0192

1шт.

1-6

79HA-51350

SASH-RH

20D #0192

1шт.

1-6

79HA-51351

SASH-RH

20D #0193

1шт.

1-6

79HA-51350

SASH-RH

1шт.

1-6

79HA-51350

SASH-RH

25D #0914

1шт.

1-6

79HA-51351

SASH-RH

25D #0915

1шт.

1-6

79HA-51350

SASH-RH

30D #1404

1шт.

1-6

79HA-51351

SASH-RH

30D #1405

1шт.

1-6

79HA-51350

SASH-RH

33D #0191

1шт.

1-6

79HA-51351

SASH-RH

33D #0192

1шт.

1-7

72FA-12100

DOOR LATCH-LH

1шт.

1-7

72FA-12110

DOOR LATCH-RH

1шт.

1-8

71EH-13140

OUT HANDLE ASSY

20D #0192

1шт.

1-8

79HA-51360

HANDLE ASSY

20D #0193

1шт.

1-8

71EH-13140

OUT HANDLE ASSY

25D #0914

1шт.

1-8

79HA-51360

HANDLE ASSY

25D #0915

1шт.

1-8

71EH-13140

OUT HANDLE ASSY

30D #1404

1шт.

1-8

79HA-51360

HANDLE ASSY

30D #1405

1шт.

1-8

71EH-13140

OUT HANDLE ASSY

33D #0191

1шт.

1-8

79HA-51360

HANDLE ASSY

33D #0192

1шт.

1-9

79HA-51390

INR HANDLE

1шт.

1-1

S161-060206

SCREW-CROSS R/ROUND

5шт.

1-11

75D1-05470

CATCH SET

1шт.

1-12

S771-042000

WEATHER STRIP

1шт.

1-13

S781-120001

SEAL-GLASS

1шт.

1-14

S781-127001

SEAL-GLASS

1шт.

1-15

S403-121002

WASHER-PLAIN

1шт.

1-16

71FE-51230

STRIKER

1шт.

1-17

S681-360400

GROMMET

2шт.

1-18

S201-061002

NUT-HEX

4шт.

1-19

79HA-51410

PLATE

20D #0192

1шт.

1-19

79HA-51411

PLATE

20D #0193

1шт.

1-19

79HA-51410

PLATE

25D #0914

1шт.

1-19

79HA-51411

PLATE

25D #0915

1шт.

1-19

79HA-51410

PLATE

30D #1404

1шт.

1-19

79HA-51411

PLATE

30D #1405

1шт.

1-19

79HA-51410

PLATE

33D #0191

1шт.

1-19

79HA-51411

PLATE

33D #0192

1шт.

1-2

74UR-50040

WIN LOCK(FINETOP)

2шт.

1-21

SK171-1140

WIN LOCK(FINE TOP)

IN

1шт.

1-22

SK171-1150

WIN LOCK(FINE TOP)

OUT

1шт.

1-23

79HA-51450

SASH-BAR

20D #0192

1шт.

1-23

79HA-51451

SASH-BAR

20D #0193

1шт.

1-23

79HA-51450

SASH-BAR

25D #0914

1шт.

1-23

79HA-51451

SASH-BAR

20D #0915

1шт.

1-23

79HA-51450

SASH-BAR

30D #1404

1шт.

1-23

79HA-51451

SASH-BAR

30D #1405

1шт.

1-23

79HA-51450

SASH-BAR

33D #0191

1шт.

1-23

79HA-51451

SASH-BAR

33D #0192

1шт.

1-24

S161-050206

SCREW-CROSS R/ROUND

20D #0193

1шт.

1-24

S161-050206

SCREW-CROSS R/ROUND

25D #0915

1шт.

1-24

S161-050206

SCREW-CROSS R/ROUND

30D #1405

1шт.

1-24

S161-050206

SCREW-CROSS R/ROUND

33D #0192

1шт.

3

79HA-52000

SIDE PLATE ASSY-LH

20D #0192

1шт.

3

79HA-52001

SIDE PLATE ASSY-LH

20D #0193

1шт.

3

79HA-52000

SIDE PLATE ASSY-LH

25D #0914

1шт.

3

79HA-52001

SIDE PLATE ASSY-LH

25D #0915

1шт.

3

79HA-52000

SIDE PLATE ASSY-LH

30D #1404

1шт.

3

79HA-52001

SIDE PLATE ASSY-LH

30D #1405

1шт.

3

79HA-52000

SIDE PLATE ASSY-LH

33D #0191

1шт.

3

79HA-52001

SIDE PLATE ASSY-LH

33D #0192

1шт.

3

79HA-52000

SIDE PLATE ASSY-LH

1шт.

3

79HA-52200

SIDE PLATE ASSY-RH

20D #0192

1шт.

3

79HA-52200

SIDE PLATE ASSY-RH

1шт.

3

79HA-52201

SIDE PLATE ASSY-RH

20D #0193

1шт.

3

79HA-52200

SIDE PLATE ASSY-RH

25D #0914

1шт.

3

79HA-52201

SIDE PLATE ASSY-RH

25D #0915

1шт.

3

79HA-52200

SIDE PLATE ASSY-RH

30D #1404

1шт.

3

79HA-52201

SIDE PLATE ASSY-RH

30D #1405

1шт.

3

79HA-52200

SIDE PLATE ASSY-RH

33D #0191

1шт.

3

79HA-52201

SIDE PLATE ASSY-RH

33D #0192

1шт.

3-1

79HA-52011

SIDE PLATE WA-LH

1шт.

3-1

79HA-52211

SIDE PLATE WA-RH

1шт.

3-2

S035-082026

BOLT-W/WASHER

5шт.

3-3

S035-084026

BOLT-W/WASHER

2шт.

3-4

75D1-05470

CATCH SET

1шт.

3-5

79HA-52310

GLASS(5)

1шт.

3-6

S781-122001

SEAL

1шт.

3-7

S771-016000

WEATHER STRIP

LH ONLY

1шт.

3-8

79HA-52050

PLATE

1шт.

5

79HA-53000

ROOF PLATE ASSY

20D #0192

1шт.

5

79HA-53001

ROOF PLATE ASSY

20D #0193

1шт.

5

79HA-53000

ROOF PLATE ASSY

25D #0914

1шт.

5

79HA-53001

ROOF PLATE ASSY

25D #0915

1шт.

5

79HA-53000

ROOF PLATE ASSY

30D #1404

1шт.

5

79HA-53001

ROOF PLATE ASSY

30D #1405

1шт.

5

79HA-53000

ROOF PLATE ASSY

33D #0191

1шт.

5

79HA-53001

ROOF PLATE ASSY

33D #0192

1шт.

5

79HA-53000

ROOF PLATE ASSY

1шт.

5-1

79HA-53101

PLATE-ROOF

1шт.

5-2

79HA-53110

GLASS-ROOF

1шт.

5-3

S035-082036

BOLT-W/WASHER

5шт.

5-4

S681-120400

GROMMET

2шт.

5-5

S781-123001

SEAL-GLASS

1шт.
