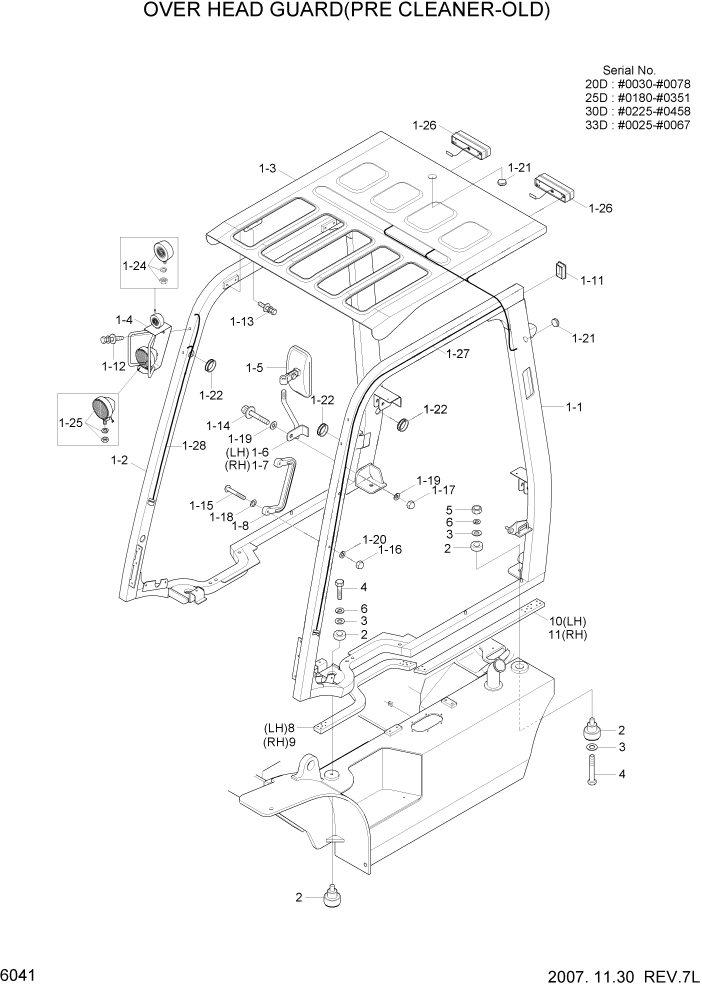

Запчасти Hyundai 20/25/30/33D-7 PAGE 6041 OVER HEAD GUARD(PRECLEANER-OLD) СТРУКТУРА

*

@

OVER HEAD GUARD

NOT #0030 - #0078

1шт.

*

@

OVER HEAD GUARD

NOT #0180 - #0351

1шт.

*

@

OVER HEAD GUARD

NOT #0225 - #0458

1шт.

*

@

OVER HEAD GUARD

NOT #0025 - #0067

1шт.

1

71HF-30020

HEAD GUARD SUB ASSY

1шт.

1-1

71HF-31000

STAY WA-LH

1шт.

1-2

71HA-32001

STAY WA-RH

1шт.

1-3

71HA-33003

OHG WA-TOP

1шт.

1-4

71HA-34000

PROTECTOR-LAMP

2шт.

1-5

71FG-30220

MIRROR-BACK

2шт.

1-6

71FG-30360

BRACKET-MIRROR,LH

1шт.

1-7

71FG-30370

BRACKET-MIRROR,RH

1шт.

1-8

71FH-30050

GRIP

1шт.

1-11

71FY-31031

CAP-RUBBER

2шт.

1-12

S035-082022

BOLT-W/WASHER

4шт.

1-13

S035-123036

BOLT-W/WASHER

8шт.

1-14

S037-106056

BOLT-W/WASHER

2шт.

1-15

S179-080656

SCREW-SOCKET RD HD

2шт.

1-16

S295-080006

NUT-DOMED CAP

2шт.

1-17

S295-100006

NUT-DOMED CAP

2шт.

1-18

S403-08200B

WASHER-PLAIN

2шт.

1-19

S403-10200B

WASHER-PLAIN

4шт.

1-2

S411-080006

WASHER-SPRING

2шт.

1-21

S681-190400

GROMMET

2шт.

1-22

S880-132040

GROMMET

2шт.

1-24

F12840020

LAMP-FLASHER

2e-06 #0030

2шт.

1-24

F12840020

LAMP-FLASHER

2.5e-06 #0180

2шт.

1-24

F12840020

LAMP-FLASHER

3e-06 #0225

2шт.

1-24

F12840020

LAMP-FLASHER

3.3e-06 #0025

2шт.

1-25

F12840010

LAMP SUB ASSY-WORK

2e-06 #0030

2шт.

1-25

F12840010

LAMP SUB ASSY-WORK

2.5e-06 #0180

2шт.

1-25

F12840010

LAMP SUB ASSY-WORK

3e-06 #0225

2шт.

1-25

F12840010

LAMP SUB ASSY-WORK

3.3e-06 #0025

2шт.

1-26

21FH-77020

LAMP-COMBINATION

2e-06 #0030

2шт.

1-26

21FH-77020

LAMP-COMBINATION

2.5e-06 #0180

2шт.

1-26

21FH-77020

LAMP-COMBINATION

3e-06 #0225

2шт.

1-26

21FH-77020

LAMP-COMBINATION

3.3e-06 #0025

2шт.

1-27

21HA-10041

HARNESS-HEADGUARD

2e-06 #0030

1шт.

1-27

21HA-10041

HARNESS-HEADGUARD

2.5e-06 #0180

1шт.

1-27

21HA-10041

HARNESS-HEADGUARD

3e-06 #0225

1шт.

1-27

21HA-10041

HARNESS-HEADGUARD

3.3e-06 #0025

1шт.

1-28

21FG-10360

HARNESS(R/L)-SUPPORT

2e-06 #0030

1шт.

1-28

21FG-10360

HARNESS(R/L)-SUPPORT

2.5e-06 #0180

1шт.

1-28

21FG-10360

HARNESS(R/L)-SUPPORT

3e-06 #0225

1шт.

1-28

21FG-10360

HARNESS(R/L)-SUPPORT

3.3e-06 #0025

1шт.

2

11S1-3016

MOUNT-VIBRATION

4шт.

3

51FA-90100-DA

WASHER-MOUNT

6шт.

4

S017-120906

BOLT-HEX

4шт.

5

S275-120006

NUT-SELF LOCKING

2шт.

6

S411-120006

WASHER-SPRING

4шт.

8

71HA-30061

SPONGE-STEP,LH

1шт.

9

71HA-30071

SPONGE-STEP,RH

1шт.

10

71HA-30081

SPONGE-LH

1шт.

11

71HA-30091

SPONGE-RH

1шт.
